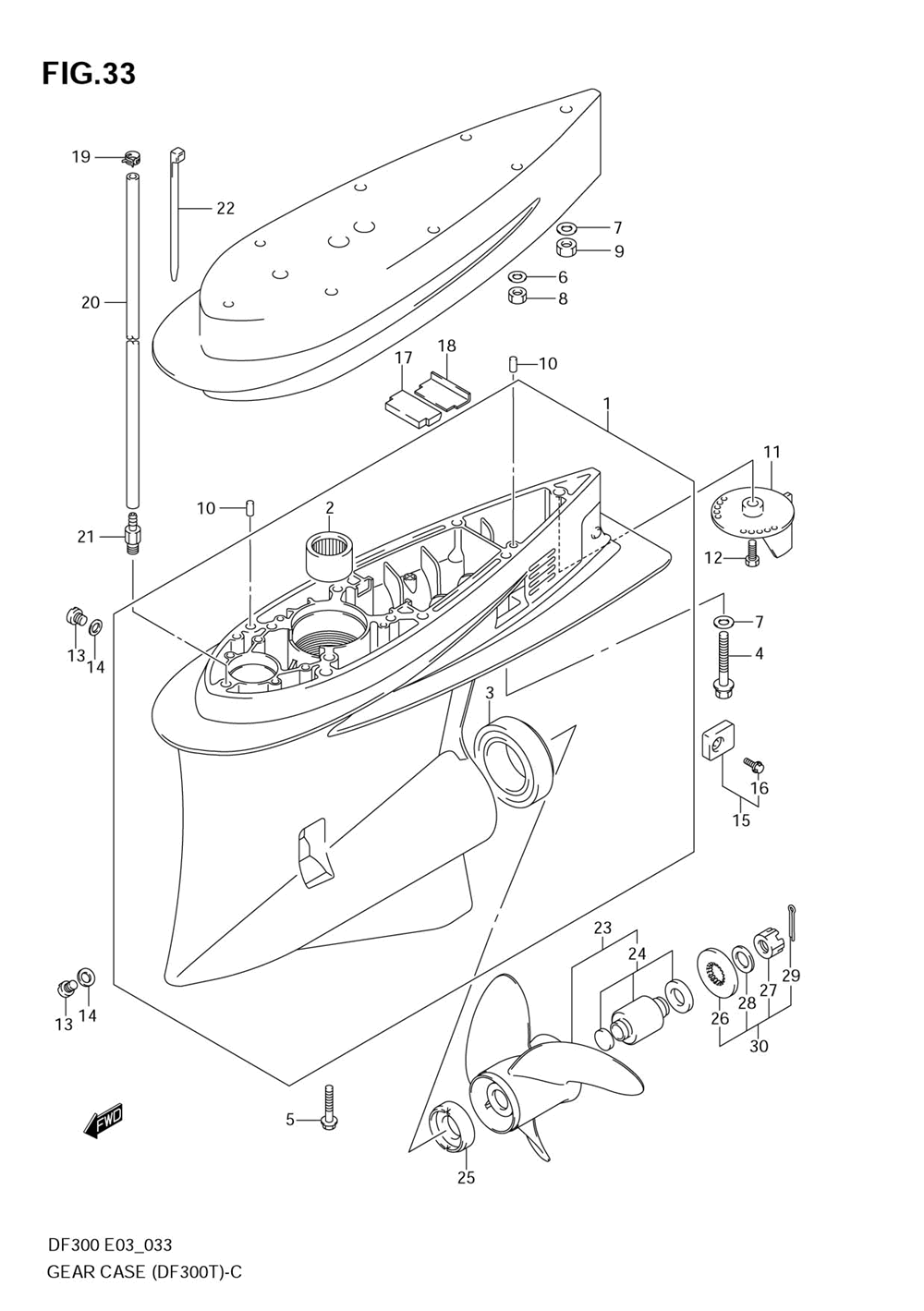

Картер (DF300T)

Suzuki Marine DF300
Suzuki Marine
#oem кодцена
1
55110-98J01-0EP
Case Comp, Gear( ()
2
09263-36004
.bearing, Pinion (36x51x32) ()
3
09265-50001
.bearing, Fwd Gear (50x90x32) ()
4
09100-12052
Bolt L:70(sus) (type:x)
5
09116-10150
Bolt, 10x55 (type:x)
6
09160-10141
Washer (10.5x19x2) (type:xx)
7
09160-12066
.washer (12.5x22x2.5) ()
8
29141-93J20
Nut (type:xx)
9
09159-12014
Nut (type:xx)
10
09202-08006
Pin ()
11
55125-98J00-0EP
Tab, Trim ()
12
09116-08137
Bolt, 8x22 ()
13
55128-93J00
Plug, Drain ()
14
09168-10034
Gasket, Drain Pl ()
15
55320-95311
Zinc Set, Protec ()
16
09116-06094
Bolt, 6x15 ()
17
55332-98J00
Rubber, Exhaust ()
18
55333-98J00
Plate, Exhaust S ()
19
09401-08412
Clip ()
20
09355-40805-00B
Hose (l:2000->1300)
21
09362-09008
Nipple ()
22
09407-10404
.clamp ()
23-1
99105-00800-17P
Ssprop Dfv63x16 (opt)
23-2
99105-00800-185
Ssprop Dfv63x16 (opt)
23-3
99105-00800-20P
Ssprop Dfv63x16 (opt)
23-4
99105-00800-215
Ssprop Dfv63x16 (opt)
23-5
99105-00800-23P
Ssprop Dfv63x16 (opt)
23-6
99105-00800-245
Ssprop Dfv63x16 (opt)
24
58105-93J00
Bush Set, Propel (opt)
25
57632-93J10
Stopper, Propell ()
26
57633-87D30
Spacer, Nut(t:6. ()
27
09141-18005
Гайка
28
09160-18028
Washer (18.5x31x1.0) ()
29
09204-03003
Cotter Pin (l:25) ()
30
57630-92E00
Prop Hdwr V-6 M (opt)
31
25700-98J00
L.u.seal Kit 30 (opt Not Shown)
