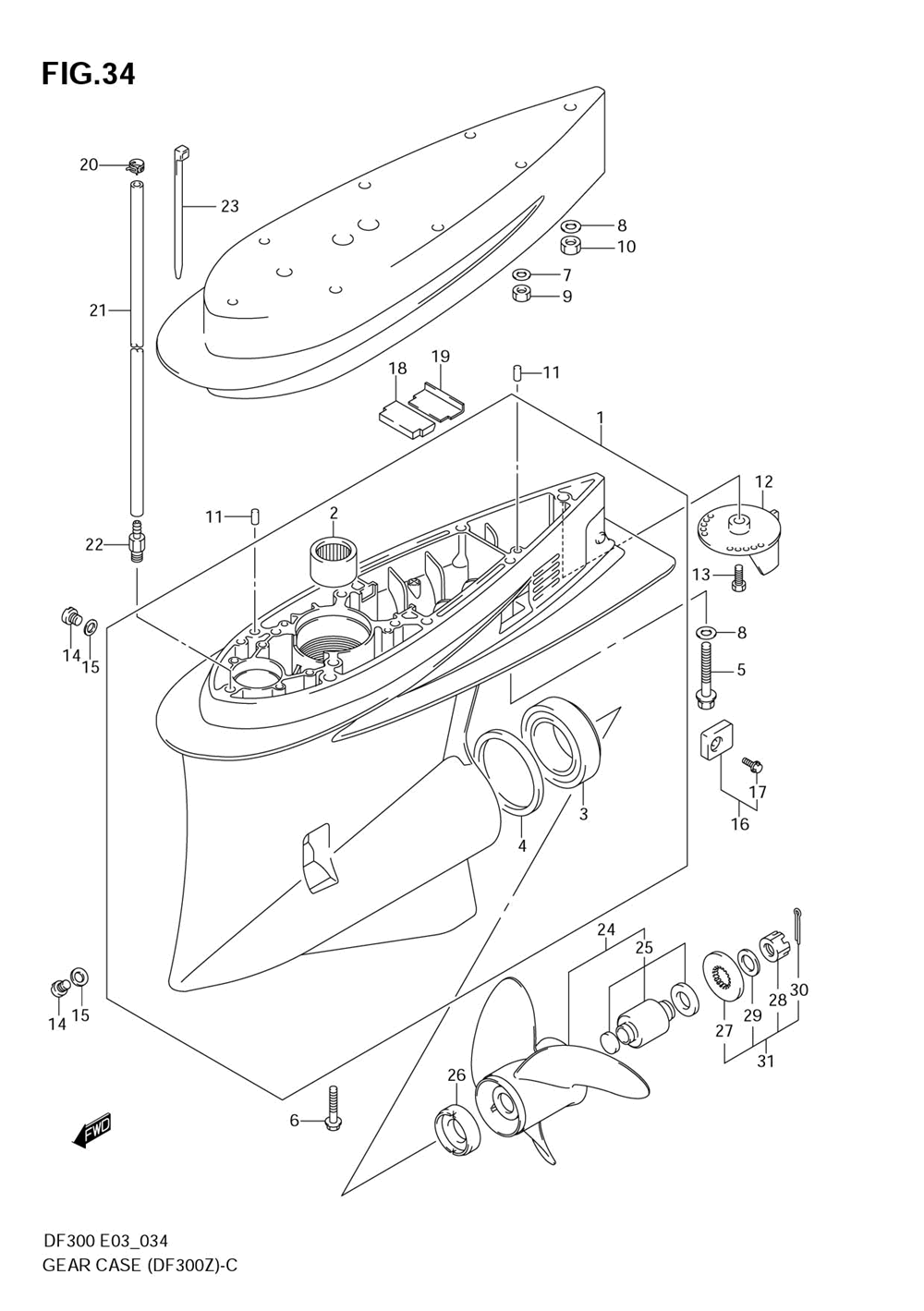

Картер (DF300Z)

Suzuki Marine DF300
Suzuki Marine
#oem кодцена
1
55110-98J10-0EP
Case, Gear(black ()
2
09263-36004
.bearing, Pinion (36x51x32) ()
3
08113-62100
Bearing ()
4
56141-98J00
Spacer, Reverse ()
5
09100-12052
Bolt L:70(sus) (type:x)
6
09116-10150
Bolt, 10x55 (type:x)
7
09160-10141
Washer (10.5x19x2) (type:xx)
8
09160-12066
.washer (12.5x22x2.5) ()
9
29141-93J20
Nut (type:xx)
10
09159-12014
Nut (type:xx)
11
09202-08006
Pin ()
12
55125-98J00-0EP
Tab, Trim ()
13
09116-08137
Bolt, 8x22 ()
14
55128-93J00
Plug, Drain ()
15
09168-10034
Gasket, Drain Pl ()
16
55320-95311
Zinc Set, Protec ()
17
09116-06094
Bolt, 6x15 ()
18
55332-98J00
Rubber, Exhaust ()
19
55333-98J00
Plate, Exhaust S ()
20
09401-08412
Clip ()
21
09355-40805-00B
Hose (l:2000->1300)
22
09362-09008
Nipple ()
23
09407-10404
.clamp ()
24-1
99105-0080L-185
Sspropcrv63x16x (opt)
24-2
99105-0080L-20P
Sspropcrv63x16x (opt)
24-3
99105-0080L-215
Sspropcrv63x16x (opt)
24-4
99105-0080L-23P
Sspropcrv63x16x (opt)
24-5
99105-0080L-17P
Sspropcrdfv63x1 (opt)
24-6
99105-0080L-245
Sspropcrv63x16x (opt)
25
58105-93J00
Bush Set, Propel (opt)
26
57632-93J10
Stopper, Propell ()
27
57633-87D30
Spacer, Nut(t:6. ()
28
09141-18005
Гайка
29
09160-18028
Washer (18.5x31x1.0) ()
30
09204-03003
Cotter Pin (l:25) ()
31
57630-92E00
Prop Hdwr V-6 M (opt)
32
25700-98J00
L.u.seal Kit 30 (opt Not Shown)
