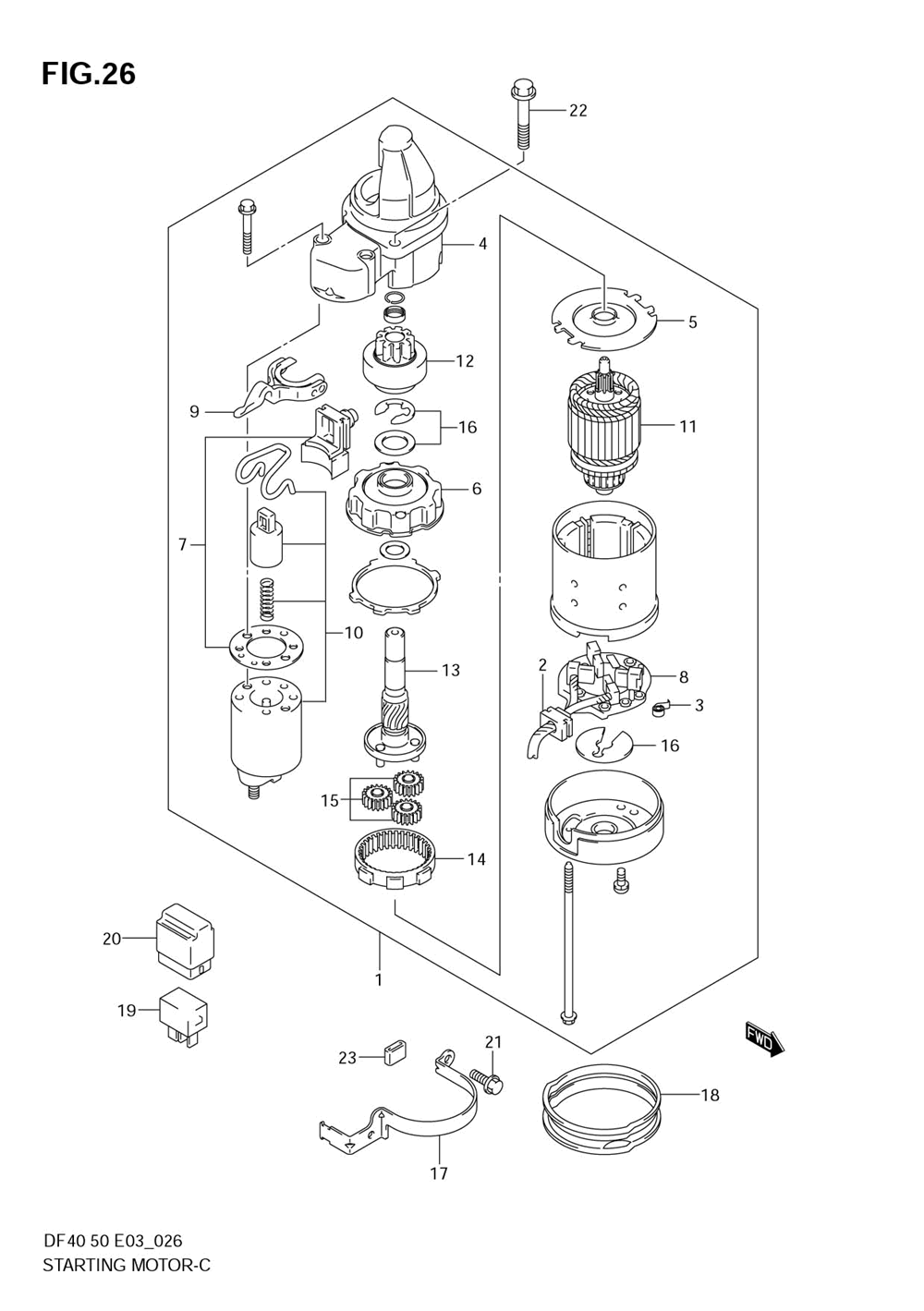

Starting motor (model:05~08)
Starting motor (model:05~08)

Starting motor (model:05~08)

Suzuki Marine DF40 50

Starting motor (model:05~08)

#

oem код

название

цена

1

Motor Assy, Star ()

Motor Assy, Star ()

2

Brush Assy ()

Brush Assy ()

3

Spring ()

Spring ()

4

Case, Gear ()

Case, Gear ()

5

Plate, Center ()

Plate, Center ()

6

Bracket, Gear ()

Bracket, Gear ()

7

Cover Kit, Dust ()

Cover Kit, Dust ()

8

Holder Assy, Bru ()

Holder Assy, Bru ()

9

Lever, Shift ()

Lever, Shift ()

10

Switch, Magnet ()

Switch, Magnet ()

11

Armature ()

Armature ()

12

Pinion ()

Pinion ()

13

Shaft, Pinion ()

Shaft, Pinion ()

14

Internal Gear ()

Internal Gear ()

15

Gear, Planetary ()

Gear, Planetary ()

16

Washer Set, Stop ()

Washer Set, Stop ()

17

Band, Starter Mo ()

Band, Starter Mo ()

18-1

Damper, Lower ()

Damper, Lower ()

18-2

Damper, Lower (model:06~08)

Damper, Lower (model:06~08)

19

Relay Assy ()

Relay Assy ()

20

Holder, Relay ()

Holder, Relay ()

21-1

Bolt, Lower (model:05~07model:08)

Bolt, Lower (model:05~07model:08)

21-3

.bolt, Eng Cov Fastener (model:08)

.bolt, Eng Cov Fastener (model:08)

22

..bolt, Upper ()

..bolt, Upper ()

23

Cushion ()

Cushion ()
