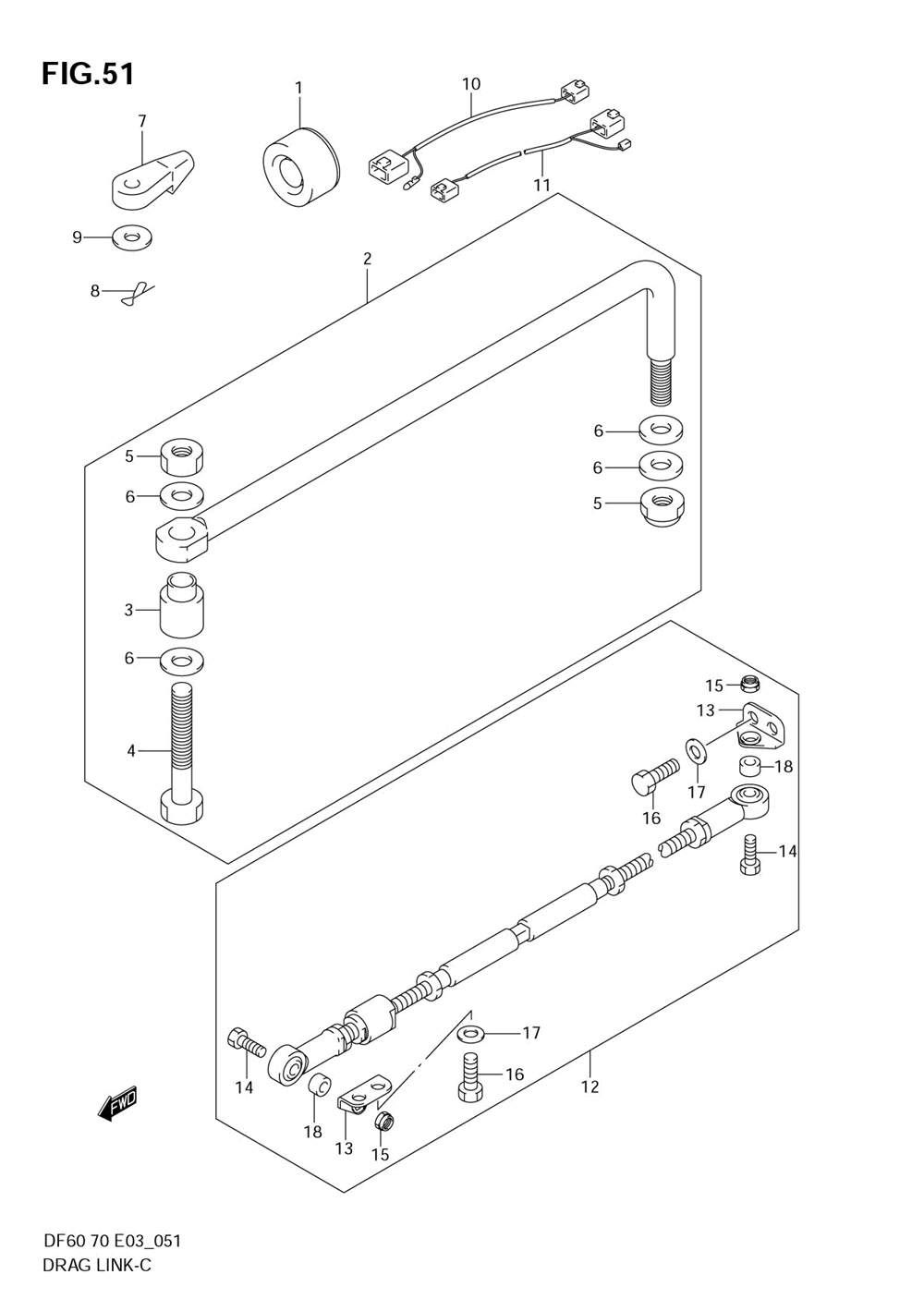

ТЯГА РУЛЕВАЯ

Suzuki Marine DF60/DF70
Suzuki Marine
#oem кодцена
1
41161-94400
Seal Strg Cable ()
2-1
67701-87J11
Link Assy, Drag (model:98~01->67701-87j00)
3-1
67721-99E00
Spacer (for 67701-99e20)
3-2
67721-87J00
Spacer (for 67701-87j0067701-87j11)
4
67725-99E00
Bolt, Drag Link ()
5
67726-99E00
Nut, Lock ()
6
67728-99E00
Washer ()
7
67467-89J01
Connector ()
8
09385-06012
Clip ()
9
09160-06055
Washer (7x12x1.0) ()
10
34711-99E00
Wire, Adpt To Mo (model:98~01)
11
36661-99E00
Wire, Adpt To En (model:98~01)
12
67600-90J00
(not For Us Market)
13
67631-90J00
Bracket, Tie Rod (not For Us Market)
14
67725-99E10
Bolt, Drag Link (not For Us Market)
16
09100-12081
.bolt (not For Us Market)
17
09160-12066
.washer (12.5x22x2.5) (not For Us Market)
18
09180-09022
.spacer (not For Us Market)
19
67620-99E00
Kit, Tie Rod Ada (not For Us Marketnot Shown)
20
09111-10064
.bolt (not For Us Market)
22
09180-09023
.spacer (not For Us Market)
