Электрика

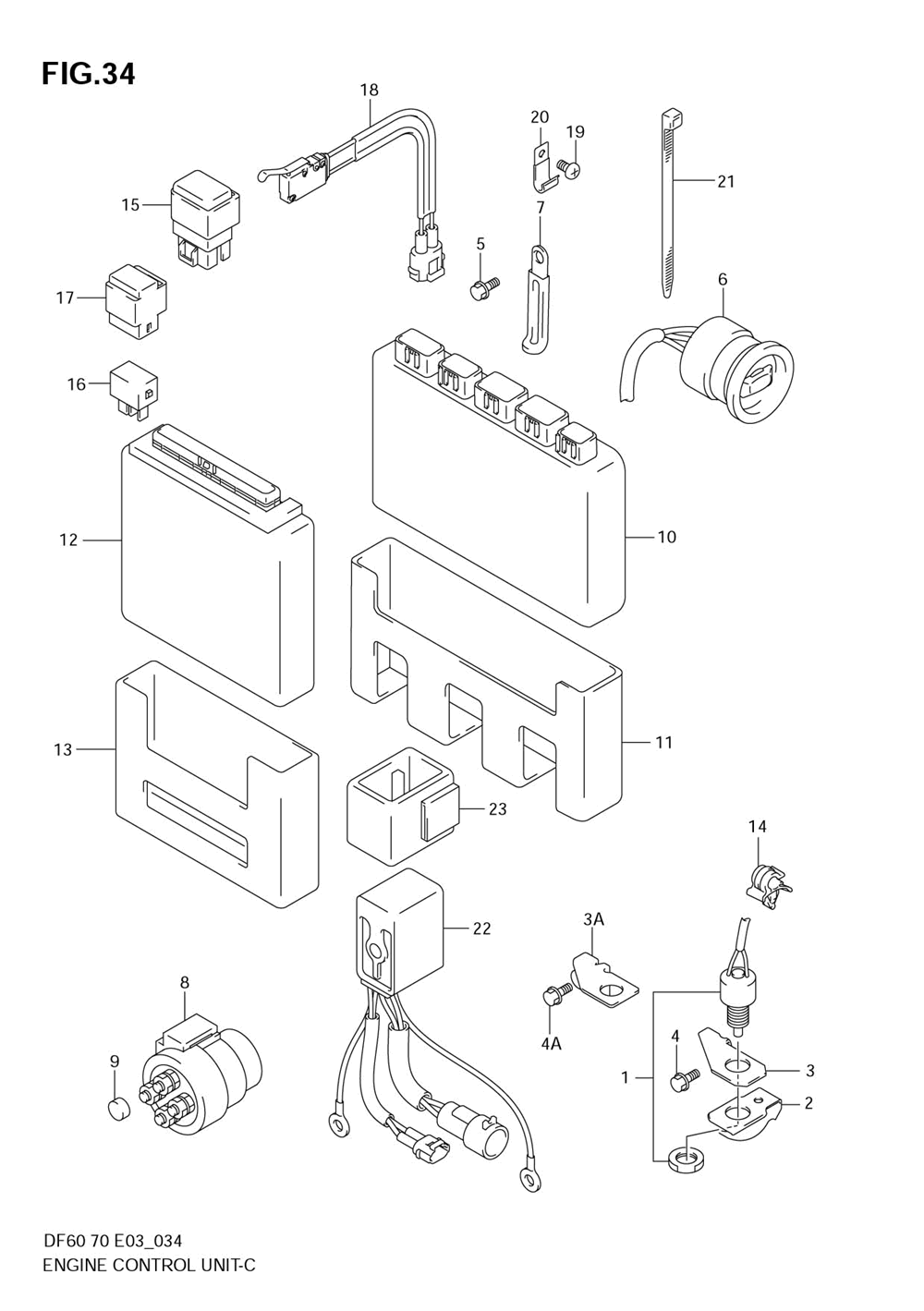

Suzuki Marine DF60/DF70
Suzuki Marine
#oem кодцена
1-1
37721-99E01
Switch Assy, Neu ()
1-2
37721-99E11
Switch Assy, Neu (model:03~08)
2
37725-95600
Actuator, Neutra ()
3
37726-94402
Bracket, Reverse (~model:01)
3A
37726-99E10
Bracket, Neutral (model:02~08)
4
01550-06167
.bolt, Remocon Cable Holder (~model:01model:02~08)
5
01550-06107
Болт
6
37850-99E03
Switch Assy, Ptt ()
7
29404-93J10
Clamp (<-09404-06432)
8
38410-94552
Relay Assy, Tri (model:98~05)
9
09251-09002
.cap (model:98~05)
10-1
33920-99E91
Ecu (df60:~861476)
10-2
33920-99E05
Unit, Engine Con (df60:861477~model:00)
10-3
33920-99EA0
Unit, Engine Co (df70:~861712)
10-4
33920-99E14
Unit, Engine Con (df70:861713~model:00)
11
33925-99E00
Cushion, Engine (model:98~00)
12-1
33920-99E72
Unit, Engine Con (df60 Model:01, 02)
12-3
33920-99E73
Unit, Engine Con (df60 Model:07)
12-4
33920-99E74
Unit, Engine Con (df60 Model:08)
12-5
33920-99E84
Unit, Engine Con (df70 Model:01, 02)
12-8
33920-99E83
Unit, Engine Con (df70 Model:07)
13
33925-87J00
Cushion, Engine (model:01~08)
14
09403-07308
Clamp ()
15
38910-92E00
Relay, Fuel Inje (model:98~02)
16
38860-76F01
Relay Assy (model:03~08)
17
38915-90J00
Holder, Relay (model:03~08)
18-1
37722-93J11
Switch Assy, Til (model:04~05)
19
01550-06127
Bolt (model:04~05)
20
09403-09316
Clamp (model:04~05)
21-1
09407-14407
.clamp, Harness (l:140) (model:04~05model:06~08)
22
38410-93J10
Relay Assy, Ptt (model:06~08)
23
38415-93J00
Holder, Ptt Rela (model:06~08)
