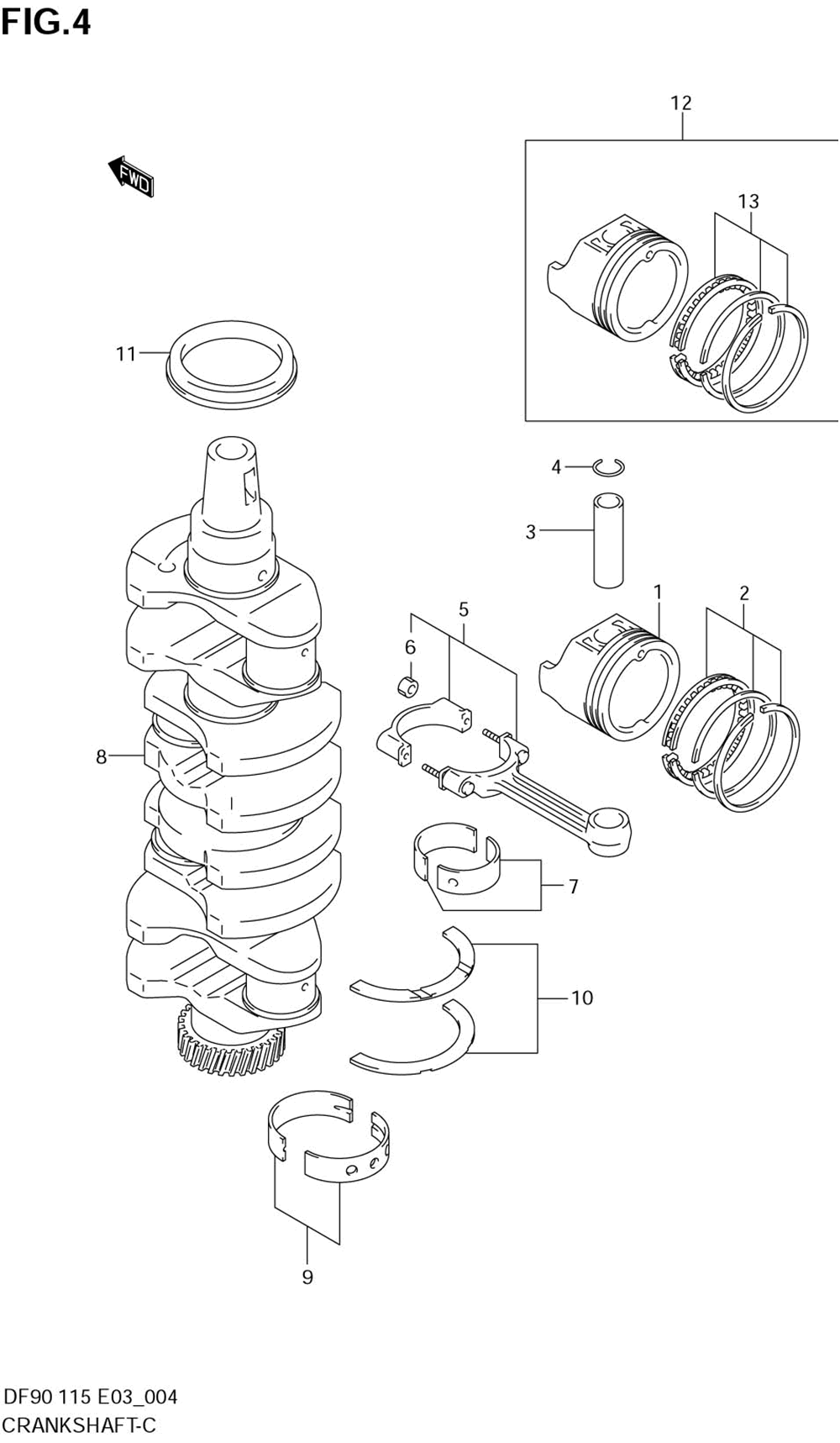

КОЛЕНЧАТЫЙ ВАЛ

Suzuki Marine DF90 115
Suzuki Marine
#oem кодцена
1
12111-90J01
Piston ()
2
12140-86FA0
Ring Set, Piston ()
3
12151-86FA0
Pin, Piston ()
4
09381-21002
Circlip ()
5-1
12160-90J00
Connrod Assy (->12160-92j00)
5-2
12160-92J00
Connrod Assy (model:03~08)
6-1
09159-08033
.nut (for 12160-90j00)
6-2
09159-08121
Nut (for 12160-92j00)
7-1
12100-60822-0A0
Bearing Set, Con (for 12160-90j00)
7-2
12100-92841-0A0
Bearing Set, Con (for 12160-92j00)
7-3
12100-60822-025
Bearing Set, Con (optfor 12160-90j00)
7-4
12100-92840-025
Bearing Set, Con (optfor 12160-92j00)
8-1
12200-92860
Crankshaft Set (->12200-92860)
8-2
12220-92J00
Crankshaft (df90:252072~df115:252907~)
9-1
12340-85FB3-0A0
Bearing Set, Cra (green)
9-2
12340-85FB3-0B0
Bearing Set, Cra (black)
9-3
12340-85FB3-0C0
Bearing Set, Cra (non)
9-4
12340-85FB3-0D0
Bearing Set, Cra (yellow)
9-5
12340-85FB3-0E0
Bearing Set, Cra (blue)
9-6
12300-85854-0AA
Bearing Set, Cra (opt)
9-7
12300-85854-0BA
Bearing Set, Cra (opt)
9-8
12300-85854-0CA
Bearing Set, Cra (opt)
9-9
12300-85854-0DA
Bearing Set, Cra (opt)
10-1
12300-85830
Bearing Set, Cra ()
10-2
12300-85830-012
Bearing Set, Cra (opt)
11
09283-52004
Seal, Oil ()
12
12100-90J01-050
Piston Set, Os:0 (opt)
13
12140-86FA0-050
Ring Set, Piston (opt)
