Engine cover (model:03~08) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF90 115 (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2008
DF90 115

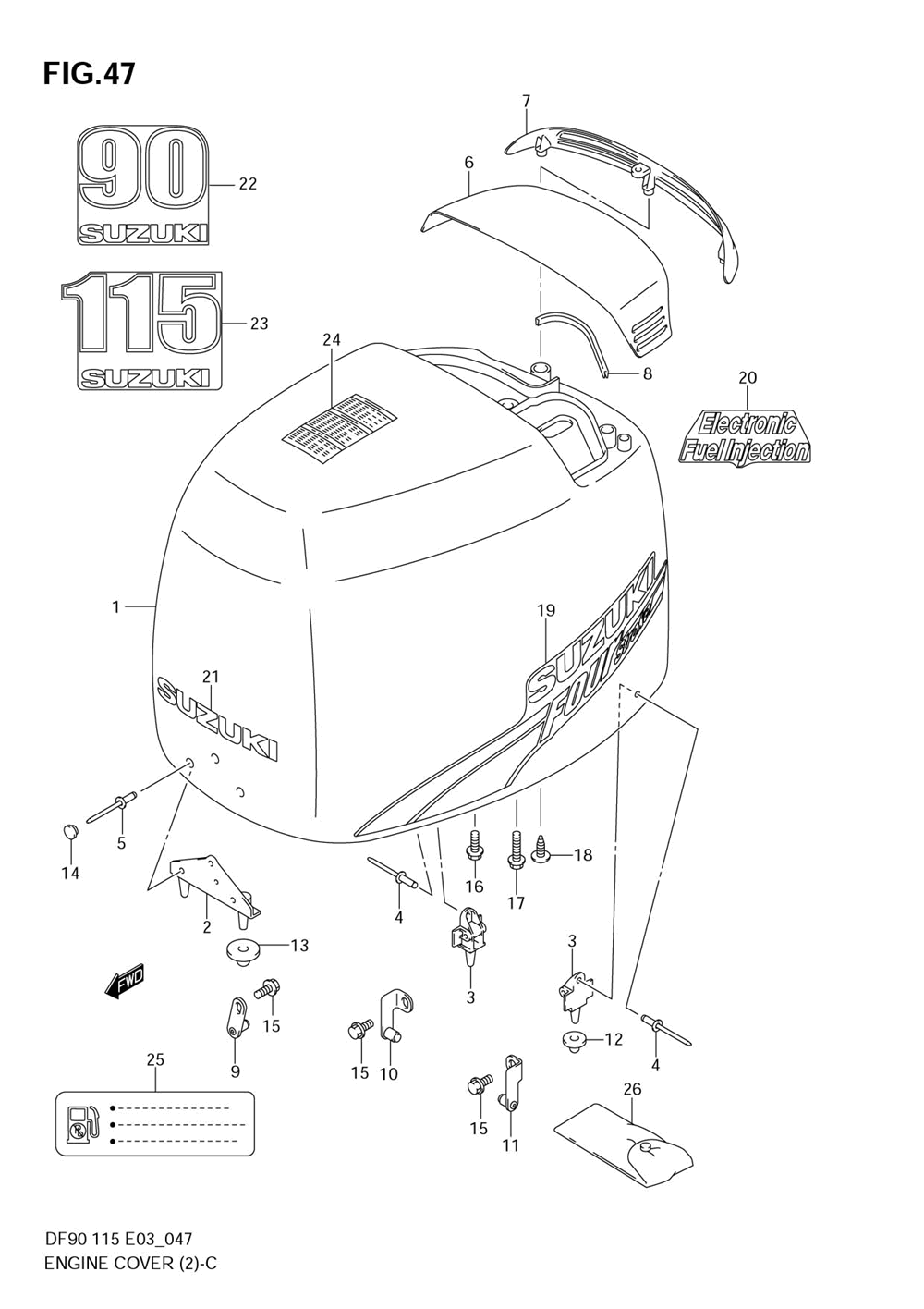

Engine cover (model:03~08)
Engine cover (model:03~08)

Engine cover (model:03~08)

Suzuki Marine DF90 115

Engine cover (model:03~08)

#

oem код

название

цена

1

61400-90814-0EP

Cover Set, Engin ()

Cover Set, Engin ()

2

Bracket, Fastene ()

Bracket, Fastene ()

3

Bracket, Fastene ()

Bracket, Fastene ()

4-1

Rivet ()

Rivet ()

4-2

.rivet (model:05~08)

.rivet (model:05~08)

5

.rivet ()

.rivet ()

6

61431-90J01-0EP

Handle, Tilt Up ()

Handle, Tilt Up ()

7

Louver, Tilt Up ()

Louver, Tilt Up ()

8

Seal, Tilt Up Ha ()

Seal, Tilt Up Ha ()

9

Fastener Comp ()

Fastener Comp ()

10

Fastener Comp, R ()

Fastener Comp, R ()

11

Fastener, Rear P ()

Fastener, Rear P ()

12

Cushion ()

Cushion ()

13

.cushion ()

.cushion ()

14

.cap ()

.cap ()

15

Болт

Болт

16

.bolt, Remocon Cable Holder ()

.bolt, Remocon Cable Holder ()

17

..bolt ()

..bolt ()

18

Screw ()

Screw ()

19-1

Stripe, Engine C ()

Stripe, Engine C ()

19-2

Stripe, Engine C ()

Stripe, Engine C ()

20

Decal, Efi ()

Decal, Efi ()

21

Mark, Emblem Fro (<-68111-47c10-y2d)

Mark, Emblem Fro (<-68111-47c10-y2d)

22

Mark, Emblem Rea (df90)

Mark, Emblem Rea (df90)

23

Mark, Emblem Rea (df115)

Mark, Emblem Rea (df115)

24

Label, Engine Co ()

Label, Engine Co ()

25

Label, Fuel Lim ()

Label, Fuel Lim ()

26

Tool Set ()

Tool Set ()
