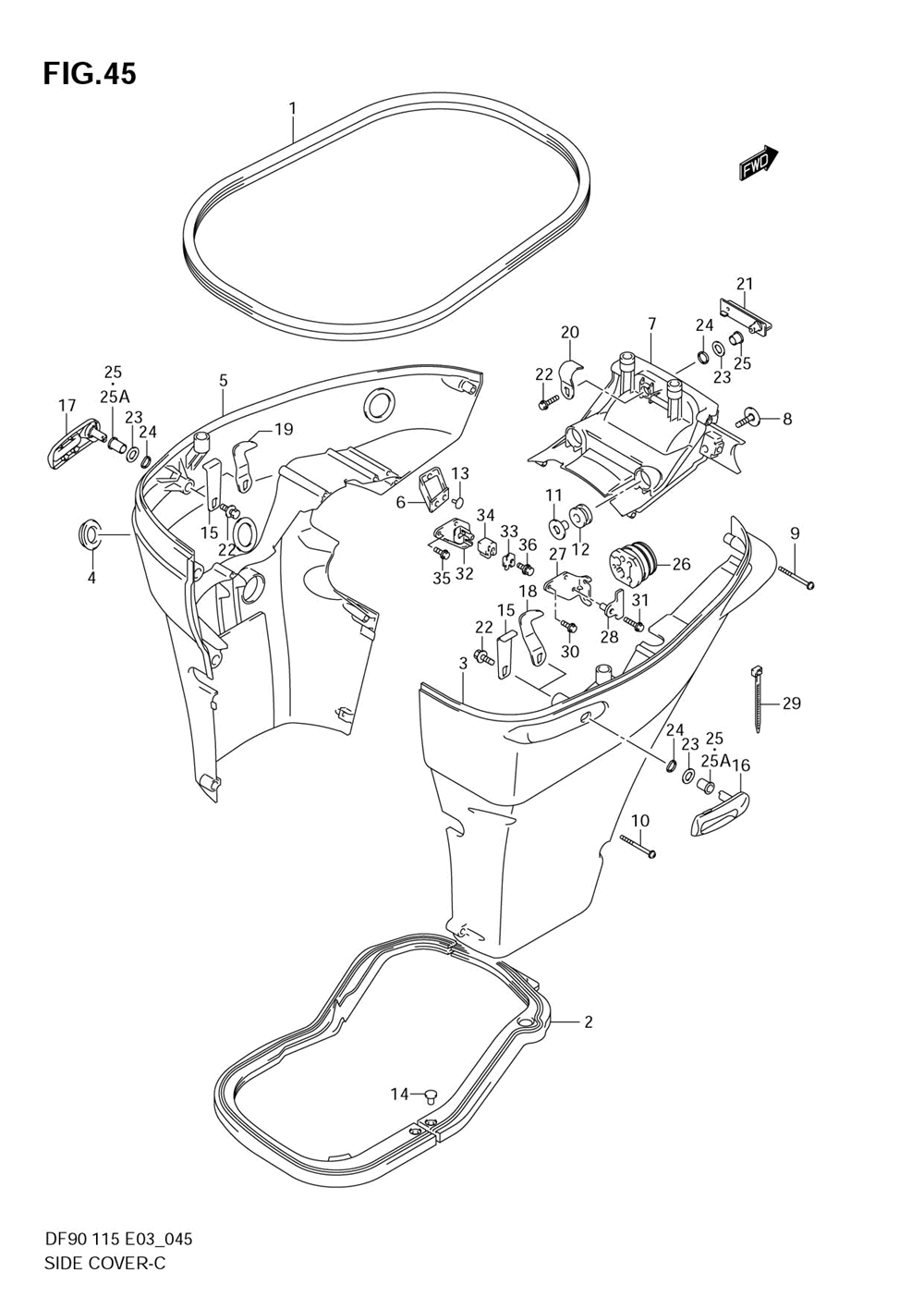

БОКОВАЯ КРЫШКА

Suzuki Marine DF90 115
Suzuki Marine
#oem кодцена
1
61112-90J00
Rubber, Side Cov ()
2-1
61134-90J01
Seal, Side Cover ()
2-2
61134-90J10
Seal, Side Cover (model:04~08)
3
61810-90J01-0EP
Cover, Side Stbd ()
4
61817-89J00
Plug, Side Cover ()
5
61820-90J01-0EP
Cover, Side Port ()
6
61827-90J00
Holder, Side Cov ()
7-1
61831-90J03-0EP
Panel, Front (->61831-90j02-0epused With 09307-13006)
7-3
61831-90J10-0EP
Panel, Front (model:07~08)
8
09118-08127
Bolt (8x40) ()
9
09136-06148
Винт
10
09136-06149
Screw (6x55) ()
11
09169-08039
Шайба
12
09320-11013
Cushion ()
13
09321-08022
Cushion ()
14
09409-05302-5PK
Pin ()
15
61631-90J00
(->61600-90800)
16
61633-90J02-0EP
Lever, Hook Rear ()
18
61637-90J00
Hook, Engine Cov (model:02~08)
19
61638-90J00
Hook, Engine Cov (model:02~08)
20
61641-87D00
Hook, Engine Cov ()
21
61645-90J01-0EP
Lever, Hook Fron ()
22
09116-06127
Bolt (6x12) ()
23
09160-13014
Washer (13.2x25x1.0) ()
24
09164-14008
Washer, Wave ()
25-1
09307-13006
Bush (df90:251530~df115:252817~)
25A
09306-13008
Bush (df90:251530~df115:252817~)
26-1
61124-90J00
Grommet, Remocon ()
26-2
61124-90J30
Grommet, R/con C (model:07~08)
27
67300-90802
Holder Set, Remo (model:01, 02->67300-90800holder Set)
28
67343-90J01
Stopper, Remocon (model:01, 02)
29
09407-25402
.clamp ()
30
01550-06167
.bolt, Remocon Cable Holder (model:01,02)
31
01550-06257
..bolt (model:01, 02)
32
67341-90J32
Holder, Remocon (model:03~08)
33
67343-90J20
Stopper, Remocon (model:03~08)
34
67344-90J00
Cushion, Remocon (model:03~08)
36
01580-08257
Bolt (model:03~08)
