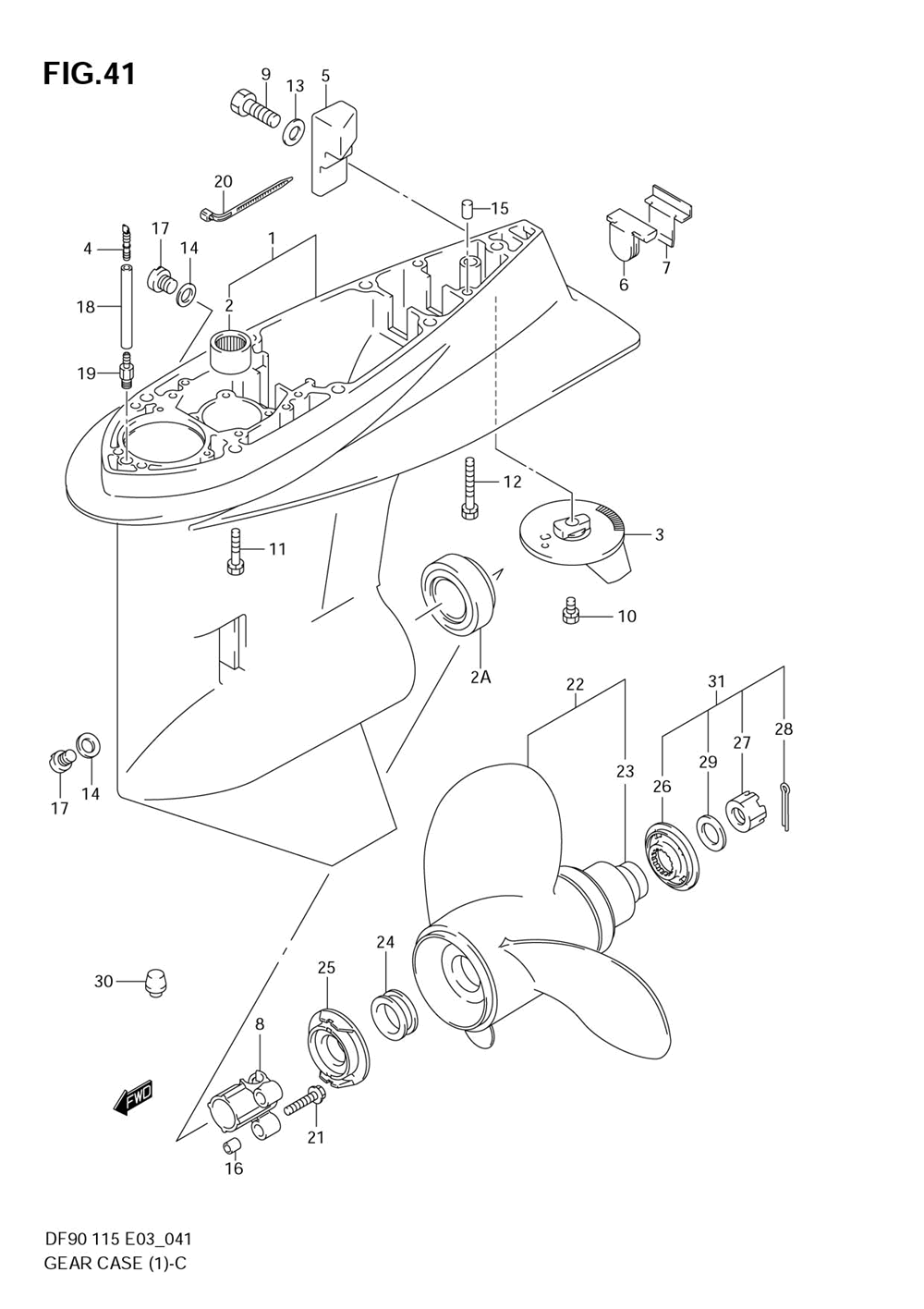

Gear case (df90t

Suzuki Marine DF90 115
Suzuki Marine
#oem кодцена
1
55100-90803-0EP
Case Set, Gear(b ()
2
09263-28016
.bearing, Pinion ()
2A
09265-50003
Bearing ()
3
55125-90J01
Tab, Trim ()
4
55127-87D00
Union, Speedomet ()
5
55321-90J01
Anode, Gear Case ()
6
55332-87D11
Rubber, Exhaust ()
7
55333-87D10
Plate, Exhaust S ()
8-1
56145-90J10
Housing, Shift C ()
8-2
56145-90J20
Housing, Shift C (df90:680686~df115:681518~)
9
09100-06131
.bolt (6x12) ()
10
09116-08137
Болт, 8x22 (серийный номер с №-09116-08103)
11-1
09116-10150
Bolt, 10x55 ()
12
09117-10039
Bolt (10x80) ()
13
09160-06085
Шайба
14
09168-10022
Gasket (10x17x1.5) ()
15
09202-08006
Pin ()
16
09206-09012
Pin ()
17
09248-10008
Plug (10x7.5) ()
18-1
09355-40805-00B
Hose (type:ll:2000->940l:2000->1100 Model:08type:xl:2000->1100)
19
09362-09008
Nipple ()
20
09407-14407
.clamp, Harness (l:140) ()
21
01550-06257
..bolt ()
22-1
58100-90J01-019
Prop 17p Df90-1 ()
22-2
58100-90J11-019
Prop 19p Df90-1 ()
22-3
58100-90J21-019
Prop 21p Df90-1 ()
22-4
58100-90J31-019
Prop 23p Df90-1 ()
22-5
58100-90J41-019
Prop 15p Df90-1 ()
22-6
99105-00700-18P
Ss Prop Df 90-1 (not For Us Market)
23
58120-90J00
Bushing, Propel (w/ref.no.22)
24
57632-90J00
Spacer, Propelle ()
25
57635-90J01
Stopper, Propell ()
26
57633-90J02
Spacer, Propelle ()
27
09141-18005
Гайка
28
09204-03003
Cotter Pin (l:25) ()
29
09160-18028
Washer (18.5x31x1.0) ()
30
55116-87E00
Plug, Gear Case (opt)
31
57630-90J00
Prop Hdwr Df 90 (opt)
32
25700-90J01
Lu Seal Kit Df9 (opt Not Shown)
