ПРОВОДКА Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF90 115 (2008)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2008
DF90 115

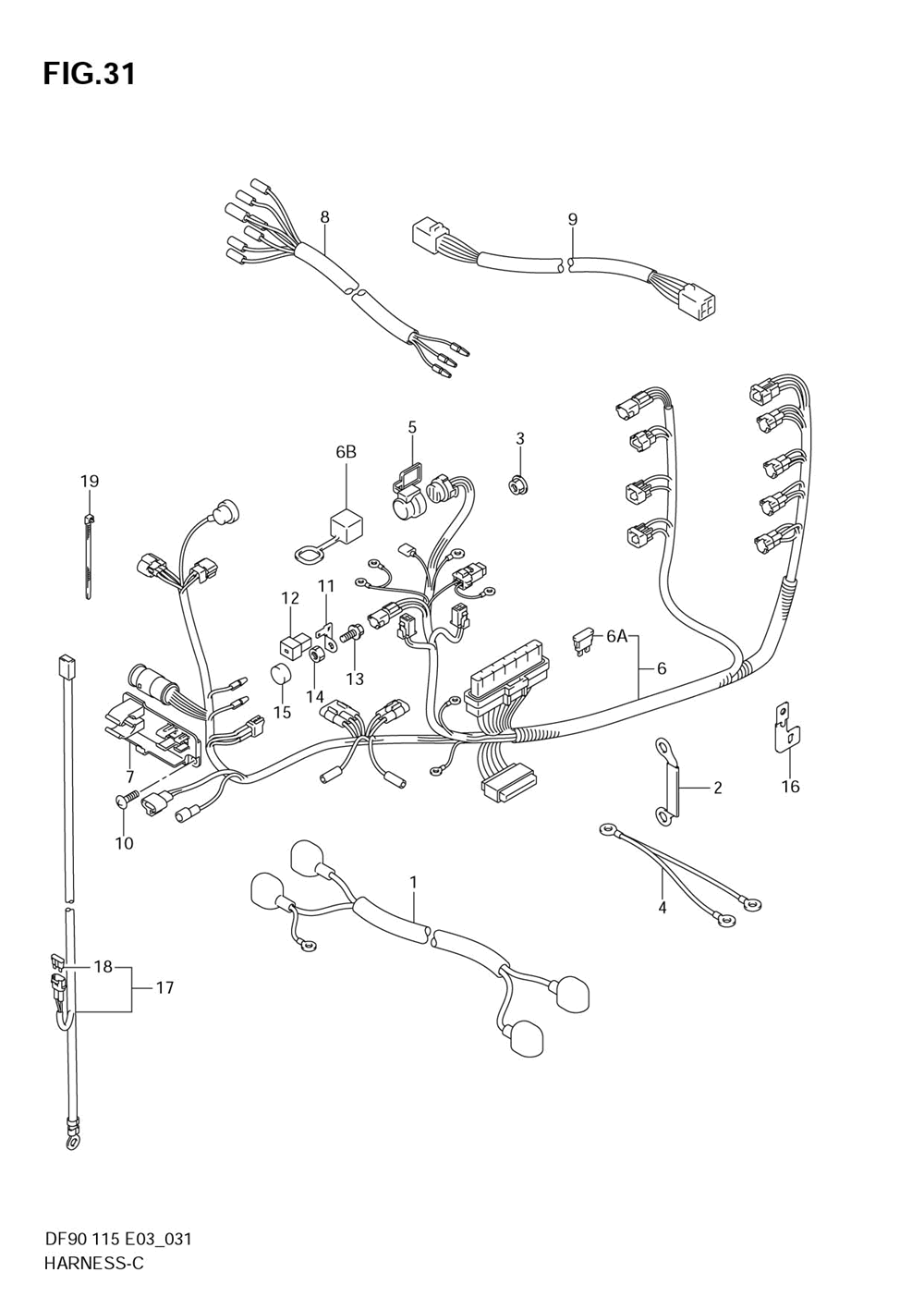

ПРОВОДКА
ПРОВОДКА

ПРОВОДКА

Suzuki Marine DF90 115

oem код

название

цена

33810-90J10

Cable Assy, Star ()

33831-90J00

Plate, Ptt Relay (model:01~03)

08316-10087

..nut ()

33832-90J00

Cable Assy, Trim (model:01~03)

33634-99E00

Cap, Service Con (model:01~07)

6-1

36610-90J00

Harness Assy, Wi ()

6-2

36610-90J20

Harness Assy, Wi (model:03)

6-3

36610-90J30

Harness Assy, Wi (model:04)

6-4

36610-90J60

Harness Assy, Wi (model:05~07->36610-90j60)

6-5

36610-90J91

Harness Assy, Wi (model:08)

09481-30501

.fuse (30a) ()

33634-96J00

Cap, Service Con (model:08)

7-1

36616-90J00

Holder, Remocon ()

7-2

36616-90J10

Holder, Connecto (model:05~08)

36630-92E00

Wire Assy, Instr (model:01~04)

9-1

36682-92E00

Monitor Harness (model:01~04)

9-2

36682-90J00

Wire, Trim Meter (opt Model:01~04)

Винт

Terminal, Main F ()

Fuse, 60amp ()

Болт

.nut ()

.cap ()

Bracket, Joint C (model:04~08)

17-1

36625-93J00

Lead, Battery (l:3700 Model:05~08)

17-2

36625-93J10

15a-batt-ecm-le (optl:6500 Model:05~08)

09481-15501

.fuse (15a) ()

09407-14407

.clamp, Harness (l:140) (model:05~08)
