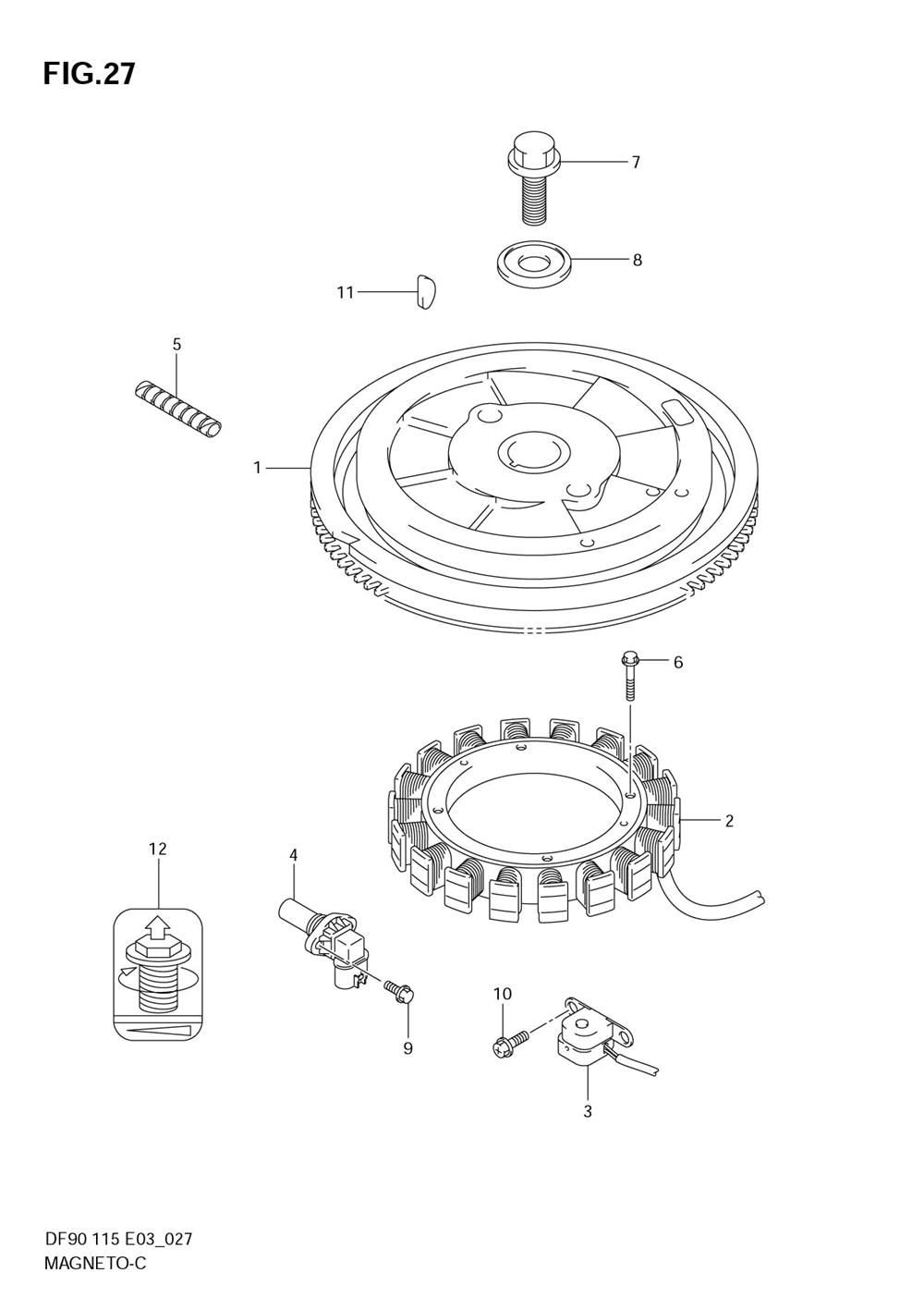

ГЕНЕРАТОР

Suzuki Marine DF90 115
Suzuki Marine
#oem кодцена
1-1
32102-90J00
Flywheel, Magnet (for 12220-90j01)
1-2
32102-92J10
Flywheel Assy (df90:252072~df115:252907~for 12220-92j00)
2-1
32120-90J00
Coil, Btry Charg ()
2-2
32120-90J10
Coil, Battery Ch (model:03~05)
2-3
32120-90J20
Coil Comp, Batte (model:06~08)
3-1
32160-87J00
Coil Assy, Ign T ()
3-2
32160-87J10
Coil, Ignition T (model:03~08)
4
33220-76G02
Sensor Assy, Cam ()
5
33833-91J00
Tube, Sw Lead (l:250->100<-38423-95510)
6
09103-06231
Bolt (6x35) ()
7-1
09103-16002
Bolt (16x45) (for 12220-90j01)
7-2
09103-16003
Bolt (16x50) (df90:252072~df115:252907~for 12220-92j00)
8-1
09160-16047
Washer (16.5x48.5x4.5) (for 12220-90j01)
8-2
09160-16048
Washer (16.5x60x7.0) (df90:252072~df115:252907~for 12220-92j00)
9
01550-06167
.bolt, Remocon Cable Holder ()
10
02162-05167
Винт
11
08341-31059
Key, Woodruff ()
12
32118-90J00
Label, Mag Bolt ()
3-2
32160-87L00
Coil Comp, Ign T (model:03~08)
