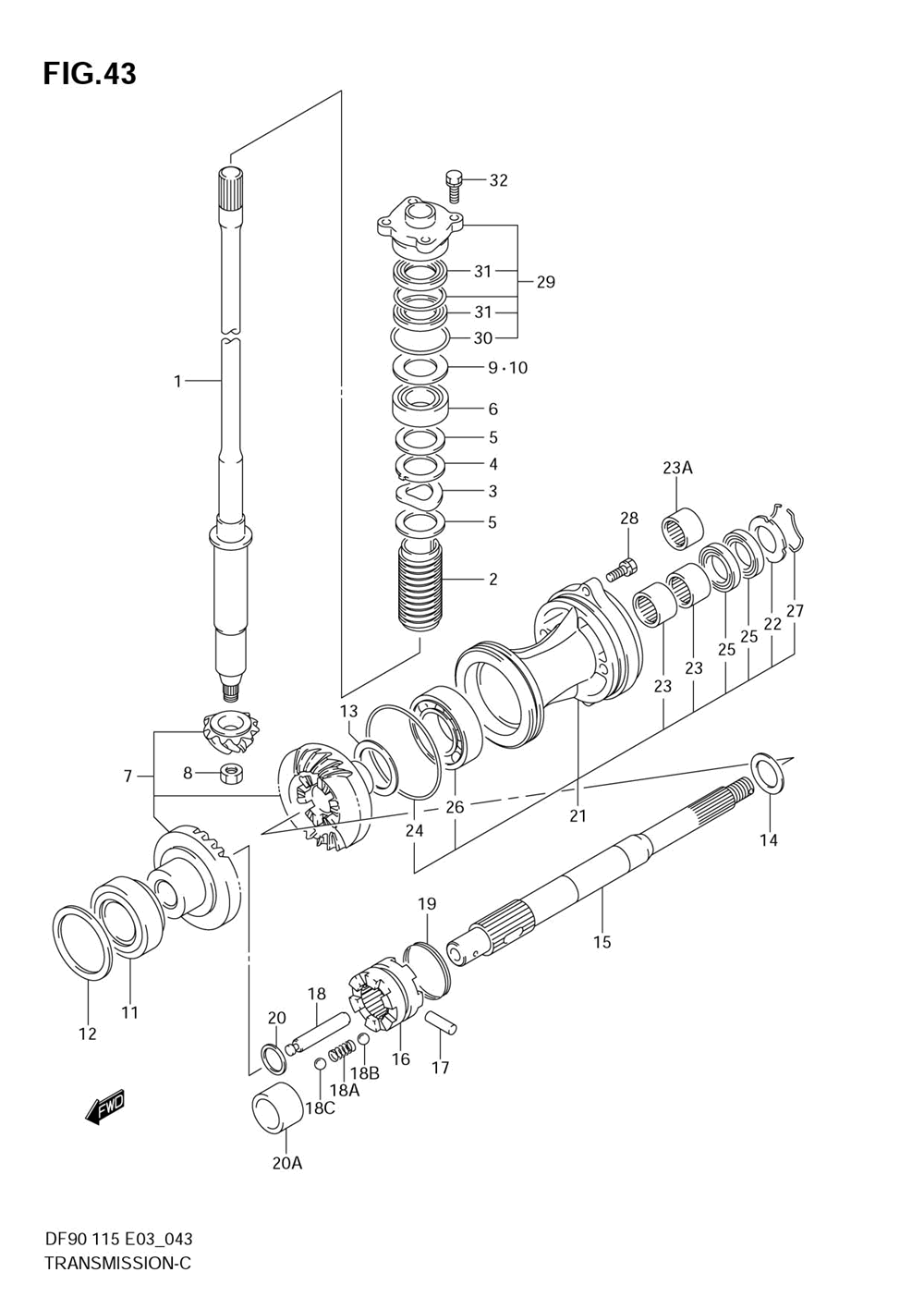

Transmission (df90t
Transmission (df90t

Transmission (df90t

Suzuki Marine DF90 115

Transmission (df90t

#

oem код

название

цена

1-1

Shaft, Drive (l) ()

Shaft, Drive (l) ()

1-2

Shaft Comp, Driv (model:04~06)

Shaft Comp, Driv (model:04~06)

1-4

Shaft, Drive (ul ()

Shaft, Drive (ul ()

1-5

Shaft Comp, Driv (model:04~06)

Shaft Comp, Driv (model:04~06)

2

Collar ()

Collar ()

3

Washer, Wave (model:01~03)

Washer, Wave (model:01~03)

4

Washer (model:01~03)

Washer (model:01~03)

5

Washer (model:01~03)

Washer (model:01~03)

6

Bearing ()

Bearing ()

7-1

Pinion / Gear S ()

Pinion / Gear S ()

7-2

Pinion / Gear S (df90:680686~df115:681518~)

Pinion / Gear S (df90:680686~df115:681518~)

7-3

Pinion / Gear S (model:07~08)

Pinion / Gear S (model:07~08)

8

Гайка

Гайка

9

Shim Set, Drive ()

Shim Set, Drive ()

10-1

.shim (t:0.50) ()

.shim (t:0.50) ()

10-2

Shim ()

Shim ()

10-3

.shim (t:0.60) ()

.shim (t:0.60) ()

10-4

.shim (t:0.65) ()

.shim (t:0.65) ()

10-5

.shim (t:0.70) ()

.shim (t:0.70) ()

10-6

.shim (t:0.75) ()

.shim (t:0.75) ()

10-7

.shim (t:0.80) ()

.shim (t:0.80) ()

10-8

.shim (t:0.85) ()

.shim (t:0.85) ()

10-9

.shim (t:0.90) ()

.shim (t:0.90) ()

10-10

.shim (t:0.95) ()

.shim (t:0.95) ()

10-11

.shim (t:1.00) ()

.shim (t:1.00) ()

10-12

.shim (t:1.05) ()

.shim (t:1.05) ()

10-13

.shim (t:1.10) ()

.shim (t:1.10) ()

10-14

.shim (t:1.15) ()

.shim (t:1.15) ()

11

Bearing (inc 55100-90802-0ep)

Bearing (inc 55100-90802-0ep)

12-1

Shim (t:0.45) ()

Shim (t:0.45) ()

12-2

Shim (t:0.50) ()

Shim (t:0.50) ()

12-3

Shim (t:0.55) ()

Shim (t:0.55) ()

12-4

Shim (t:0.60) ()

Shim (t:0.60) ()

12-5

Shim (t:0.65) ()

Shim (t:0.65) ()

12-6

Shim (t:0.70) ()

Shim (t:0.70) ()

12-7

Shim (t:0.75) ()

Shim (t:0.75) ()

12-8

Shim (t:0.80) ()

Shim (t:0.80) ()

12-9

Shim (t:0.85) ()

Shim (t:0.85) ()

12-10

Shim (t:0.90) ()

Shim (t:0.90) ()

13-1

Shim ()

Shim ()

13-2

Shim (t:1.1) ()

Shim (t:1.1) ()

13-3

Shim ()

Shim ()

13-4

Shim ()

Shim ()

13-5

Shim ()

Shim ()

13-6

Shim ()

Shim ()

13-7

Shim ()

Shim ()

14-1

Shim (t:1.5) ()

Shim (t:1.5) ()

14-2

Shim (t:1.0) ()

Shim (t:1.0) ()

14-3

Shim (t:1.2) ()

Shim (t:1.2) ()

14-4

Shim (t:1.3) ()

Shim (t:1.3) ()

14-5

Shim (t:1.4) ()

Shim (t:1.4) ()

14-6

Shim (t:1.6) ()

Shim (t:1.6) ()

15-1

Shaft, Propelle ()

Shaft, Propelle ()

15-2

Shaft, Propeller (df90:252072~df115:255123~)

Shaft, Propeller (df90:252072~df115:255123~)

15-3

Shaft, Prop (df90:680686~df115:681518~)

Shaft, Prop (df90:680686~df115:681518~)

16-1

Shifter, Clutch ()

Shifter, Clutch ()

16-2

Shifter, Clutch (df90:252072~df115:255123~)

Shifter, Clutch (df90:252072~df115:255123~)

16-3

Shifter, Clutch (df90:680686~df115:681518~)

Shifter, Clutch (df90:680686~df115:681518~)

17

Pin ()

Pin ()

18-1

Pin, Connector ()

Pin, Connector ()

18-2

Pin, Connector (df90:680686~df115:681518~)

Pin, Connector (df90:680686~df115:681518~)

18A

Spring, Detent (df90:680686~df115:681518~)

Spring, Detent (df90:680686~df115:681518~)

18B

Ball, Detent No.1 (df90:680686~df115:681518~)

Ball, Detent No.1 (df90:680686~df115:681518~)

18C

Ball (df90:680686~df115:681518~)

Ball (df90:680686~df115:681518~)

19-1

Spring Dog ()

Spring Dog ()

19-2

Spring (df90:252072~df115:255123~)

Spring (df90:252072~df115:255123~)

20

Shim (df90:~252071df115:~255122)

Shim (df90:~252071df115:~255122)

20A

Spacer, Clutch D (df90:252072~df115:255123~)

Spacer, Clutch D (df90:252072~df115:255123~)

21

56120-90J02-0EP

Housing, Prop Sh ()

Housing, Prop Sh ()

22

Washer, Oil Seal ()

Washer, Oil Seal ()

23

.bearing (df90:~252071df115:~255122)

.bearing (df90:~252071df115:~255122)

23A

Bearing, 28x37x3 (df90:252072~df115:255123~)

Bearing, 28x37x3 (df90:252072~df115:255123~)

24

.o Ring (d:3.5, Id:95.0) ()

.o Ring (d:3.5, Id:95.0) ()

25

.oil Seal ()

.oil Seal ()

26-1

.bearing ()

.bearing ()

26-2

.bearing (df90:251118~df115:251356~)

.bearing (df90:251118~df115:251356~)

27

Set Ring (sus) ()

Set Ring (sus) ()

28

Bolt (8x30) ()

Bolt (8x30) ()

29

Hsg Comp, Drive ()

Hsg Comp, Drive ()

30

.o Ring (d:3.5, Id:45.7) ()

.o Ring (d:3.5, Id:45.7) ()

31

.oil Seal ()

.oil Seal ()

32

Bolt (8x25) ()

Bolt (8x25) ()
