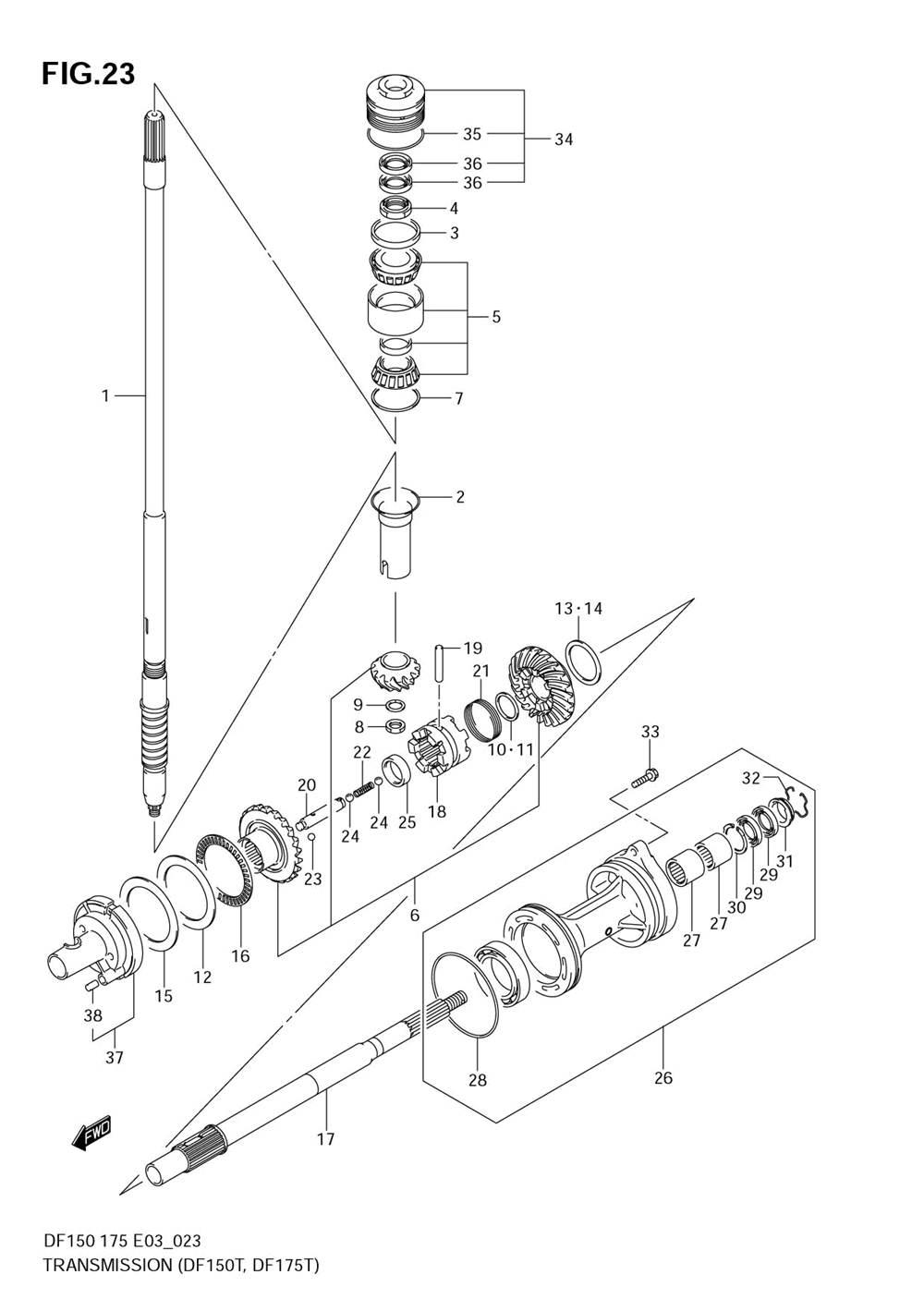

Трансмиссия (DF150T)
Трансмиссия (DF150T)

Трансмиссия (DF150T)

Suzuki Marine DF150 175

Трансмиссия (DF150T)

#

oem код

название

цена

1-1

Shaft Comp, Driv

Shaft Comp, Driv

1-2

Shaft Comp, Driv

Shaft Comp, Driv

2

Collar, Drive Sh

Collar, Drive Sh

3

Spacer, Drive Sf

Spacer, Drive Sf

4

Nut, Drive Sft B

Nut, Drive Sft B

5

Bearing, Drive S

Bearing, Drive S

6

Pinion / Gear S

Pinion / Gear S

7-1

Shim, Drive Shaf

Shim, Drive Shaf

7-2

Shim, Drive Shaf

Shim, Drive Shaf

7-3

Shim, Drive Shaf

Shim, Drive Shaf

7-4

Shim, Drive Shaf

Shim, Drive Shaf

7-5

Shim, Drive Shaf

Shim, Drive Shaf

7-6

Shim, Drive Shaf

Shim, Drive Shaf

7-7

Shim, Drive Shaf

Shim, Drive Shaf

7-8

Shim, Drive Shaf

Shim, Drive Shaf

7-9

Shim, Drive Shaf

Shim, Drive Shaf

7-10

Shim, Drive Shaf

Shim, Drive Shaf

8

Nut, Pinion

Nut, Pinion

9

Washer, Pinion Nut

Washer, Pinion Nut

10

Shim Set, Revers

Shim Set, Revers

11-1

.washer (30x38x1.5)

.washer (30x38x1.5)

11-2

.washer (30x38x1.7)

.washer (30x38x1.7)

11-3

Washer (30x38x1.9)

Washer (30x38x1.9)

11-4

.washer (30x38x2.1)

.washer (30x38x2.1)

11-5

.washer (30x38x2.2)

.washer (30x38x2.2)

11-6

.washer (30x38x2.3)

.washer (30x38x2.3)

11-7

.washer (30x38x2.4)

.washer (30x38x2.4)

11-8

.washer (30x38x2.5)

.washer (30x38x2.5)

11-9

.washer (30x38x2.6)

.washer (30x38x2.6)

11-10

.washer (30x38x2.7)

.washer (30x38x2.7)

11-11

.washer (30x38x2.8)

.washer (30x38x2.8)

12

Washer, Thrust F

Washer, Thrust F

13

Shim Set, Revers

Shim Set, Revers

14-1

14-2

Shim, 50x62x1.1

Shim, 50x62x1.1

14-3

Shim, 50x62x1.2

Shim, 50x62x1.2

14-4

Shim, 50x62x1.3

Shim, 50x62x1.3

14-5

Shim, 50x62x1.4

Shim, 50x62x1.4

14-6

Shim, 50x62x1.5

Shim, 50x62x1.5

14-7

Shim, 50x62x1.6

Shim, 50x62x1.6

14-8

15-1

Shim, Forward Ge

Shim, Forward Ge

15-2

Shim (75x100x0.55)

Shim (75x100x0.55)

15-3

Shim, Forward Ge

Shim, Forward Ge

15-4

Shim, Forward Ge

Shim, Forward Ge

15-5

Shim, Forward Ge

Shim, Forward Ge

15-6

Shim, Forward Ge

Shim, Forward Ge

15-7

Shim, Forward Ge

Shim, Forward Ge

15-8

Shim, Forward Ge

Shim, Forward Ge

15-9

Shim, Forward Ge

Shim, Forward Ge

15-10

Shim, Forward Ge

Shim, Forward Ge

15-11

Shim, Forward Ge

Shim, Forward Ge

16

Подшипник опорный

Подшипник опорный

17

Shaft Comp, Prop

Shaft Comp, Prop

18

Муфта сцепления

Муфта сцепления

19

Штифт

Штифт

20

Pin, Connector

Pin, Connector

21

Spring, Clutch D

Spring, Clutch D

22

Spring, Detent

Spring, Detent

23

Шарик

Шарик

24

Шарик

Шарик

25

Стопор

Стопор

26

56120-93J02-0EP

Housing Comp, Pr

Housing Comp, Pr

27

.bearing

.bearing

28

O-ring, Prop(id:

O-ring, Prop(id:

29

Oil Seal 30x45x

Oil Seal 30x45x

30

.circlip

.circlip

31

Protector, Oil S

Protector, Oil S

32

Set Ring (sus)

Set Ring (sus)

33

Болт

Болт

34

Housing Comp, Dr

Housing Comp, Dr

35

O-ring(id:65.4,

O-ring(id:65.4,

36

.oil Seal

.oil Seal

37

Housing Comp, Fw

Housing Comp, Fw

38

.pin, Shift Cam Housing

.pin, Shift Cam Housing
