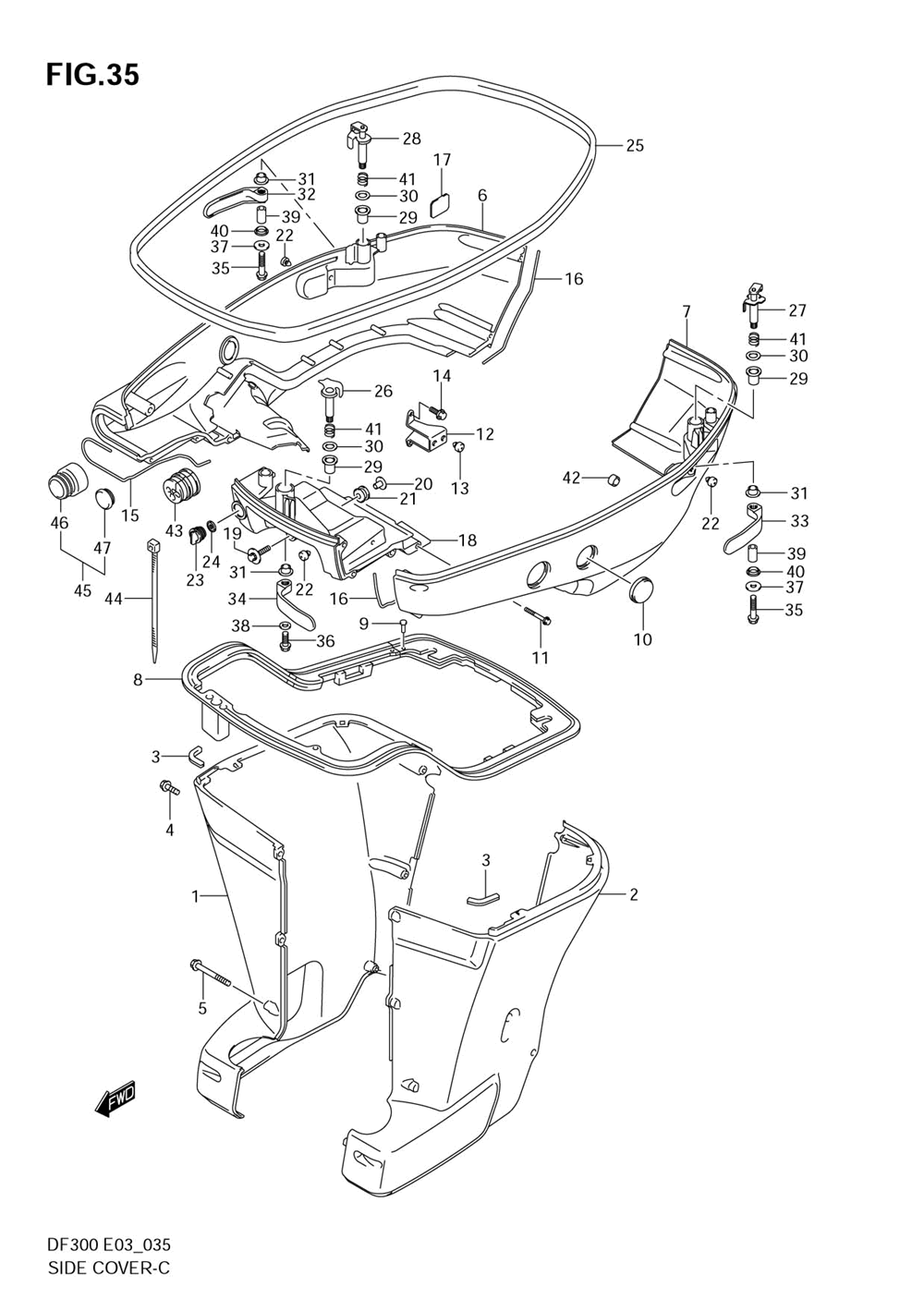

БОКОВАЯ КРЫШКА
БОКОВАЯ КРЫШКА

БОКОВАЯ КРЫШКА

Suzuki Marine DF300

БОКОВАЯ КРЫШКА

#

oem код

название

цена

1

61131-98J00-0EP

Cover, Oil Pan S

Cover, Oil Pan S

2

61141-98J00-0EP

Cover, Oil Pan P

Cover, Oil Pan P

3

Cushion, Oil Pan

Cushion, Oil Pan

4

Screw, Oil Pan C

Screw, Oil Pan C

5

Screw, Oil Pan C

Screw, Oil Pan C

6

61811-98J01-0EP

Cover, Side Stbd

Cover, Side Stbd

7

61821-98J00-0EP

Cover, Side Port

Cover, Side Port

8

Seal, Side Cover

Seal, Side Cover

9

09409-05302-5PK

Штифт

Штифт

10

Plug, Side Cover

Plug, Side Cover

11

Винт

Винт

12

Holder, Side Cov

Holder, Side Cov

13

Cushion, Side Co

Cushion, Side Co

14

..bolt, Lower

..bolt, Lower

15

Seal, Front Pane

Seal, Front Pane

16

Seal, Side Cover

Seal, Side Cover

17

Protector, Side

Protector, Side

18

61831-98J00-0EP

Панель передняя

Панель передняя

19

Болт (8x40)

Болт (8x40)

20

Шайба

Шайба

21

Подушка

Подушка

23

Plug, Water

Plug, Water

24

Gasket, Water Pl

Gasket, Water Pl

25

Rubber, Side Cov

Rubber, Side Cov

26

Shaft Comp, Cove

Shaft Comp, Cove

27

Shaft Comp, Cove

Shaft Comp, Cove

28

Shaft Comp, Cove

Shaft Comp, Cove

29

Bush, Engine Cover Hook Shaft

Bush, Engine Cover Hook Shaft

30

Washer, Engine Cover Hook

Washer, Engine Cover Hook

31

Втулка

Втулка

32

61633-98J00-0EP

Lever, Hook Rear

Lever, Hook Rear

33

61634-98J10-0EP

Lever, Hook Rr P

Lever, Hook Rr P

34

61645-98J00-0EP

Lever, Hook Fron

Lever, Hook Fron

35

Болт

Болт

36

Болт

Болт

37

Washer, Hook Lever Lower

Washer, Hook Lever Lower

38

Washer (8.5x16x1.2)

Washer (8.5x16x1.2)

39

Проставка

Проставка

40

Втулка

Втулка

41

Spring, Hook Sha

Spring, Hook Sha

42

Cushion, Side Cover

Cushion, Side Cover

43

Grommet, R/con C

Grommet, R/con C

44

.clamp

.clamp

45

Rigging Kit Ada

Rigging Kit Ada

46

Adapter, Hose

Adapter, Hose

47

Заглушка

Заглушка
