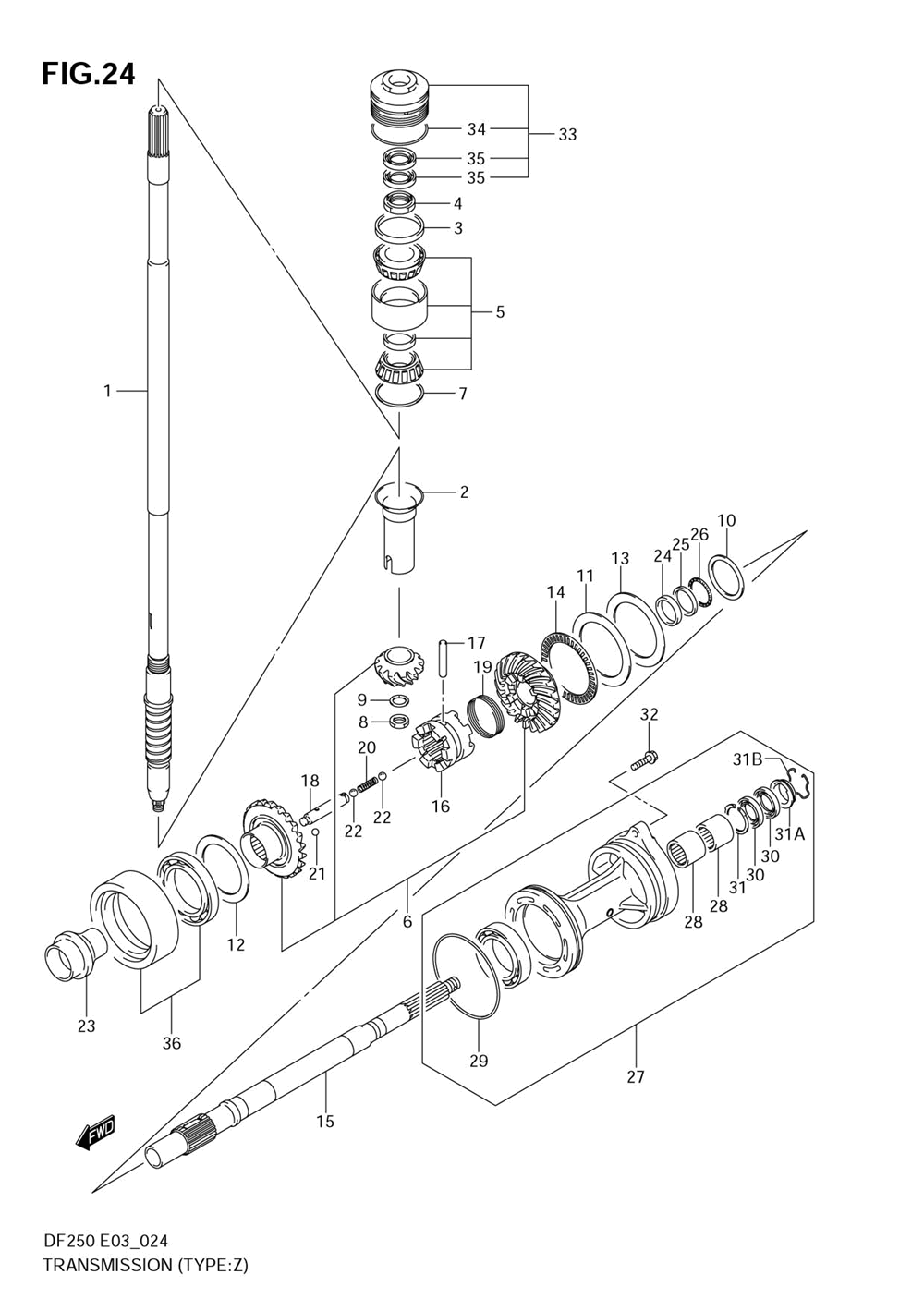

Трансмиссия (DT200Z)
Трансмиссия (DT200Z)

Трансмиссия (DT200Z)

Suzuki Marine DF200 225 250

oem код

название

цена

1-1

57110-93J00

Shaft Comp, Driv

1-2

Shaft Comp, Driv

Collar, Drive Sh

Spacer, Drive Sf

Nut, Drive Sft B

Bearing, Drive S

6-1

57300-93832

Pinion / Gear S

6-2

57300-93851

Pinion / Gear S (df200z:510017~df225z:510003~df250z:510048~)

7-1

09181-60004

Shim, Drive Shaf

7-2

09181-60005

Shim, Drive Shaf

7-3

09181-60006

Shim, Drive Shaf

7-4

09181-60007

Shim, Drive Shaf

7-5

09181-60008

Shim, Drive Shaf

7-6

09181-60009

Shim, Drive Shaf

7-7

09181-60010

Shim, Drive Shaf

7-8

09181-60011

Shim, Drive Shaf

7-8

09181-60012

Shim, Drive Shaf

7-10

09181-60013

Shim, Drive Shaf

09140-16021

Nut, Pinion

08221-16256

Washer, Pinion Nut

10-1

09160-35015

Washer, 35x46x0.

10-2

09160-35013

Washer, 35x46x0.

10-3

09160-35010

Washer, 35x46x1.

10-4

09160-35004

Washer, 35x46x1.

10-5

09160-35006

Washer, 35x46x0.

10-6

09160-35002

Washer, 35x46x1.

10-7

09160-35008

Washer, 35x46x0.

10-8

09160-35003

Washer, 35x46x1.

10-9

09160-35009

Washer, 35x46x1.

09160-75002

Washer, Thrust F

13-1

09181-75018

Shim, Forward Ge

13-2

09181-75019

Shim (75x100x0.55)

13-3

09181-75012

Shim, Forward Ge

13-4

09181-75013

Shim, Forward Ge

13-5

09181-75008

Shim, Forward Ge

13-6

09181-75014

Shim, Forward Ge

13-7

09181-75009

Shim, Forward Ge

13-8

09181-75015

Shim, Forward Ge

13-9

09181-75010

Shim, Forward Ge

13-10

09181-75016

Shim, Forward Ge

13-11

09181-75011

Shim, Forward Ge

09269-75002

Подшипник опорный

15-1

57610-93J10

Shaft Comp, Prop

15-2

57610-93J20

Shaft Comp, Pro

16-1

57621-93J00

Муфта сцепления

16-2

57621-93J10

Shifter, Clutch (df200z:510017~df225z:510003~df250z:510048~)

16-3

Муфта сцепления

Штифт

Pin, Connector

Spring, Clutch D

Spring, Detent

Шарик

Шарик

Spacer, Forward

Washer, Prop Rev (30x47x6)

09160-30056

Washer, Prop Rev (32x47x3)

09269-30014

Bearing, Prop Shaft Rev Thrus

27-1

Housing Comp, Pr

.bearing

O-ring, Prop(id:

Oil Seal 30x45x

.circlip (df200z:421178~df225z:421224~df250z:421437~)

31A

56123-93J00

Protector, Oil S (df200z:510066~df225z:510042~df250z:510251~)

31B

09387-45001

Set Ring (sus) (df200z:510066~df225z:510042~df250z:510251~)

Болт

Housing Comp, Dr

O-ring(id:65.4,

.oil Seal

Housing Comp, Re
