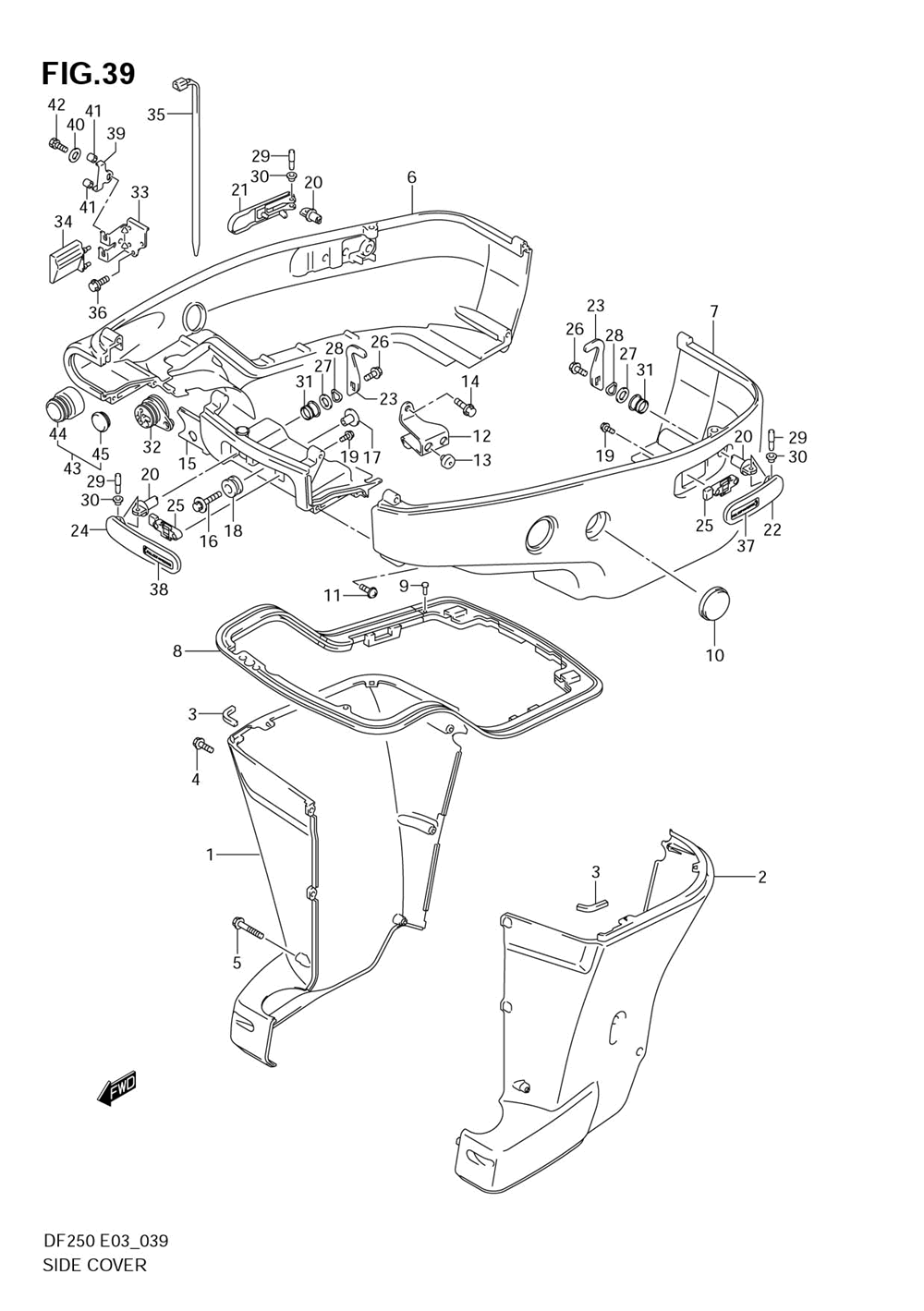

БОКОВАЯ КРЫШКА
БОКОВАЯ КРЫШКА

БОКОВАЯ КРЫШКА

Suzuki Marine DF200 225 250

oem код

название

цена

Cover, Oil Pan S

Cover, Oil Pan P

Cushion, Oil Pan

Screw, Oil Pan C

Screw, Oil Pan C

6-1

61810-93801-0EP

Cover Set, Side (->61810-93800-0epcover Set, Side)

6-2

61811-93J01-0EP

Cover, Sode Stbd (df200t:421892~df200z:421150~df225t:421651~df225z:421173~df250t:422378~df250z:421385~)

7-1

61821-93J00-0EP

(->61810-93800-0epcover Set, Side)

7-2

61821-93J03-0EP

Cover, Side Port (df200t:421892~df200z:421150~df225t:421651~df225z:421173~df250t:422378~df250z:421385~)

Seal, Side Cover

Штифт

Plug, Side Cover

Винт

Holder, Side Cov

Cushion, Side Co

..bolt, Lower

Панель передняя

Болт (8x40)

Шайба

Подушка

Болт

Shaft, Engine Co

Lever, Hook Rear

Lever, Hook Rear

Hook, Engine Cov

Lever, Hook Fron

Latch, Hook Leve

Болт М6x12

Washer (13.2x25x1.0)

Шайба

Pin, Hook Lever,

Bush, Hook Lever

Втулка

32-1

61124-93J00

Grommet, R/con C

32-2

61124-93J20

Grommet, R/con C

33-1

67341-93J00

Holder, R/con Ca

33-2

Holder, Remocon

Protector, R/con

.clamp

.bolt, Remocon Cable Holder

Label, Hook Leve

Label, Hook Leve

Stopper, Remocon

.washer, Throttle Lever

09352-70103-600

Cushion, R/con Cable Stopper (model:06,07l:600->14)

Болт

Rigging Kit Ada

Adapter, Hose

Заглушка

6-1

61810-93802-0EP

Cover Set, Side (->61810-93800-0epcover Set, Side)
