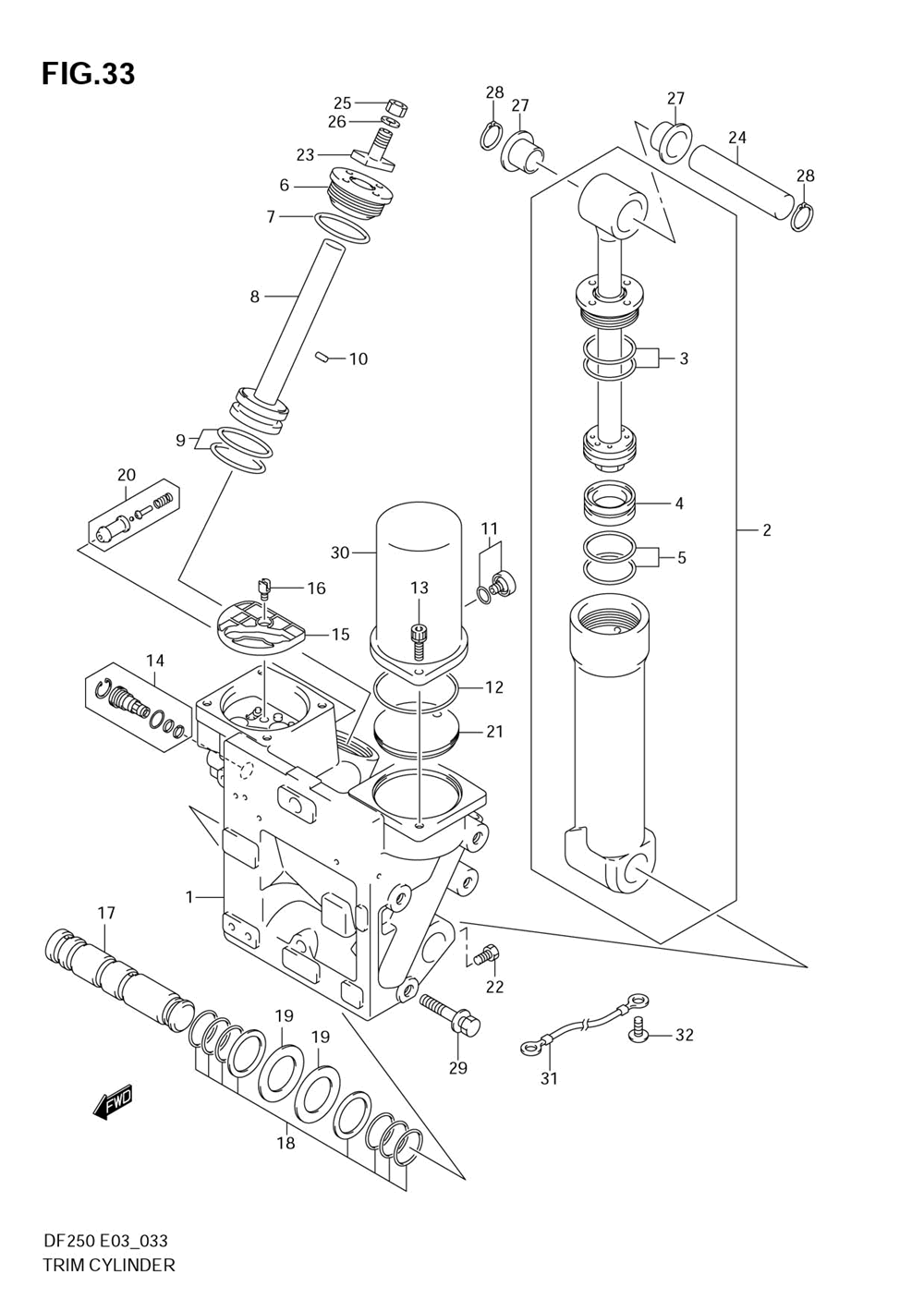

ЦИЛИНДР НАКЛОНА

Suzuki Marine DF200 225 250
Suzuki Marine
#oem кодцена
1
48500-93J03
Manifold Assy (inc.no.6~10, 15<-48641-93j00)
2
48400-93J04
Cylinder Assy
3
48405-93J00
O Ring Set
4
48650-93J00
Поршень
5
48627-93J00
O Ring Set
6
48630-93J00
Rod Guide
7
48633-93J00
Кольцо
8
48610-93J01
Piston / Ram
9
48605-93J00
O Ring Set
10
48691-93J00
Обратный клапан
11
48572-87J10
Заглушка
12
48585-95E00
Oring, Ptt
13
48862-87J10
Bolt, Tank
14
48864-93J00
Valve, Manual
15
48582-95E01
Фильтр
16
48583-95E00
Joint, Drive
17
48121-93J01
Вал
18
48125-93J00
O Ring Set
19
48126-93J00
Шайба
20
48320-93J00
Valve Set, Up Bl
21
48573-93J00
Cover Comp
22
48128-93J00
Болт
23
48311-93J00
Pad, Trim Cylind
24
48321-93J00
Shaft, Tilt Cyl
25
09140-10031
Гайка
26
09162-10005
Шайба
27
09306-24001
Bush, Tilt Cyl U
28
09380-21002
Circlip, Tilt Cy
29
09116-10136
Bolt, Oil Pan No
30
48571-93J00
Reservoir Tank
31
36895-87D01
Lead, Swivel To (df200t:680188~df225t:680175~df250t:680339~df200z:680026~df225z:680048~df250z:680144~)
32
09125-05050
Screw, Lead (5x8) (df200t:680188~df225t:680175~df250t:680339~df200z:680026~df225z:680048~df250z:680144~)
