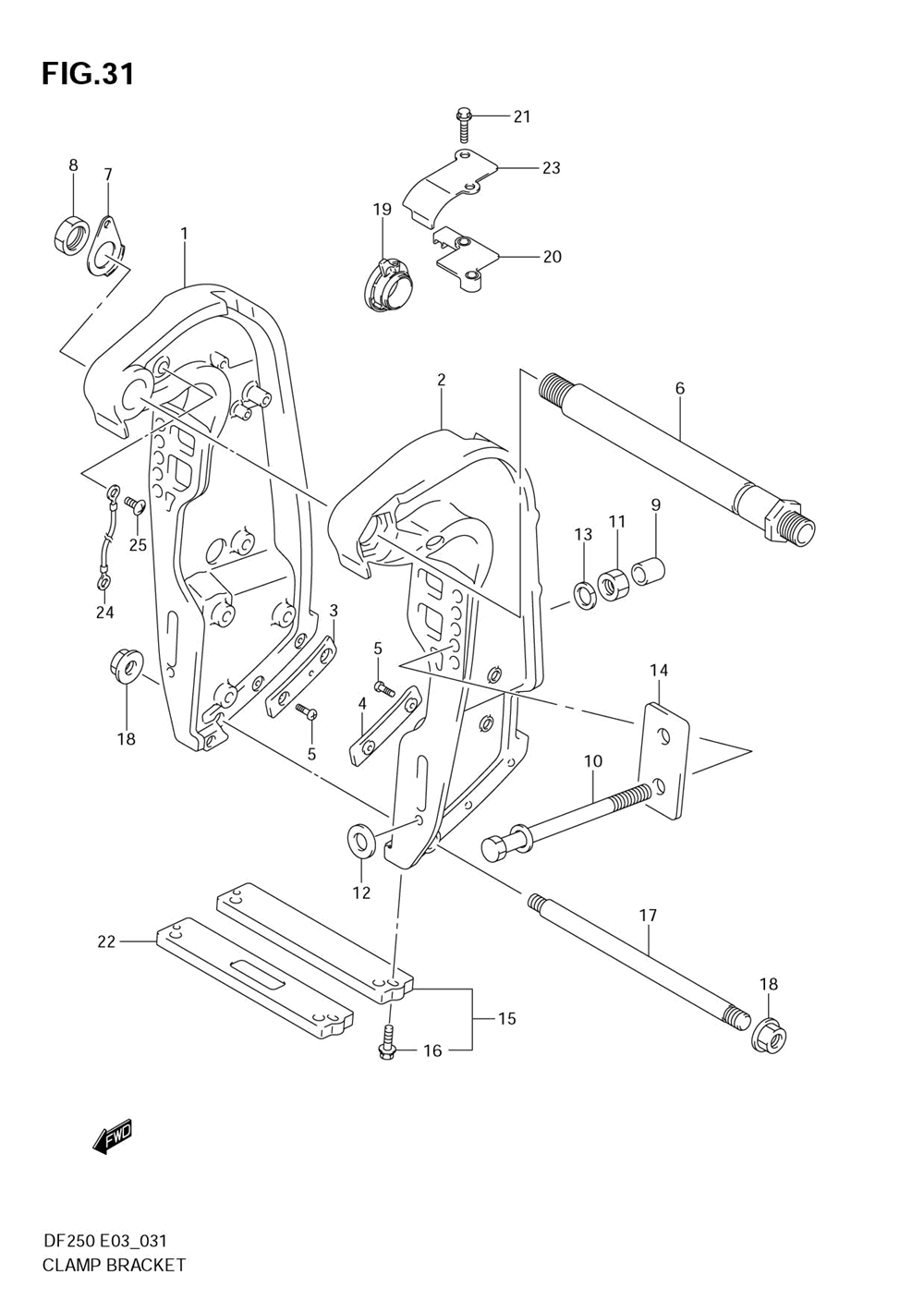

КРОНШТЕЙН КРЕПЛЕНИЯ К ТРАНЦУ

Suzuki Marine DF200 225 250
Suzuki Marine
#oem кодцена
1-2
41111-93J02-0EP
Bracket, Comp St (df200/225df250t:421423~df250z:421140~)
1-4
41111-93J12-0EP
Bracket, Clamp S (df200t:680188~df225t:680175~df250t:680339~df200z:680026~df225z:680048~df250z:680144~)
2-2
41121-93J04-0EP
Bracket, Clamp P (df200/225df250t:421423~df250z:421140~)
3
41117-93J01
Plate, Clamp Bra (df200/225df250t:421423~df250z:421140~)
4
41122-93J01
Plate, Clamp Bra (df200/225df250t:421423~df250z:421140~)
5
09125-06063
Screw (6x10) (df200/225df250t:421423~df250z:421140~)
6-1
41130-93J00
Shaft Comp, Clam
6-2
41130-93J02
Shaft Comp, Clam (df200t:510464~df225t:510231~df250t:510954~df200z:510066~df225z:510042~df250z:510251~->41130-93j02used With 43211-93j00(2pc))
7-1
41135-93J00
Washer, Clamp Br
7-2
41135-93J10
Шайба
8
09159-22006
Гайка
9
41153-93J00
Крышка
10-1
09100-12086
Bolt, Transom
10-2
09100-12092
Bolt, Transom
10-3
09100-12085
Bolt, 115mm Long
11
09159-12062
Гайка
12
09160-13017
Washer, Transom
13
09160-13016
Washer, Transom
14
41155-93J01
Пластина
15
55320-94900
Anode Set
16
09116-06121
.bolt (6x25)
17
45421-87D01
Pin, Tilt Lock
18
09159-14020
Гайка
19
48140-93J00
Cam Assy, Tilt L
20
48144-93J00
Holder, Tilt Lim
21-1
01550-06207
Болт
21-2
09103-06278
Bolt (6x25) (df200t:510780~df225t:510440~df250t:511423~df200z:510146~df225z:510117~df250z:510474~)
22
55321-94910
Magniesium Anod
23
48145-93J00
Cover, Tilt Limi (df200t:510780~df225t:510440~df250t:511423~df200z:510146~df225z:510117~df250z:510474~)
24
36894-87D00
Lead, Clamp To S (df200t:680188~df225t:680175~df250t:680339~df200z:680026~df225z:680048~df250z:680144~)
6-2
41130-93J10
Shaft, Clamp Bra (df200t:510464~df225t:510231~df250t:510954~df200z:510066~df225z:510042~df250z:510251~->41130-93j02used With 43211-93j00(2pc))
