Gear case (df200z Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF200 225 250 (2004)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2004
DF200 225 250

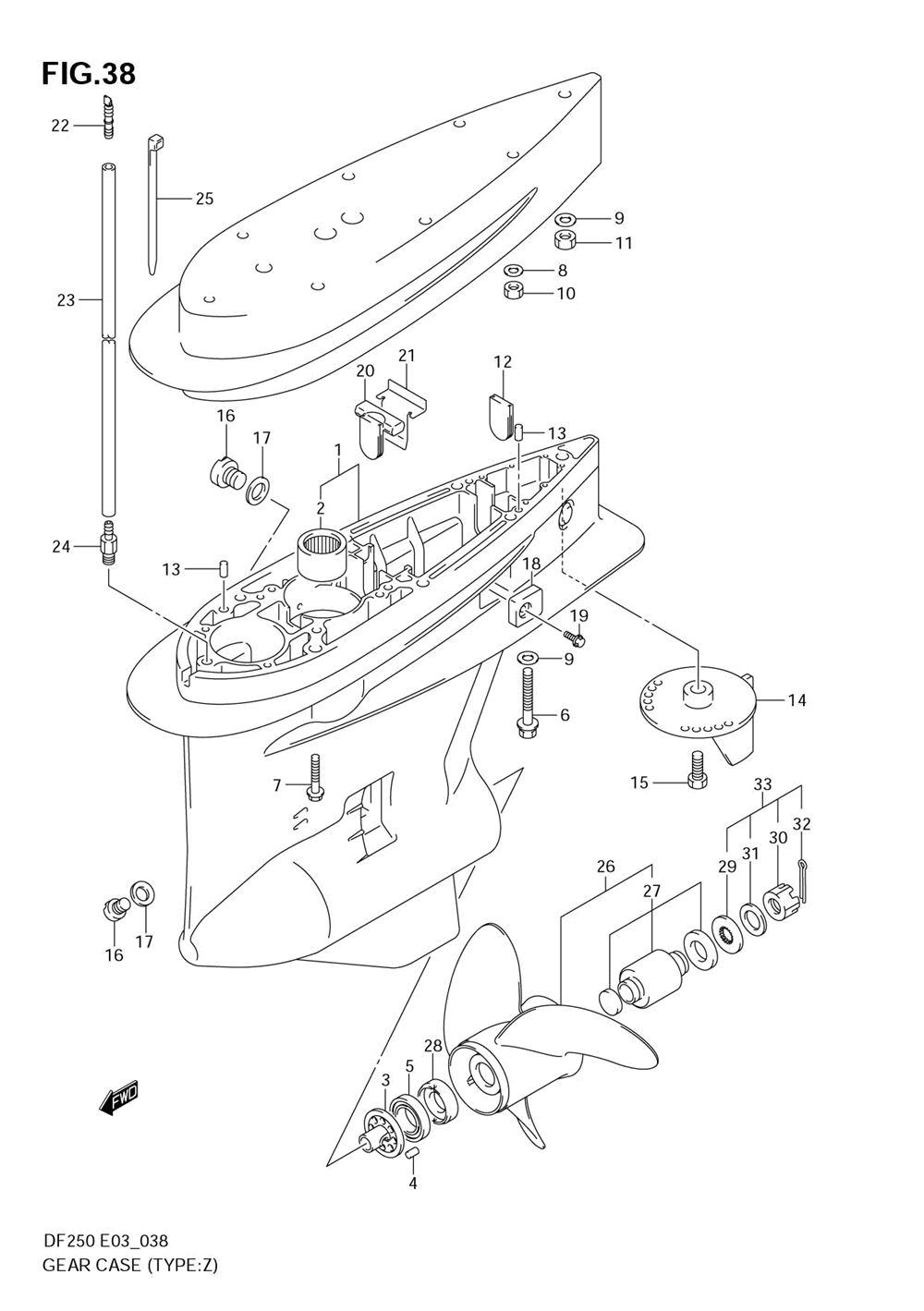

Gear case (df200z
Gear case (df200z

Gear case (df200z

Suzuki Marine DF200 225 250

oem код

название

цена

1-1

55110-93J30-0EP

Case Comp, Gear

2-1

09263-32016

Brg, Pinion, 32x4

2-2

09263-32017

.bearing, Pinion (df200z:510023~df225z:510008~df250z:510070~)

56145-93J00

Housing, Shift C

04221-08129

.pin, Shift Cam Housing

.bearing, Fwd Thrust

Bolt L:70(sus)

Bolt, 10x55

Шайба

.washer (12.5x22x2.5)

Гайка

Гайка

Уплотнитель

Штифт

Tab, Trim

Bolt, 8x22

16-1

55128-93J00

Plug, Drain (df200z:510023~df225z:510008~df250z:510070~)

17-1

09168-10034

Gasket, Drain Pl (df200z:510023~df225z:510008~df250z:510070~)

Zinc Set, Protec

Болт 6x15

Rubber, Exhaust

Plate, Exhaust S

Union, Speedomet

23-1

09355-40805-00B

Hose (type:xl:2000->1600l:2000->1700 Model:05~07type:xxl:2000->1700)

09362-09008

Ниппель

09407-14407

Стяжка L-140

26-1

99105-0080L-185

Sspropcrv63x16x

26-2

99105-0080L-20P

Sspropcrv63x16x

26-3

99105-0080L-215

Sspropcrv63x16x

26-4

99105-0080L-23P

Sspropcrv63x16x

26-5

99105-0080L-17P

Sspropcrdfv63x1

26-6

99105-0080L-245

Sspropcrv63x16x

58105-93J00

Bush Set, Propel

28-1

Stopper, Propell

Spacer, Nut(t:6.

Гайка

Washer (18.5x31x1.0)

Cotter Pin (l:25)

Prop Hdwr V-6 M

Lu Sealkit Df V

28-1

57632-93J11

Stopper, Propell
