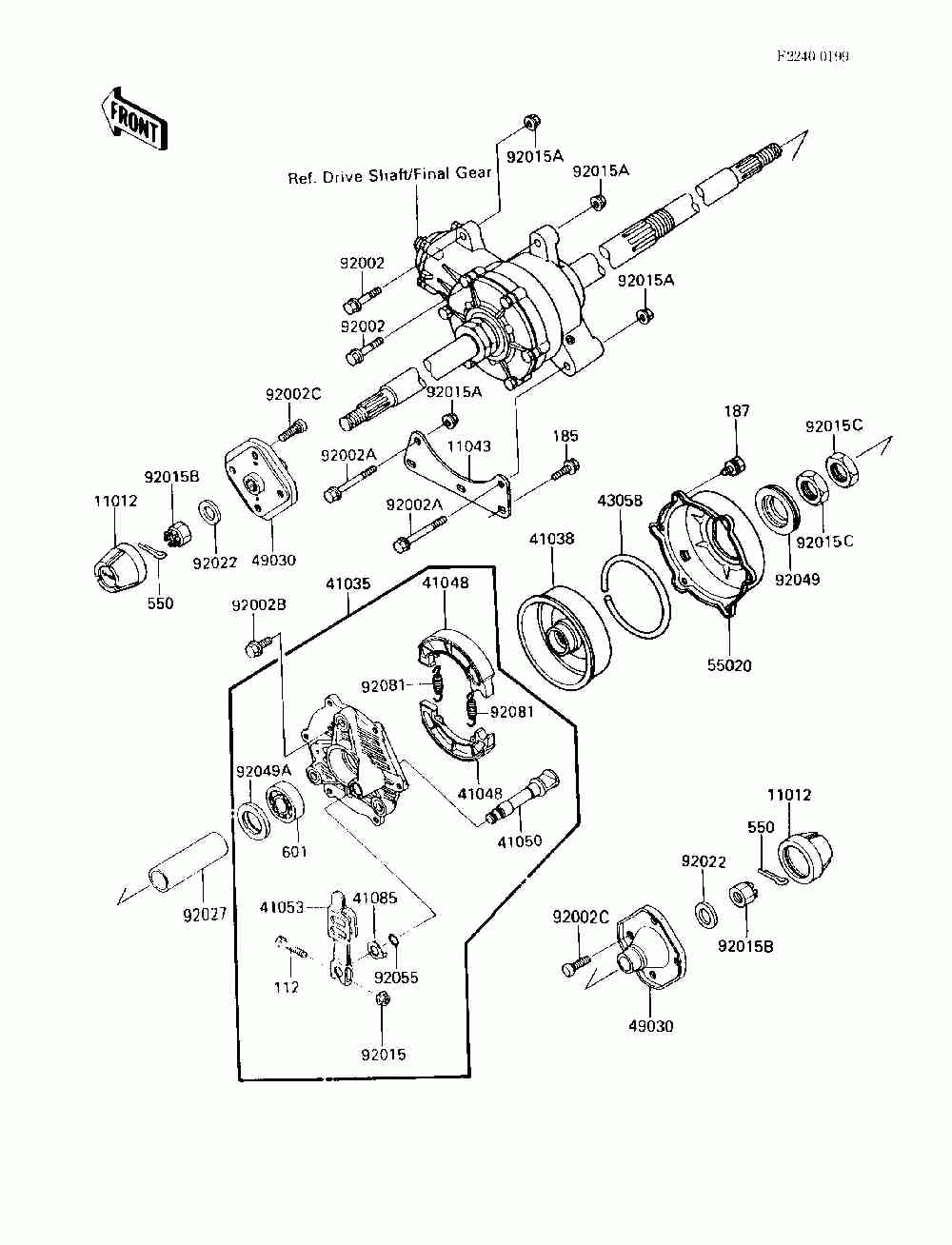

Задняя ступица колеса

Kawasaki Bayou 185 (KLF185-A3)

Задняя ступица колеса

#

oem код

название

цена

11012

Колпак колеса

Колпак колеса

41048

Shoe-brake

Shoe-brake

41085

Indicator

Indicator

92002A

Bolt, Flanged, 10x70

Bolt, Flanged, 10x70

92002C

Bolt, 10mm

Bolt, 10mm

92015

Nut, 6mm

Nut, 6mm

92015A

Nut, Flanged, 10mm

Nut, Flanged, 10mm

92015B

Nut Castle, 18mm

Nut Castle, 18mm

92015C

Nut, Lock, 32mm

Nut, Lock, 32mm

92022

Washer, 18.5x52x4.5

Washer, 18.5x52x4.5

92049A

Seal-oil, Rear Hub

Seal-oil, Rear Hub

92055

Ring-o, Id=16.8

Ring-o, Id=16.8

92081

Spring-brake Shoe

Spring-brake Shoe

112

Болт

Болт

550

Pin Cotter 4.0x30

Pin Cotter 4.0x30

11043

Крепление

Крепление

41035

Panel-assy-brake, Rr

Panel-assy-brake, Rr

41038

Drum, Rear Brake

Drum, Rear Brake

41050

Cam-brake

Cam-brake

41053

Lever-brake Cam

Lever-brake Cam

43058

Ring, Rear Brake Drum

Ring, Rear Brake Drum

49030

Hub, Rr

Hub, Rr

55020

Guard, Rr Brake Drum

Guard, Rr Brake Drum

92002

Bolt, Hex Head, 10x38

Bolt, Hex Head, 10x38

92002B

Bolt, Flanged, 10x20

Bolt, Flanged, 10x20

92027

Collar, Rr Hub, L=124.5

Collar, Rr Hub, L=124.5

92049

Seal-oil, Rr Brake Dru

Seal-oil, Rr Brake Dru

185

Bolt-upset-wsp-small

Bolt-upset-wsp-small

187

Bolt-upset-wsp

Bolt-upset-wsp

601

Подшипник

Подшипник

112

Болт

Болт
