Цилиндр & Картер

Evinrude E300DPXSCS
Evinrude

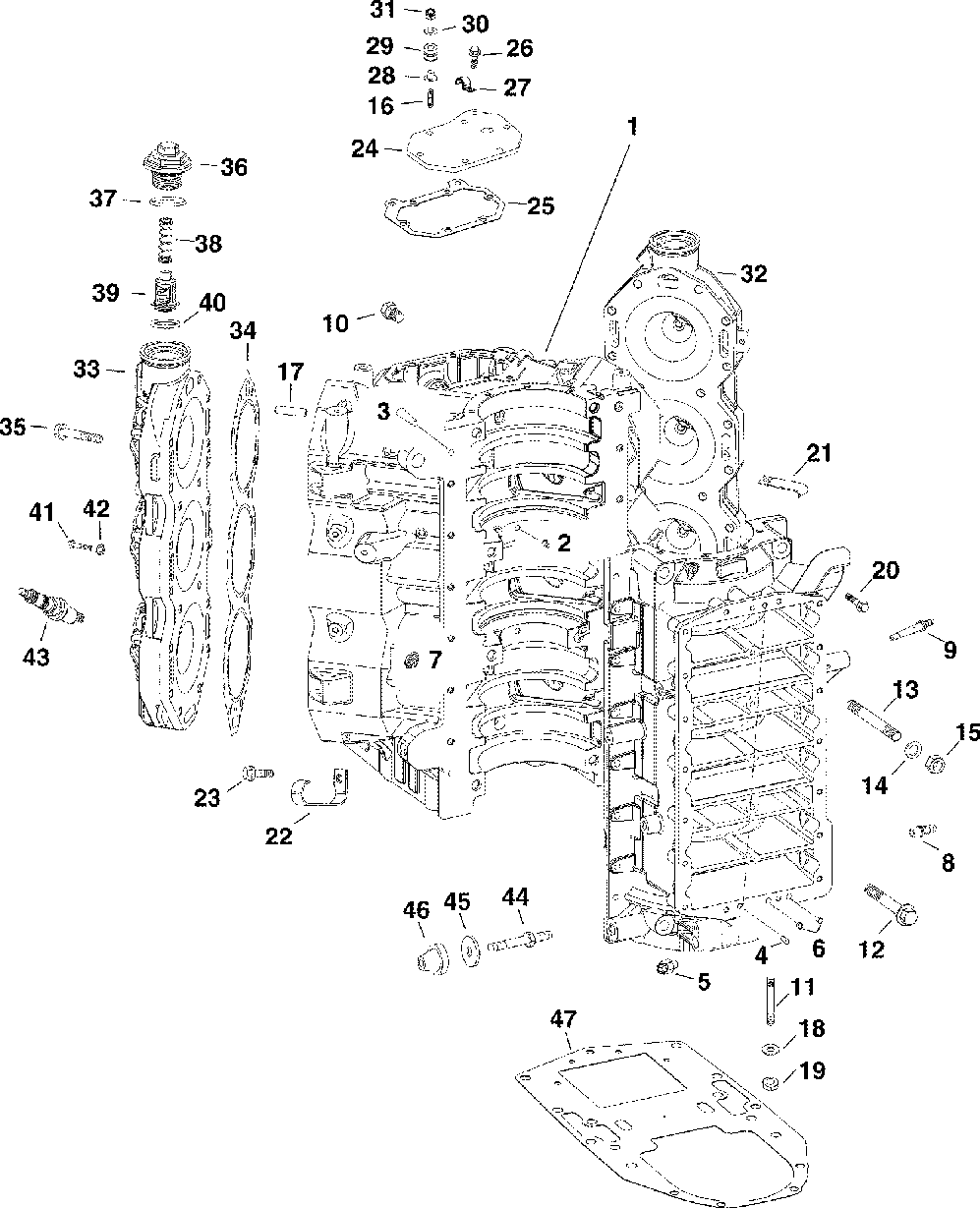

#oem кодцена
1
5007297
Cyl, Crnk & Pin Ay
2
0304178
Центрирующая втулка
3
0331095
Taper Pin-cyl.
4
0331880
Штифт
5
0319253
Lub Fitting
6
0435681
Valve Ay, Check (main Bearing Drain )
7
5000477
Valve Ay, Check
NS
0321598
Nipple (see "recirculation Hoses" - Not Shown )
NS
0348471
Nipple (see "recirculation Hoses" - Not Shown )
NS
0353862
Nipple (see "recirculation Hoses" - Not Shown )
NS
0437784
Valve Ay, Elbow Ck (see "recirculation Hoses" - Not Shown )
NS
0348478
Valve, Check (see "recirculation Hoses" - Not Shown )
NS
0352336
Fitting, Tee (see "recirculation Hoses" - Not Shown )
NS
0772569
Drain Hose 3/32" (see "recirculation Hoses" - Not Shown )
NS
0772571
Hose 5/32" Id (see "recirculation Hoses" - Not Shown )
8
0345702
Ниппель
9
0344821
Ниппель
NS
0346137
Nipple - Elbow
10
0332135
Заглушка
11
0314616
Шпилька
12
0914024
Винт
13
0348843
Шпилька
14
0330265
Шайба
15
0332291
Nut-tilt Bolt
16
0344402
Шпилька
17
0346237
Dam, Water
18
0301250
Шайба
19
0306422
Гайка
20
0324334
Screw, 5 Pk
21
0316487
Седло
22
0351745
Clamp, "j"
23
0335200
Винт
24
0347318
Cover, Water Plate
25
0344472
Gasket (included In Cyl/crankcase Gasket & Seal Kit )
26
0335687
Винт
27
0352767
Clamp, Half Clip
28
0338558
Втулка с фланцем
29
0333040
Изолятор
30
0328703
Шайба
31
0313022
Гайка
32
5007606
Head & Nipple Ay
33
5007607
Head & Nipple Ay
NS
0352881
Pin, Fuel Deflector
34
0346007
Gasket, Cyl Head V6 (included In Cyl/crankcase Gasket & Seal Kit )
35
0352913
Винт
36
0344771
Крышка термостата
37
0301917
O Ring (included In Cyl/crankcase Gasket & Seal Kit )
38
0345171
Spring, Thermostat
39
5005440
Термостат
40
0339299
Seal, Thermostat (included In Cyl/crankcase Gasket & Seal Kit )
42
0328701
Гровер
43
5007597
Spark Plug, Qc8wep
44
0329743
Шпилька
45
0349557
Mount
46
0349556
Шайба
47
0353224
Gasket (included In Cyl/crankcase Gasket & Seal Kit )
41
0335200
Винт
