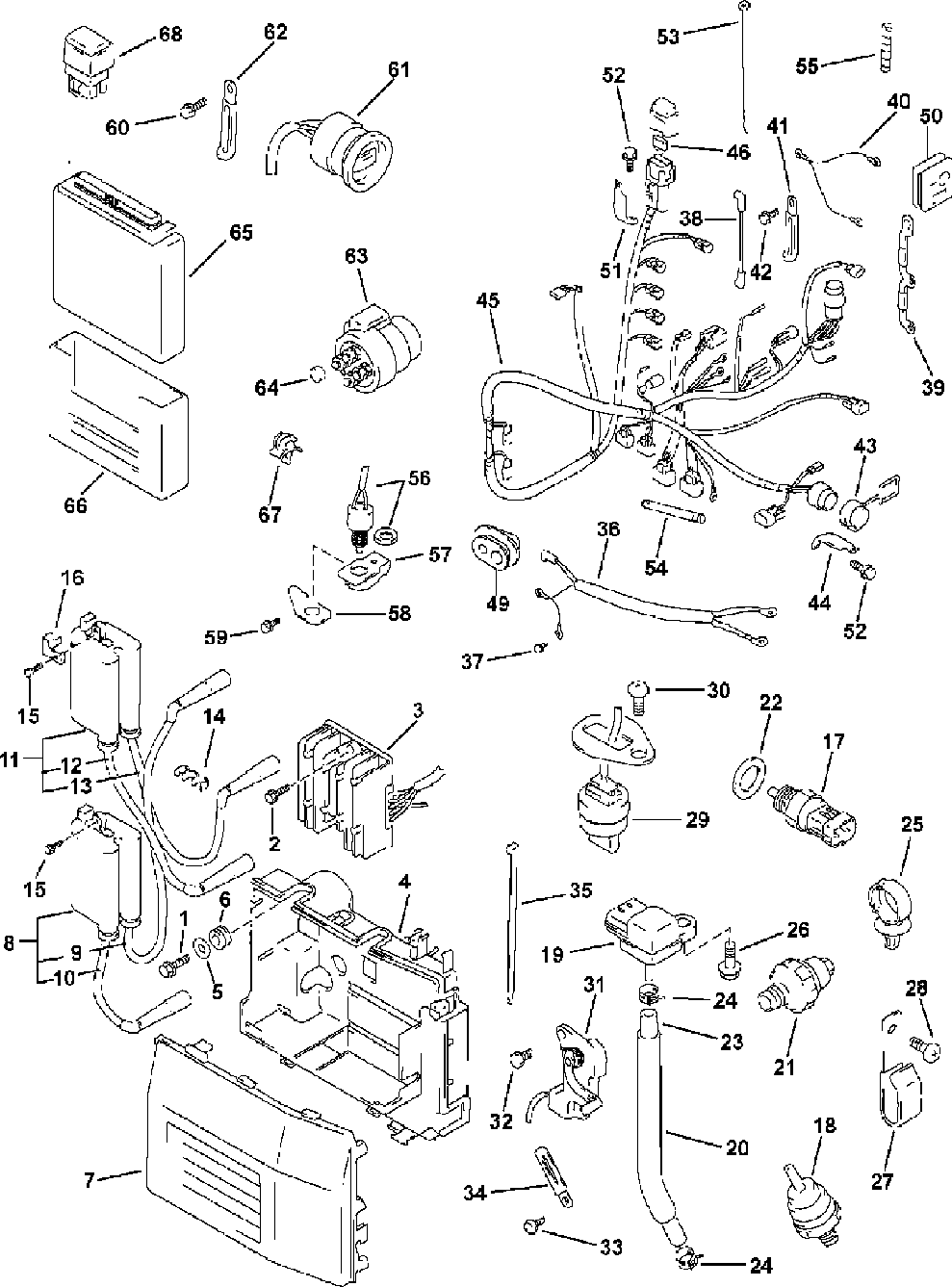

Электрическая система

Evinrude E70PL4SIA 4-Stroke, Elec. Start, TNT, Blue, 20 IN. shaft
Evinrude
#oem кодцена
1
5030988
Болт
2
5030001
Болт
3
5030795
Rectifier & Reg Ay
4
5035801
Holder, Elec Parts
5
5030428
Washer, 6.5x22x1.6
6
5030559
Подушка
7
5030797
Cvr, Elec Parts Hld
8
5030798
Coil Ay, Ignition
9
5030801
Cord, Tension No.1
10
5030803
Sp Plg Lead No. 4
11
5030799
Coil Ay, Ignition
12
5030802
Sp Plg Lead No.2
13
5030804
Sp Plg Lead No.3
14
5030590
Зажим
15
5030000
Болт
16
5031089
Protector, Ign Coil
17
5030687
Датчик
18
5030749
Pulse Limiter
19
5030757
Sensor, Press'r/map
20
5030810
Protector, Pres Hse
21
5030826
Switch Ay, Oil Pres
22
5030467
Gasket, 12.2x21x0.8
23
5030562
Hose ((cut Length From (600mm) Roll P/n 5031275.) )
24
5030576
Зажим
25
5031279
Зажим
26
5030989
Болт
27
5030585
Зажим
28
5031012
Винт
29
5030813
Sensor, Cyl Temp
30
5031009
Screw, 6x12
31
5036054
Sender Ay, Trim
32
5031117
Bolt, Sender
33
5030409
Screw, 6x10
34
5030135
Clamp, L:65
35
5031118
Tie Strap
36
5032451
Cable Ay, Battery
37
5030993
Болт
38
5030807
Cable, Term-relay
39
5030808
Plate, Ptt Relay
40
5030809
Cable Ay
41
5030588
Зажим
42
5030987
Болт
43
5030800
Cap, Service Conn
44
5030820
Bracket, Fuse Case
45
5032452
Harness Ay, Wiring
46
5032630
Fuse (30a)
49
5030817
Grommet, Ptt Cable
50
5030818
Grommet, Cable
53
0320107
Стяжка (отпускается по 100 шт)
54
5031119
Гильца
55
5030832
Spiral Wrap
56
5030823
Switch Ay, Neutral
57
5030824
Actuator, (clip)
58
5030825
Bracket, Rvs Sw
61
5037191
Выключатель
63
5031483
Relay Assy, Trim
64
5030529
Крышка
65
5035813
Ecm, J70 Models
66
5032454
Cushion, Eng Contro
67
5030583
Зажим
68
5030833
Relay, Fuel Inj
23
5031275
Hose ((cut Length From (600mm) Roll P/n 5031275.) )
41
5030135
Clamp, L:65
52
5030988
Болт
59
5030987
Болт
60
5030989
Болт
62
5030135
Clamp, L:65
