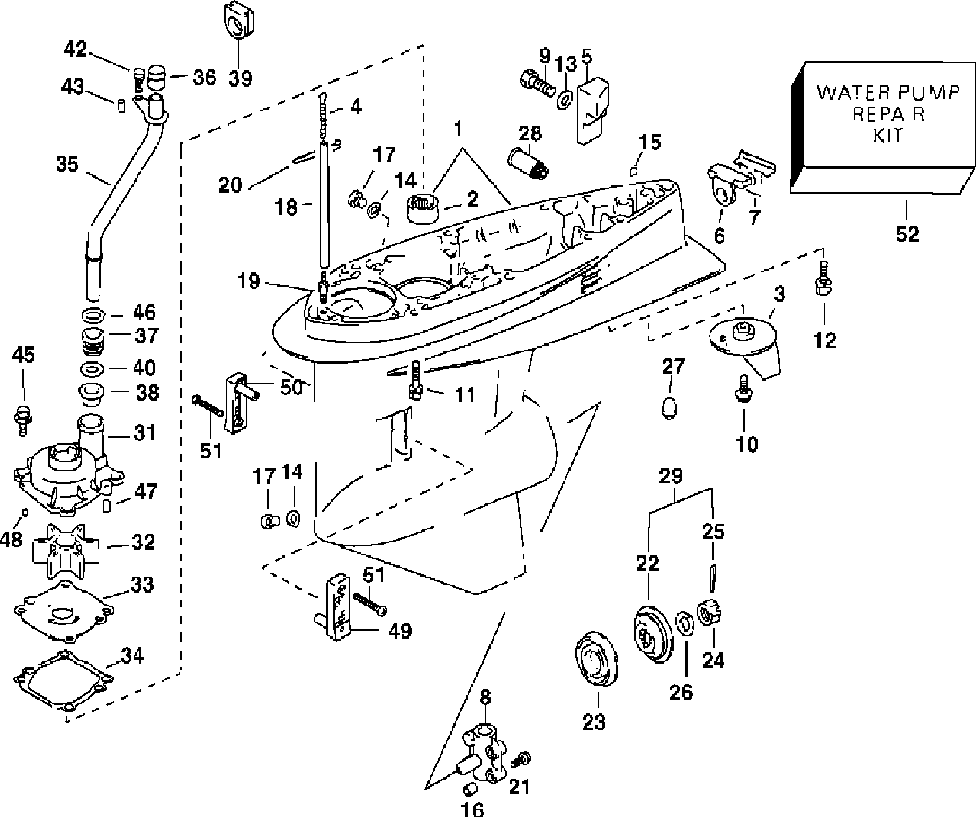

Редуктор Каталог оригинальных запчастей для лодочных моторов Evinrude E70PL4SIA 4-Stroke, Elec. Start, TNT, Blue, 20 IN. shaft (2001)

Редуктор

Evinrude E70PL4SIA 4-Stroke, Elec. Start, TNT, Blue, 20 IN. shaft

oem код

название

цена

5032540

G-case&bearing Blu ((included In Service Gearcase Assembly (not Shown).) )

5032541

Bearing, Pinion ((included In Service Gearcase Assembly (not Shown).) )

5032929

Trim Tab 60-140std ((included In Service Gearcase Assembly (not Shown).) )

5030906

Union ((included In Service Gearcase Assembly (not Shown).) )

5032930

Anode, Gear Case ((included In Service Gearcase Assembly (not Shown).) )

5037215

Seal ((included In Service Gearcase Assembly (not Shown).) )

5032545

Plate, Exh Seal ((included In Service Gearcase Assembly (not Shown).) )

5036740

Housing, Shift Cam ((included In Service Gearcase Assembly (not Shown).) )

5030338

Болт М6x12

5034400

Bolt (8x22mm) ((included In Service Gearcase Assembly (not Shown).) )

Bolt, (l55)

Bolt, 10x80

Washer, 6.5x15x1

Fill Plug Washer ((included In Service Gearcase Assembly (not Shown). Included In Gearcase Seal Kit.) )

5030511

Pin ((included In Service Gearcase Assembly (not Shown).) )

5032549

Pin ((included In Service Gearcase Assembly (not Shown).) )

5030094

Plug, Drain, 10x7.5 ((included In Service Gearcase Assembly (not Shown).) )

5030564

Hose ((included In Service Gearcase Assembly (not Shown).) )

5030562

Hose ((included In Service Gearcase Assembly (not Shown).) )

5030589

Clamp(l:125) ((included In Service Gearcase Assembly (not Shown).) )

5030001

Bolt ((included In Service Gearcase Assembly (not Shown).) )

Spacer, Prop Nut

Упорная шайба

Гайка винта гребного

Шплинт

Шайба

Plug, Water Tube

Flush Attachment

Propeller Nut Kit

Kit, Seal Gearcase ( Also Order Kit 5034776)

5030722

Корпус водной помпы

5030723

Implr, Water Pump ((included In Water Pump Repair Kit.) )

5030724

Panel, Pump ((included In Water Pump Repair Kit.) )

5030725

Gasket ((included In Gearcase Seal Kit. Included In Water Pump Repair Kit.) )

Tube, Water L

Втулка

Bush Lower

Bush, Pump Case

Spacer, Tube

Фильтр

Bolt, M6x16

Штифт

Screw, 5x12

Bolt, 8x25

Шайба

Штифт

Key, Wtr Pmp Impel ((included In Water Pump Repair Kit.) )

5032594

Filter, Water, Port ((included In Service Gearcase Assembly (not Shown).) )

5032595

Filter, Water, Strb ((included In Service Gearcase Assembly (not Shown).) )

5032596

Screw ((included In Service Gearcase Assembly (not Shown).) )

5031731

Wtr Pmp & Shft Con

5036614

G-case&brg, 60-115 ((included In Service Gearcase Assembly (not Shown).) )

5031275

Hose ((included In Service Gearcase Assembly (not Shown).) )

5037170

Panel ((included In Water Pump Repair Kit.) )
