Gearcase - standard rotation - fpl - fl models Каталог оригинальных запчастей для лодочных моторов Evinrude RE135FCSIF FFI, elec start, TNT, 25 in shaft, wht, cntr rotate (2001)

Главная
Каталог оригинальных запчастей для лодочных моторов
Evinrude
2001
RE135FCSIF FFI, elec start, TNT, 25 in shaft, wht, cntr rotate

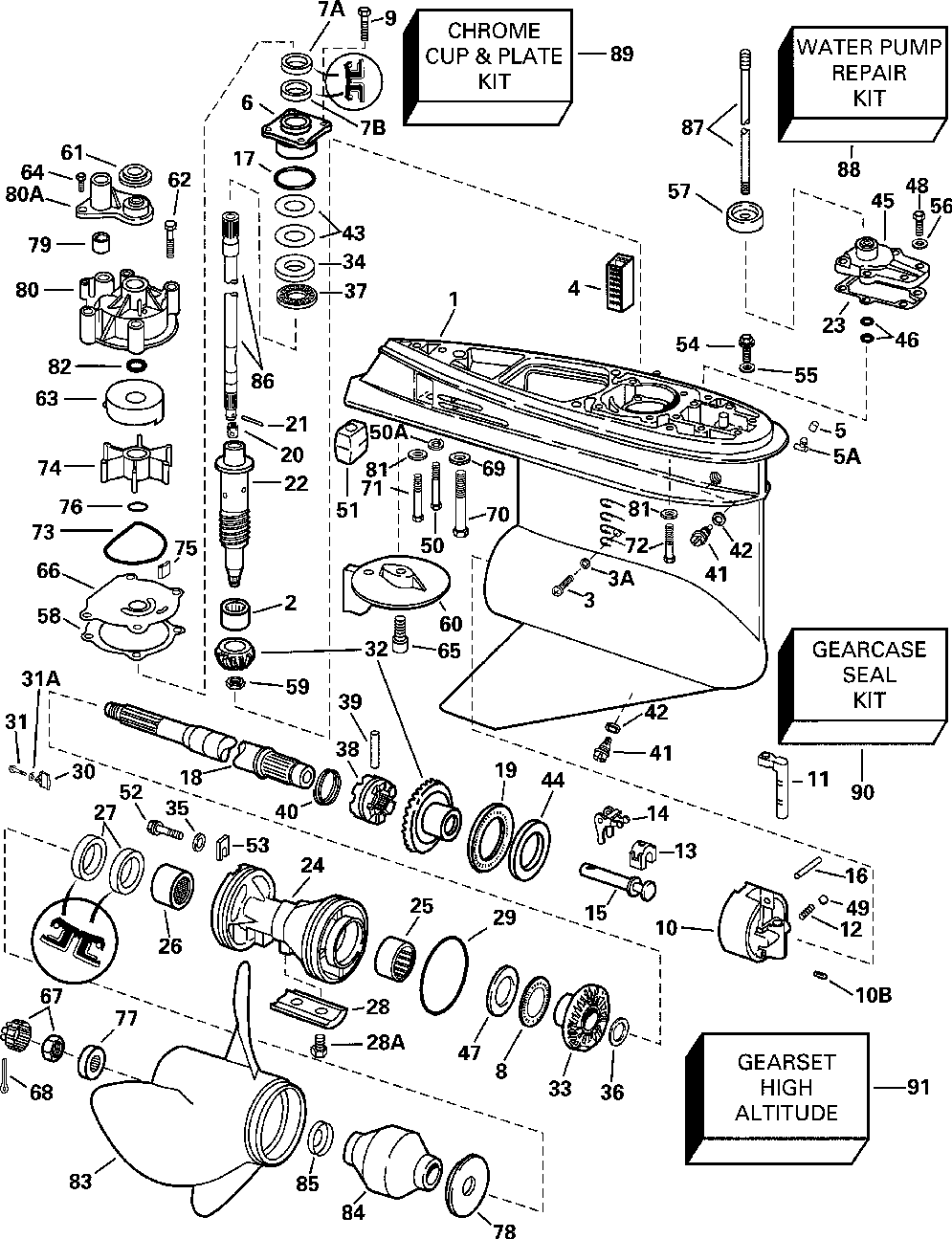

Gearcase - standard rotation - fpl - fl models
Gearcase - standard rotation - fpl - fl models

Gearcase - standard rotation - fpl - fl models

Evinrude RE135FCSIF FFI, elec start, TNT, 25 in shaft, wht, cntr rotate

Gearcase - standard rotation - fpl - fl models

oem код

название

цена

5004635

See Sb 2002-02p ((not Shown.) )

Call Tech Svc/qipl

Roller Brg Ay

Retaining Screw

Шайба

Screen, Water Intk

Nipple Plug

Ниппель

Ds Brg Hsg&seal Ay

Oil Retainer ((contents Of Gearcase Seal Kit.) )

0329923

Oil Retainer ((contents Of Gearcase Seal Kit.) )

0382408

Подшипник

0317624

Винт

0389455

Hsg.& Bearing Ay

10B

Штифт

Detent

Пружина

Cradle-shift

Shifter-lever

Shaft-shifter

Pin-shifter Arm

O Ring ((contents Of Gearcase Seal Kit.) )

Propshaft Ay, Serv

Thrust Brg-fwd Gr

Retainer, Dr Sft

Pin, Roll

Driveshaft, Lower

Gasket ((contents Of Gearcase Seal Kit.) )

Hsg Ay, Propshaft

Подшипник игольчатый

Подшипник игольчатый

Seal ((contents Of Gearcase Seal Kit.) )

0431708

Анодная пластина

28A

0908158

Винт

0305123

O-ring ((contents Of Gearcase Seal Kit.) )

0349001

Wedge

0916070

Винт

31A

Гровер

Gearset, V6 Fwd&pin

Gear, Reverse .54

Упорная шайба

Шайба

Шайба

Thrust Brg Ay

Shifter-clutch Dog

Штифт

Пружина

Drain Screw

Washer ((contents Of Gearcase Seal Kit.) )

Shim-pinion-003

Shim-pinion-004

Shim 005

Упорная шайба

Cover Ay, Shift Rod

O-ring ((contents Of Gearcase Seal Kit.) )

Упорная шайба

Винт

Шарик

Screw, Anode

50A

Гровер

Anode&insert Ay

Screw, Brg Carrier

Retaining Tab

Винт

Washer&seal Ay ((contents Of Gearcase Seal Kit.) )

0328702

Шайба

0321008

Grommet Exh Hsg ((contents Of Water Pump Repair Kit.) )

Gasket, Wtr Pmp 5pk

Nut Pinion

Tab, Trim-std

Grommet ((contents Of Water Pump Repair Kit.) )

0338486

Cup, Imp Housing ((stainless Steel. Contents Of Water Pump Repair Kit.) )

0338551

Cup Imp Housing ((contents Of Chrome Pump Kit.) )

0306643

Screw ((contents Of Water Pump Repair Kit.) )

0313715

Винт

0338485

Plate, Water Pump ((stainless Steel. Contents Of Water Pump Repair Kit.) )

0338552

Plate Water Pump ((contents Of Chrome Pump Kit.) )

Prop Nut & Keeper

Cotter Pin 10 Pk

Шайба

Винт

Винт

Винт

Seal ((contents Of Water Pump Repair Kit.) )

5001593

Kit Ay, Impeller ((contents Of Water Pump Repair Kit.) )

0331107

Imp Key ((contents Of Water Pump Repair Kit.) )

0302035

O Ring ((contents Of Water Pump Repair Kit.) )

Spacer Prop Nut

Bushing, Thrust

Bushing, Thrust

Grommet ((contents Of Water Pump Repair Kit.) )

0435959

Housing Ay, Implr ((contents Of Water Pump Repair Kit.) )

80A

0338893

Cover, Impeller Hsg ((contents Of Water Pump Repair Kit.) )

0330266

Шайба

0331188

O-ring-thermostat ((contents Of Water Pump Repair Kit.) )

Bushing Ay, Prop

Prop Hub Shtr

Гильца

Kit, Upper D/s-20"

Shift Rod 20"

Рем.комплект водяного насоса

Cup & Plate Ay

Kit Ay, Seal-gc

Gearset Hi-alt V6

O-ring ((contents Of Gearcase Seal Kit.) )

0302325

Screw ((contents Of Water Pump Repair Kit.) )

5007968

Housing Ay, Implr ((contents Of Water Pump Repair Kit.) )
