Gearcase - standard rotation - fsl, fs, fpx, fx models Каталог оригинальных запчастей для лодочных моторов Evinrude E150FCXSSM FFI, Elec Start, TNT, 25 IN. shaft, wht, cntr rotate (2000)

Главная
Каталог оригинальных запчастей для лодочных моторов
Evinrude
2000
E150FCXSSM FFI, Elec Start, TNT, 25 IN. shaft, wht, cntr rotate

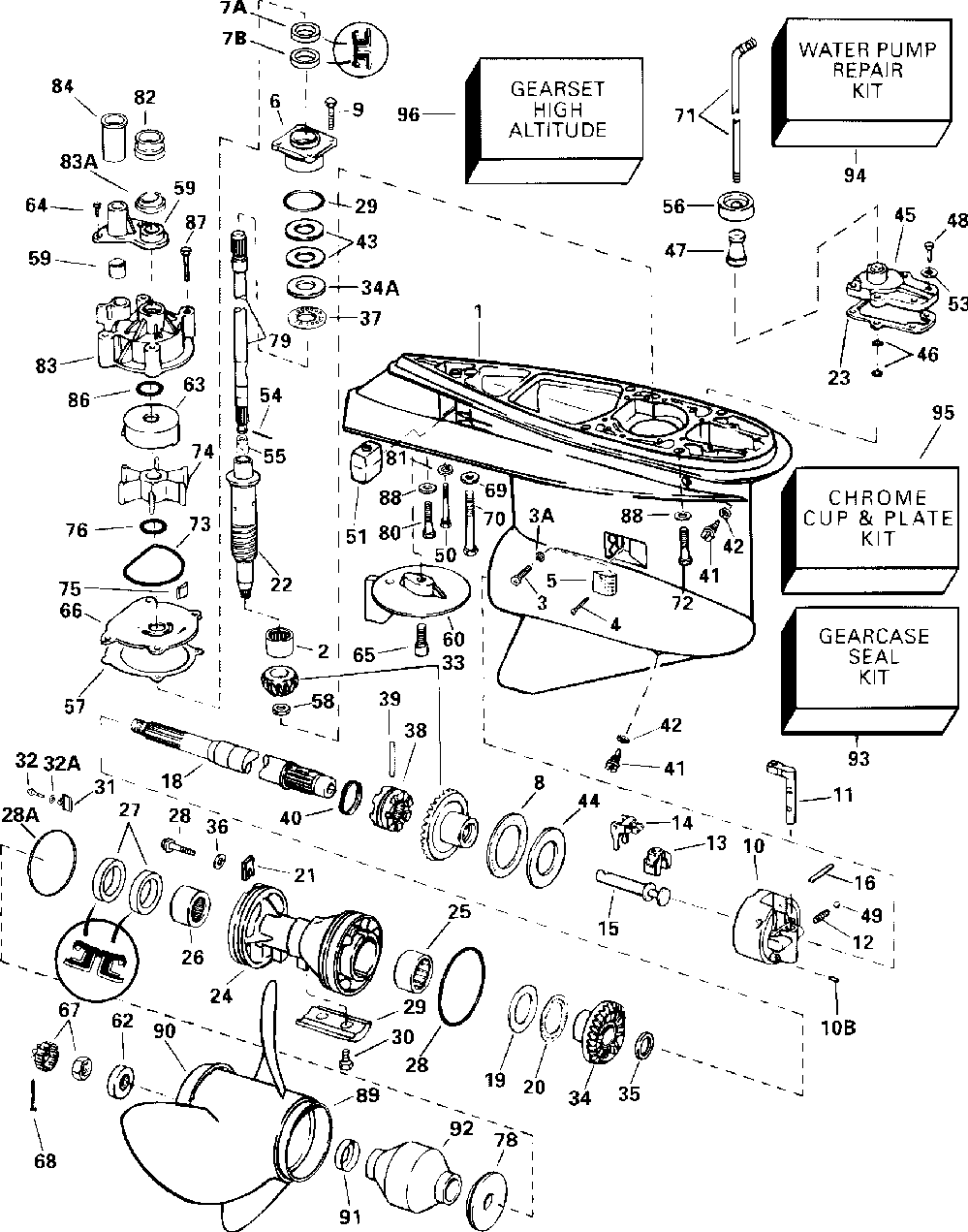

Gearcase - standard rotation - fsl, fs, fpx, fx models
Gearcase - standard rotation - fsl, fs, fpx, fx models

Gearcase - standard rotation - fsl, fs, fpx, fx models

Evinrude E150FCXSSM FFI, Elec Start, TNT, 25 IN. shaft, wht, cntr rotate

Gearcase - standard rotation - fsl, fs, fpx, fx models

oem код

название

цена

G-case V6/std/offs

Gcase & Brg Ay, "o"

Roller Brg Ay

Retaining Screw

Шайба

Винт

Screen, Water Inlet

Screen, Water Inlet (optional )

0439476

Ds Brg Hsg&seal Ay

0329922

Oil Retainer (contents Of Gearcase Seal Kit )

0329923

Oil Retainer (contents Of Gearcase Seal Kit )

0389042

Thrust Brg-fwd Gr

0317624

Винт

0389455

Hsg.& Bearing Ay

10B

Штифт

Detent

Пружина

Cradle-shift

Shifter-lever

Shaft-shifter

Pin-shifter Arm

O Ring (contents Of Gearcase Seal Kit )

Propshaft Ay, Serv

Упорная шайба

Подшипник

Wedge

Driveshaft, Lower

Gasket (contents Of Gearcase Seal Kit )

Hsg Ay, Propshaft

Подшипник игольчатый

Подшипник игольчатый

Seal (contents Of Gearcase Seal Kit )

0305123

O-ring (contents Of Gearcase Seal Kit )

0431708

Анодная пластина

0908158

Винт

0916070

Screw (replacement Gearcase )

32A

0345998

Washer, Spring (replacement Gearcase )

5004218

Gearset, Svc Std

0336561

Gear, Reverse .54

34A

Упорная шайба

Шайба

Шайба

Thrust Brg Ay

Shifter-clutch Dog

Штифт

Пружина

Drain Screw

Шайба

Shim-pinion-003

Shim-pinion-004

Shim 005

Упорная шайба

Cover Ay, Shift Rod

O-ring (contents Of Gearcase Seal Kit )

0321122

Spacer-shift Rod (fpx, Fx Models )

Винт

Шарик

Screw, Anode

Anode&insert Ay

Screw, Brg Carrier

Шайба

Pin, Roll

Retainer, Dr Sft

Grommet Exh Hsg (contents Of Water Pump Repair Kit )

0338484

Gasket,wtr Pmp 5pk (contents Of Water Pump Repair Kit, Contents Of Gea )

0314730

Nut Pinion

0314008

Grommet (contents Of Water Pump Repair Kit )

0338742

Tab, Trim-std

0320943

Grommet (contents Of Water Pump Repair Kit )

0320570

Spacer Prop Nut

0338486

Cup,imp Housing (stainless Steel, Contents Of Water Pump Repair Kit )

0338551

Cup Imp Housing (chrome Plated )

0306643

Screw (contents Of Water Pump Repair Kit )

0313715

Винт

0338485

Plate,water Pump (stainless Steel, Contents Of Water Pump Repair Kit )

0338552

Plate Water Pump (chrome Plated )

Prop Nut & Keeper

Cotter Pin 10 Pk

Шайба

Винт

Shift Rod 20" (fsl, Fs Models Only )

0342995

Shift Rod 25" Ffi (fpx, Fx Models )

0331999

Винт

0331353

Seal (contents Of Water Pump Repair Kit )

5001593

Kit Ay, Impeller (contents Of Water Pump Repair Kit )

0331107

Imp Key (contents Of Water Pump Repair Kit )

0302035

O Ring (contents Of Water Pump Repair Kit )

0126870

Bushing, Thrust

0128777

Bushing, Thrust

5000615

Kit,upper D/s-20" (fsl, Fs Models Only )

5000624

25in D/s Kit Up (fpx, Fx Models )

0330263

Винт

0328701

Гровер

0338601

Grommet (fpx, Fx Models, Contents Of Water Pump Repair Kit )

0435959

Housing Ay, Implr (contents Of Water Pump Repair Kit )

83A

0338893

Cover, Impeller Hsg (contents Of Water Pump Repair Kit )

0354580

Sleeve (fpx, Fx Models, Contents Of Water Pump Repair Kit )

0331188

O-ring-thermostat (contents Of Water Pump Repair Kit )

Converging Ring

Гильца

Prop Hub, 15 Spline

Bushing Ay, Prop

Prop Hub Shtr

Kit Ay, Seal-gc

Рем.комплект водяного насоса

0435526

Cup & Plate Ay

0438493

Gearset Hi-alt V6 (optional )

0354731

O-ring (contents Of Gearcase Seal Kit )

0349001

Wedge (replacement Gearcase )

5007968

Housing Ay, Implr (contents Of Water Pump Repair Kit )

0302325

Screw (contents Of Water Pump Repair Kit )

0330266

Шайба

28A

0305123

O-ring (original Gearcase Only )
