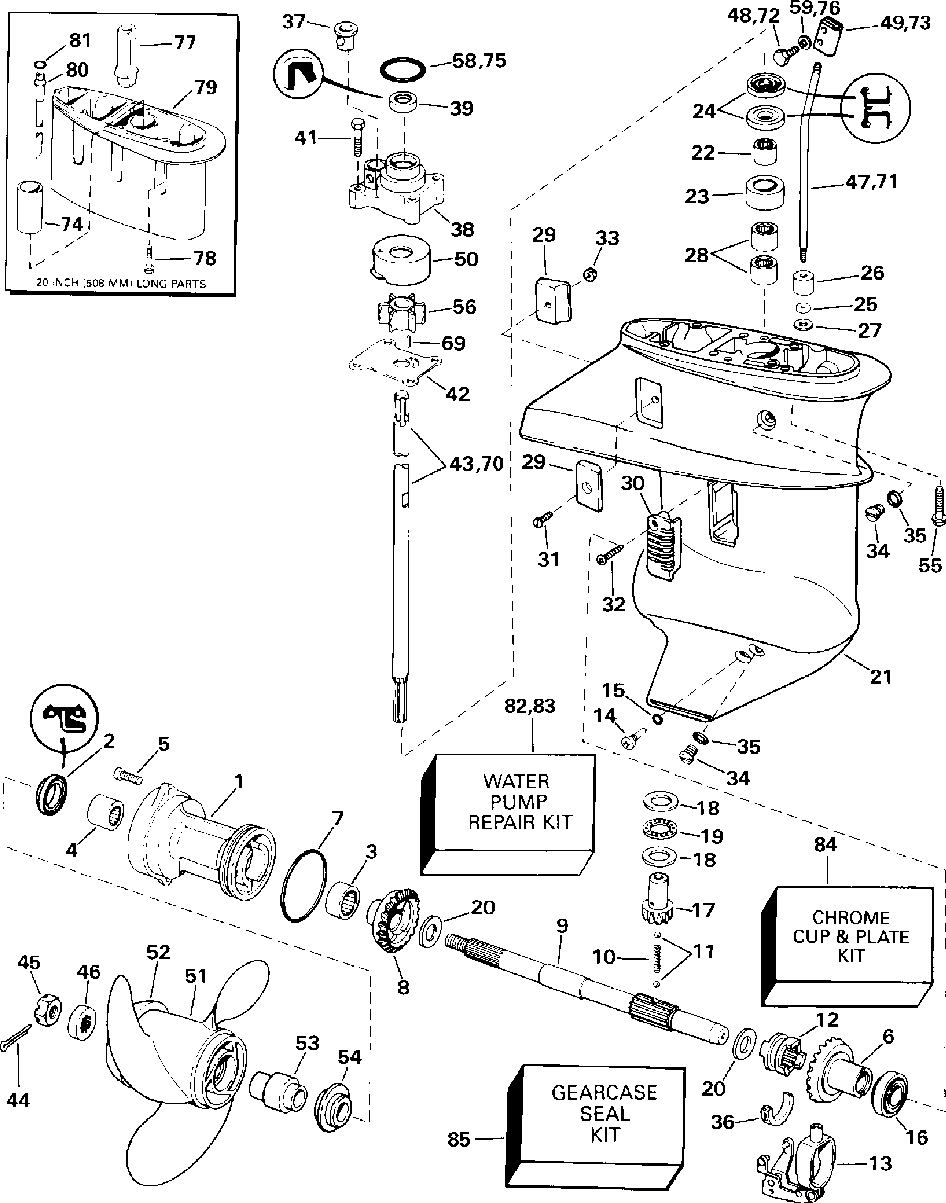

Редуктор

Evinrude E15WRLSSC Commercial, Rope Start, Tiller, 20 IN shaft
Evinrude
#oem кодцена
0438617
G-case Ay, Less D/s
1
0437774
Корпус
2
0342247
Seal, Oil (contents Of Gearcase Seal Kit )
3
0386125
Подшипник
4
0386231
Подшипник
5
0333706
Винт
6
0394823
Шестерня -задний ход
7
0308627
O Ring 5pk (contents Of Gearcase Seal Kit )
8
0330201
Шестерня -обратный ход
9
0438578
Вал гребной
10
0316505
Пружина
11
0316506
Шарик фиксирующий
12
0325263
Муфта переключения скоростей
13
0388416
Shift Lvr&yoke Ay
14
0308376
Винт
15
0332584
Шайба
16
0386186
Roller Brg Ay
17
0338190
Gear, Pinion
18
0336296
Шайба
19
0388000
Thrust Brg Ay-pin
20
0343251
Шайба
22
0386014
Подшипник
23
0318874
Гильца
24
0321480
Oil Seal (contents Of Gearcase Seal Kit )
25
0301877
O Ring (contents Of Gearcase Seal Kit )
26
0304765
Втулка
27
0321738
Washer (contents Of Gearcase Seal Kit )
28
0386071
Подшипник
29
0338635
Анод
30
0338443
Водозаборная решетка
31
0304013
Винт
32
0325539
Винт
33
0121470
Гайка
34
0307551
Drain Fill Plg 10p (contents Of Gearcase Seal Kit )
35
0311598
Шайба
36
0325014
Зажим
37
0327035
Grommet (contents Of Water Repair Kit )
37
0302497
Grommet (15wrl 20 - Inch (508mm) Models, Contents Of Water Repair Kit )
38
0435390
Hsg&seal Ay, Implr (contents Of Water Repair Kit )
39
0318972
Seal (contents Of Water Repair Kit, Contents Of Gearcase Seal Kit )
41
0302325
Винт
42
0318995
Plate-imp Hsg (contents Of Water Repair Kit )
43
0341590
Driveshaft, 15"
44
0328522
Cotter Pin 5pk
45
0318971
Prop Nut 5pk
46
0323942
Thrust Washer-prop
47
0318992
Shift Rod-lwr
48
0304024
Винт
49
0303794
Connector, Shft Rod
50
0324097
Cup-impeller Hsg (contents Of Water Repair Kit )
50
0323535
Cup-imp Hsg-chrome (contents Of Chrome Pump Kit )
51
0778773
Prop, Al 9.25x11 (refer To Omc Genuine Parts Propeller Chart )
51
0778772
Prop, Al 9.25x10 (refer To Omc Genuine Parts Propeller Chart )
51
0763457
Prop, Al 9.25 X 8 (refer To Omc Genuine Parts Propeller Chart )
52
0332395
Converging Ring
53
0386119
Prop Hub 9.9hp
54
0334590
Thrust Bushing
55
0341206
Винт
56
0386084
Impeller Ay (contents Of Water Repair Kit )
58
0319085
Seal-imp Hsg 5pk (contents Of Water Repair Kit, Contents Of Gearcase Seal Kit )
59
0301551
Стопорная шайба
69
0300611
Dowel (contents Of Water Repair Kit )
0434135
Kit Ay, 5" Ext (15wrl 20 - Inch (508mm) Models )
70
0341591
Driveshaft, 20" (15wrl 20 - Inch (508mm) Models )
71
0319298
Shift Rod, Lwr 20" (15wrl 20 - Inch (508mm) Models )
74
0319340
Extension (15wrl 20 - Inch (508mm) Models )
77
0326922
Exhaust Seal (15wrl 20 - Inch (508mm) Models )
79
0331152
G-case Extension (15wrl 20 - Inch (508mm) Models )
80
0320025
Extension Wtr Tube (15wrl 20 - Inch (508mm) Models )
81
0202893
O-ring (15wrl 20 - Inch (508mm) Models )
82
0394711
Рем.комплект помпы
85
0396350
Комплект сальников редуктора
21
0438617
G-case Ay, Less D/s
72
0304024
Screw (15wrl 20 - Inch (508mm) Models )
73
0303794
Connector, Shft Rod (15wrl 20 - Inch (508mm) Models )
75
0319085
Seal-imp Hsg 5pk (15wrl 20 - Inch (508mm) Models, Contents Of Water Repair Kit )
76
0301551
Lockwasher (15wrl 20 - Inch (508mm) Models )
78
0341206
Screw (15wrl 20 - Inch (508mm) Models )
83
0394711
Рем.комплект помпы
84
0394711
Рем.комплект помпы
