Stern & swivel bracket Каталог оригинальных запчастей для лодочных моторов Evinrude E30TEL4SSS 4-Stroke, Elec. Start, Tiller, 20 IN. shaft (2000)

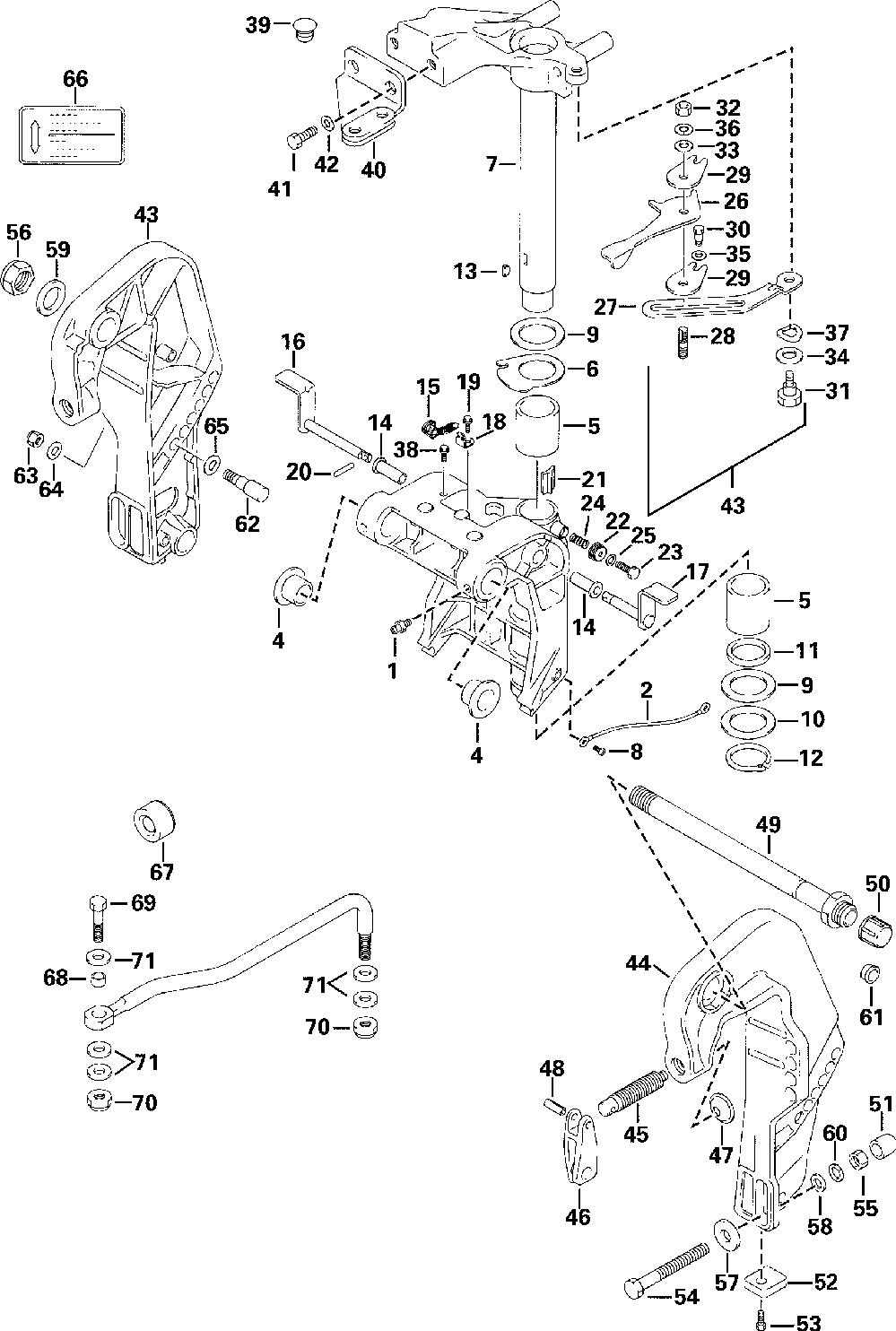

Stern & swivel bracket

Evinrude E30TEL4SSS 4-Stroke, Elec. Start, Tiller, 20 IN. shaft

oem код

название

цена

5030207

Ниппель

5030821

Lead, L: 165

5032057

Brkt, Swivel-short (15" Models Only )

5032056

Brkt, Swivel-long (20" Models Only )

Bush, Shaft Swivel

Bush, Steering

Plate, Steer-upper

Brkt, Steering (s) (15" Models Only )

5032065

Brkt, Comp-strg (l) (20" Models Only )

Screw, 5x8

Washer, 39.5x64x1.0

Сальник

СТОПОРНОЕ КОЛЬЦО

Шпонка

Втулка

Пружина

Lever, Tilt Lock-st

Lever, Tilt Lock-pt

Plate, Shal Wtr Dr

Болт 6x15

Пружинный Штифт

Adjuster, Steering

Крышка

Bolt (8x27)

Пружина

Washer, 8.5x14x1.0

Adjuster, Steering (rope & Rope Electric Models Only )

5032061

Plate, Steering Adj (rope & Rope Electric Models Only )

5032062

Stud (rope & Rope Electric Models Only )

5032063

Plate, Steering Lok (rope & Rope Electric Models Only )

5031817

Bolt, 6x17 (rope & Rope Electric Models Only )

5031819

Bolt, 10x20.4 (rope & Rope Electric Models Only )

5032356

Nut (rope & Rope Electric Models Only )

5031832

Washer, 10x18x1.0 (rope & Rope Electric Models Only )

5030063

Washer, 12.5x23x1 (rope & Rope Electric Models Only )

5030429

Washer (rope & Rope Electric Models Only )

5032292

Washer, Friction (rope & Rope Electric Models Only )

5031858

Шайба

5031821

Bolt, 6x12 (remote Electric & Tnt Models Only )

5030527

Cap (remote Electric & Tnt Models Only )

5032188

Attach, Strg Brkt

5032177

Bolt, 10x25 (remote Electric & Tnt Models Only )

5031611

Washer (remote Electric & Tnt Models Only )

Brkt, Clamp-stbd.

Brkt, Clamp-port.

Screw, Clamp

Handle, Clamp

Пластина

Spring Pin, 6x25

Shaft Comp

Cap, Transom Bolt

Set Ay, Anode-zinc

Kit, Transom Bolt

Гайка 12mm

Гайка

Washer, 12.5x35x3.2

Washer, 12.5x22x2.5

Washer, 22.5x38x1.0

Шайба

Plug (remote Electric & Tnt Models Only )

Pin, Tilt Lock

Гайка

Шайба

Decal, Release Levr

Seal, Steering Cbl

Link Ay, Drag

Проставка

Bolt, Strg Brkt Sub

Гайка

Шайба

Болт 6x15

Washer, 12.5x22x2.5
