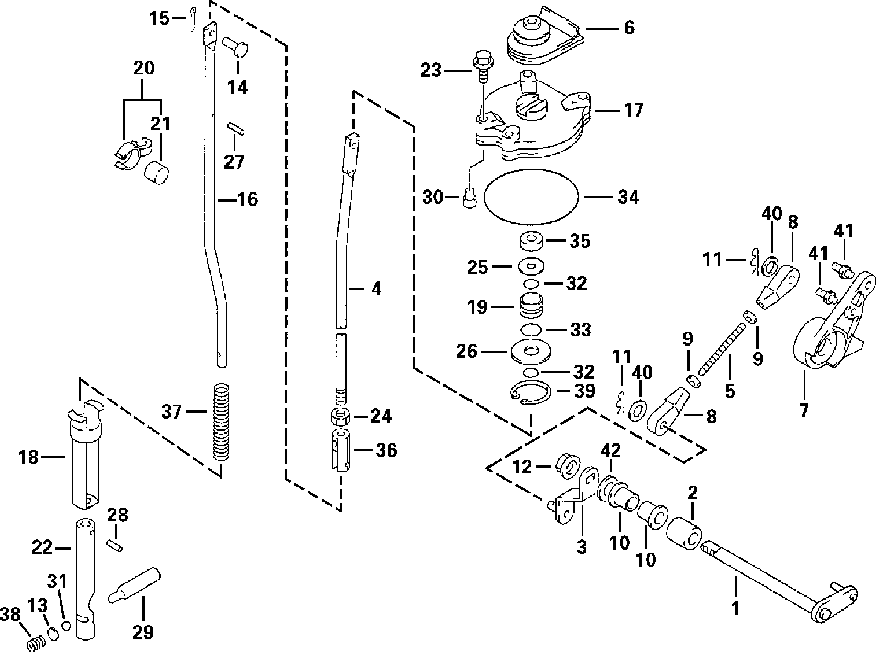

Shift rod & lever

Evinrude E70 PL4SSR 4-Stroke, Elec. Start, TNT, 20 IN. shaft
Evinrude
#oem кодцена
1
5030764
Вал
2
5030765
Spacer, Cl Shaft
3
5030766
Arm, Clutch
4
5030767
Rod, Clutch (part Of Gearcase Service Assembly )
5
5030768
Link, Clutch Lever
6
5030679
Gasket, Inlet Manif
7
5030770
Lever, Cl Control
8
5030955
Штуцер
9
5030956
Nut, Remocon Cable
10
5030553
Втулка
11
5030575
Зажим
12
5031022
Гайка
13
5030763
Plate, Clutch Notch (part Of Gearcase Service Assembly )
14
5031724
Shft Rodconn Kit70 (part Of Gearcase Service Assembly )
15
5030086
Cotter Pin (part Of Gearcase Service Assembly )
16
5030773
Rod, Shift (part Of Gearcase Service Assembly )
17
5030774
Housing (part Of Gearcase Service Assembly )
18
5030775
Holder, Spring (part Of Gearcase Service Assembly )
19
5030776
Guide, Shift Rod (part Of Gearcase Service Assembly )
20
5030777
Magnet Set (part Of Gearcase Service Assembly )
21
5030778
Magnet, Gear Case (part Of Gearcase Service Assembly )
22
5030779
Cam, Clutch (part Of Gearcase Service Assembly )
23
5030396
Bolt, 6x20 (part Of Gearcase Service Assembly )
24
5030052
Nut (part Of Gearcase Service Assembly )
25
5031167
Washer (part Of Gearcase Service Assembly )
26
5030435
Washer, 9x30x1.6 (part Of Gearcase Service Assembly )
27
5030513
Pin (part Of Gearcase Service Assembly )
28
5030088
Pin, Spring (part Of Gearcase Service Assembly )
29
5030514
Pin, Spring (part Of Gearcase Service Assembly )
30
5030517
Pin (part Of Gearcase Service Assembly )
31
5030096
Ball (part Of Gearcase Service Assembly )
32
5030534
Oring,d:3.5 Id:7.8 (part Of Gearcase Seal Kit, Part Of Gearcase Service Assembly )
33
5030538
Oring,id:14.8, (part Of Gearcase Service Assembly )
34
5030544
Oring (part Of Gearcase Seal Kit, Part Of Gearcase Service Assembly )
35
5030551
Oil,seal (part Of Gearcase Seal Kit, Part Of Gearcase Service Assembly )
36
5030772
Connector, Upper (part Of Gearcase Service Assembly )
37
5030593
Spring (part Of Gearcase Service Assembly )
38
5030596
Spring (part Of Gearcase Service Assembly )
39
5031023
Circlip, 30mm (part Of Gearcase Service Assembly )
40
5031080
Washer, Connector
41
5032289
Pin, Connector
42
5030057
Шайба
17
5034633
Housing (part Of Gearcase Service Assembly )
