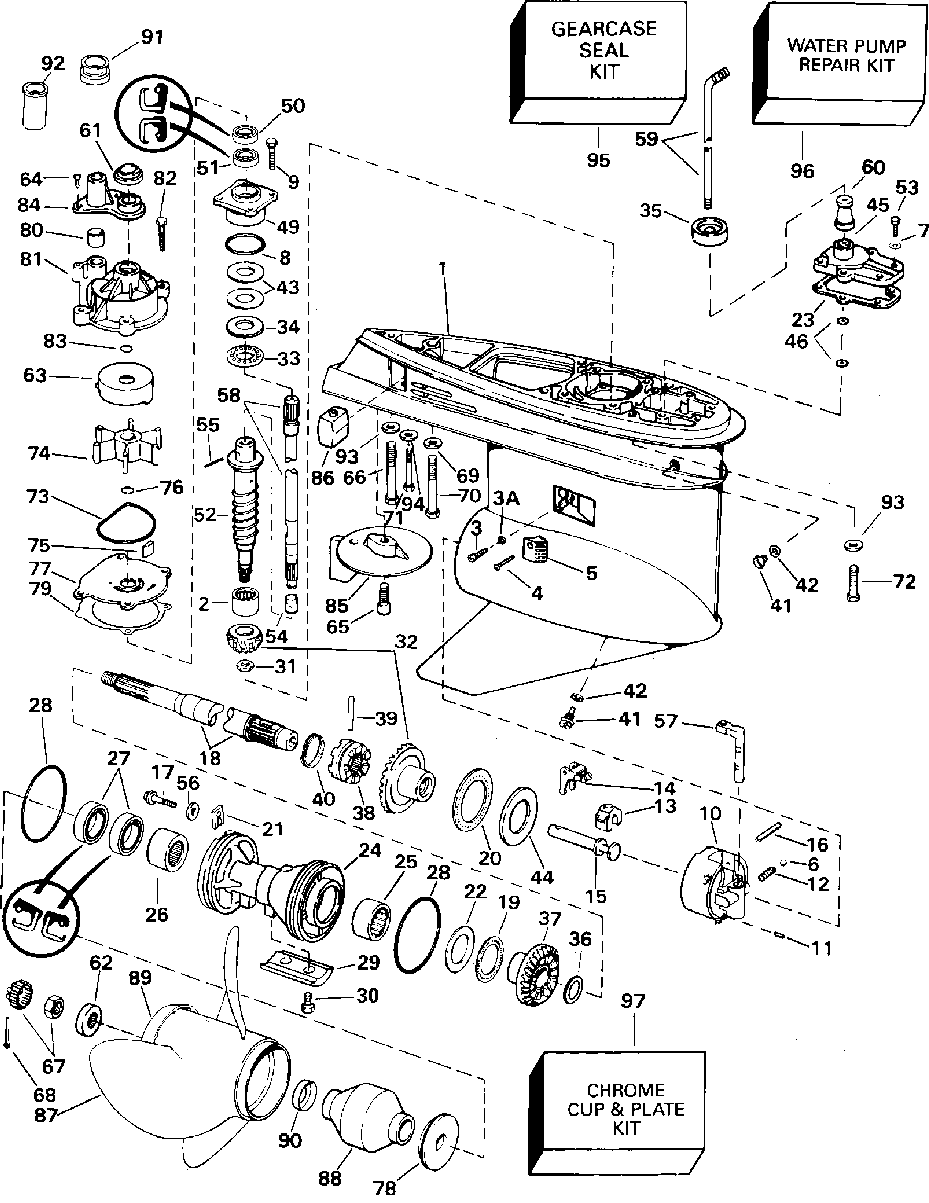

Gearcase - fpx, fx models

Evinrude E90FPLSSH FFI, Elec Start, TNT, 20 IN. shaft
Evinrude
#oem кодцена
t
5005744
G-case .44 Os Wht
1
5007022
Gcase & Brg Ay, "o"
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
3A
0332584
Шайба
4
0337061
Винт
5
0337778
Screen, Water Inlet
6
0160084
Шарик
7
0328702
Шайба
8
0314728
O Ring (contents Of Gearcase Seal Kit )
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
11
0331880
Штифт
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0350271
Screw, Brg Carrier
18
5004765
Propshaft Ay, Serv
19
0382408
Подшипник
20
0389042
Thrust Brg-fwd Gr
21
0333957
Retaining Tab
22
0314731
Упорная шайба
23
0352165
Gasket (contents Of Gearcase Seal Kit )
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0436752
Подшипник игольчатый
27
0334950
Seal (contents Of Gearcase Seal Kit )
28
0305123
O-ring (contents Of Gearcase Seal Kit )
29
0431708
Анодная пластина
30
0908158
Винт
31
0314730
Nut Pinion
32
0435123
Gearset, Fwd&pin V4
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0321008
Grommet Exh Hsg (contents Of Water Pump Repair Kit )
36
0336565
Шайба
37
0336574
Шестерня заднего хода
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw
42
0311598
Washer (contents Of Gearcase Seal Kit )
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
O-ring (contents Of Gearcase Seal Kit )
49
0439476
Ds Brg Hsg&seal Ay
50
0329922
Oil Retainer (contents Of Gearcase Seal Kit )
51
0329923
Oil Retainer (contents Of Gearcase Seal Kit )
52
0345905
Driveshaft, Lower
53
0302325
Винт
54
0338504
Retainer, Dr Sft
55
0311538
Pin, Roll
56
0328743
Шайба
57
0915954
Detent
58
5000624
25in D/s Kit Up
59
0342995
Shift Rod 25" Ffi
60
0321122
Spacer-shift Rod
61
0320943
Grommet (contents Of Water Pump Repair Kit )
62
0320570
Spacer Prop Nut
63
0338486
Cup, Imp Housing (contents Of Water Pump Repair Kit )
63
0338551
Cup Imp Housing
64
0306643
Screw (contents Of Water Pump Repair Kit )
65
0313715
Винт
66
0330263
Винт
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0330265
Шайба
70
0331998
Винт
71
0328096
Screw, Anode
72
0331999
Винт
73
0331353
Seal (contents Of Water Pump Repair Kit )
74
5001593
Kit Ay, Impeller (contents Of Water Pump Repair Kit )
75
0331107
Imp Key (contents Of Water Pump Repair Kit )
76
0302035
O Ring (contents Of Water Pump Repair Kit )
77
0338485
Plate, Water Pump (contents Of Water Pump Repair Kit )
77
0338552
Plate Water Pump
78
0126870
Bushing, Thrust
78
0128777
Bushing, Thrust
79
0338484
Gasket, Wtr Pmp 5pk (contents Of Water Pump Repair Kit )
80
0314008
Grommet (contents Of Water Pump Repair Kit )
81
0435959
Housing Ay, Implr (contents Of Water Pump Repair Kit )
83
0331188
O-ring-thermostat (contents Of Water Pump Repair Kit )
84
0338893
Cover, Impeller Hsg (contents Of Water Pump Repair Kit )
85
0338742
Tab, Trim-std
86
0436745
Anode&insert Ay
88
0387157
Prop Hub, 15 Spline
88
0175401
Bushing Ay, Prop
89
0332394
Converging Ring
90
0313926
Гильца
91
0338601
Grommet (contents Of Water Pump Repair Kit )
92
0354580
Sleeve (contents Of Water Pump Repair Kit )
93
0330266
Шайба
94
0307161
Стопорная шайба
95
5006373
Kit Ay, Seal-gc
96
5001595
Рем.комплект водяного насоса
97
0435526
Cup & Plate Ay
8
0354731
O-ring (contents Of Gearcase Seal Kit )
81
5007968
Housing Ay, Implr (contents Of Water Pump Repair Kit )
82
0302325
Screw (contents Of Water Pump Repair Kit )
