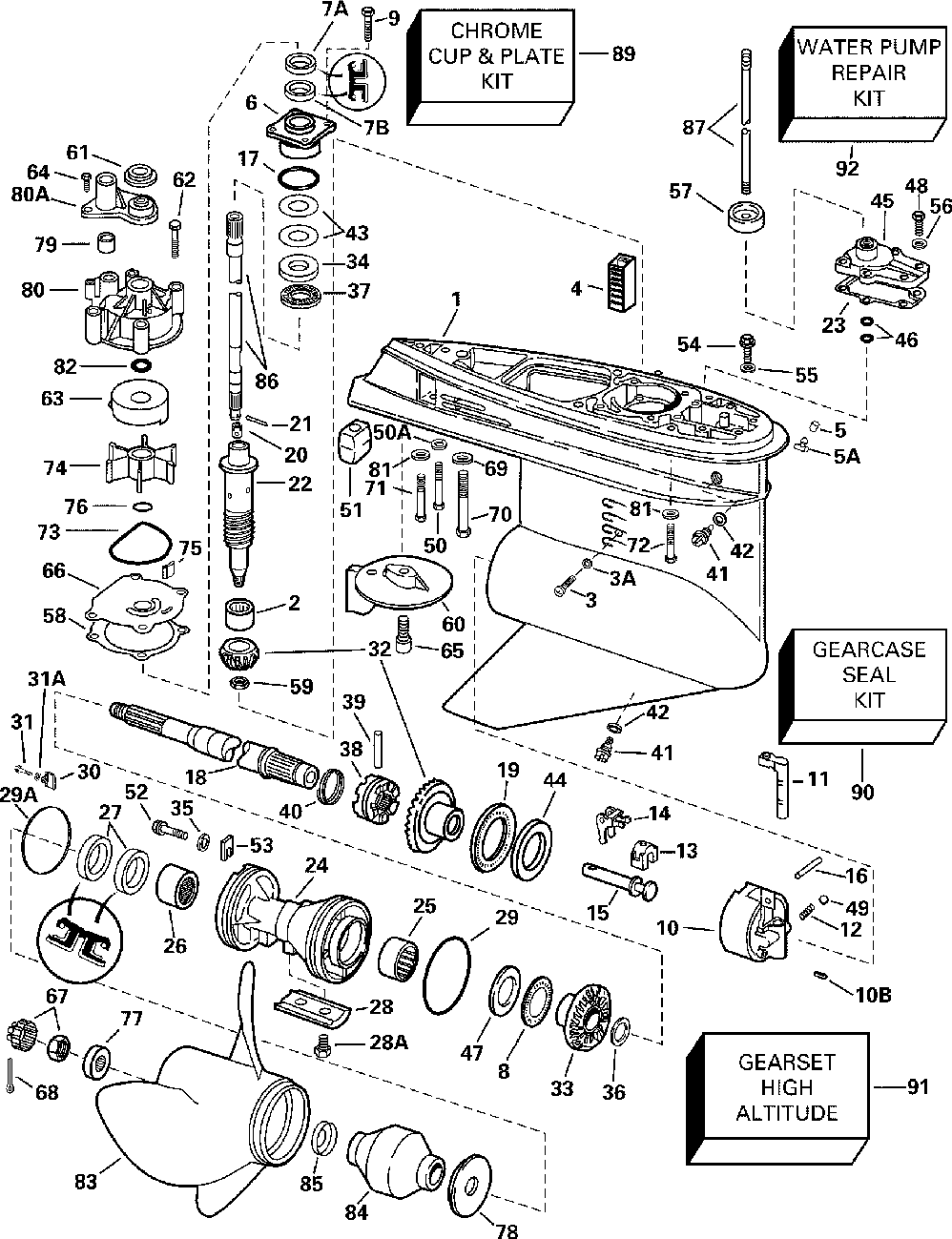

Gearcase - standard rotation - fpl, fl models

Evinrude RE150FCSSV FFI, Elec Start, TNT, 25 IN. shaft, wht, cntr rotate
Evinrude
#oem кодцена
5004635
See Sb 2002-02p
1
0439973
Call Tech Svc/qipl
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
3A
0332584
Шайба
4
0321123
Screen, Water Intk
5
0305749
Nipple Plug
5A
0336535
Ниппель
6
0439476
Ds Brg Hsg&seal Ay
7A
0329922
Oil Retainer (contents Of Gearcase Seal Kit )
7B
0329923
Oil Retainer (contents Of Gearcase Seal Kit )
8
0382408
Подшипник
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
10B
0331880
Штифт
11
0915954
Detent
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0314728
O Ring (contents Of Gearcase Seal Kit )
18
5004765
Propshaft Ay, Serv
19
0389042
Thrust Brg-fwd Gr
20
0338504
Retainer, Dr Sft
21
0311538
Pin, Roll
22
0345905
Driveshaft, Lower
23
0352165
Gasket (contents Of Gearcase Seal Kit )
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0436752
Подшипник игольчатый
27
0334950
Seal (contents Of Gearcase Seal Kit )
28
0431708
Анодная пластина
28A
0908158
Винт
29
0305123
O-ring (contents Of Gearcase Seal Kit )
30
0349001
Wedge (replacement Gearcase )
31
0916070
Screw (replacement Gearcase )
31A
0345998
Washer, Spring (replacement Gearcase )
32
5004218
Gearset, Svc Std
33
0336561
Gear, Reverse .54
34
0327656
Упорная шайба
35
0328743
Шайба
36
0336565
Шайба
37
0387656
Thrust Brg Ay
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw
42
0311598
Washer (contents Of Gearcase Seal Kit )
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
O-ring (contents Of Gearcase Seal Kit )
47
0314731
Упорная шайба
48
0302325
Винт
49
0160084
Шарик
50
0328096
Screw, Anode
50A
0328701
Гровер
51
0436745
Anode&insert Ay
52
0350271
Screw, Brg Carrier
53
0333957
Retaining Tab
54
0341220
Винт
55
0437330
Washer&seal Ay (contents Of Gearcase Seal Kit )
56
0328702
Шайба
57
0321008
Grommet Exh Hsg (contents Of Water Pump Repair Kit )
58
0338484
Gasket,wtr Pmp 5pk (contents Of Gearcase Seal Kit, Contents Of Water Pump Repair Kit, Contents Of Chrome Pump Kit )
59
0314730
Nut Pinion
60
0338742
Tab, Trim-std
61
0320943
Grommet (contents Of Water Pump Repair Kit )
63
0338486
Cup,imp Housing (contents Of Chrome Pump Kit, Stainless Steel )
63
0338551
Cup Imp Housing (contents Of Chrome Pump Kit )
64
0306643
Screw (contents Of Water Pump Repair Kit )
65
0313715
Винт
66
0338485
Plate,water Pump (contents Of Chrome Pump Kit, Stainless Steel )
66
0338552
Plate Water Pump (contents Of Chrome Pump Kit )
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0330265
Шайба
70
0331998
Винт
71
0330263
Винт
72
0331999
Винт
73
0331353
Seal (contents Of Water Pump Repair Kit )
74
5001593
Kit Ay, Impeller (contents Of Water Pump Repair Kit )
75
0331107
Imp Key (contents Of Water Pump Repair Kit )
76
0302035
O Ring (contents Of Water Pump Repair Kit )
77
0320570
Spacer Prop Nut
78
0126870
Bushing, Thrust
78
0128777
Bushing, Thrust
79
0314008
Grommet (contents Of Water Pump Repair Kit )
80
0435959
Housing Ay, Implr (contents Of Water Pump Repair Kit )
80A
0338893
Cover, Impeller Hsg (contents Of Water Pump Repair Kit )
81
0330266
Шайба
82
0331188
O-ring-thermostat (contents Of Water Pump Repair Kit )
84
0175401
Bushing Ay, Prop
84
0431730
Prop Hub Shtr
85
0313926
Гильца
86
5000615
Kit, Upper D/s-20"
87
0342994
Shift Rod 20"
89
0435526
Cup & Plate Ay
90
5006373
Kit Ay, Seal-gc
91
0438493
Gearset Hi-alt V6 (optional )
92
5001595
Рем.комплект водяного насоса
17
0354731
O-ring (contents Of Gearcase Seal Kit )
62
0302325
Screw (contents Of Water Pump Repair Kit )
80
5007968
Housing Ay, Implr (contents Of Water Pump Repair Kit )
29A
0305123
O-ring (original Gearcase Only )
