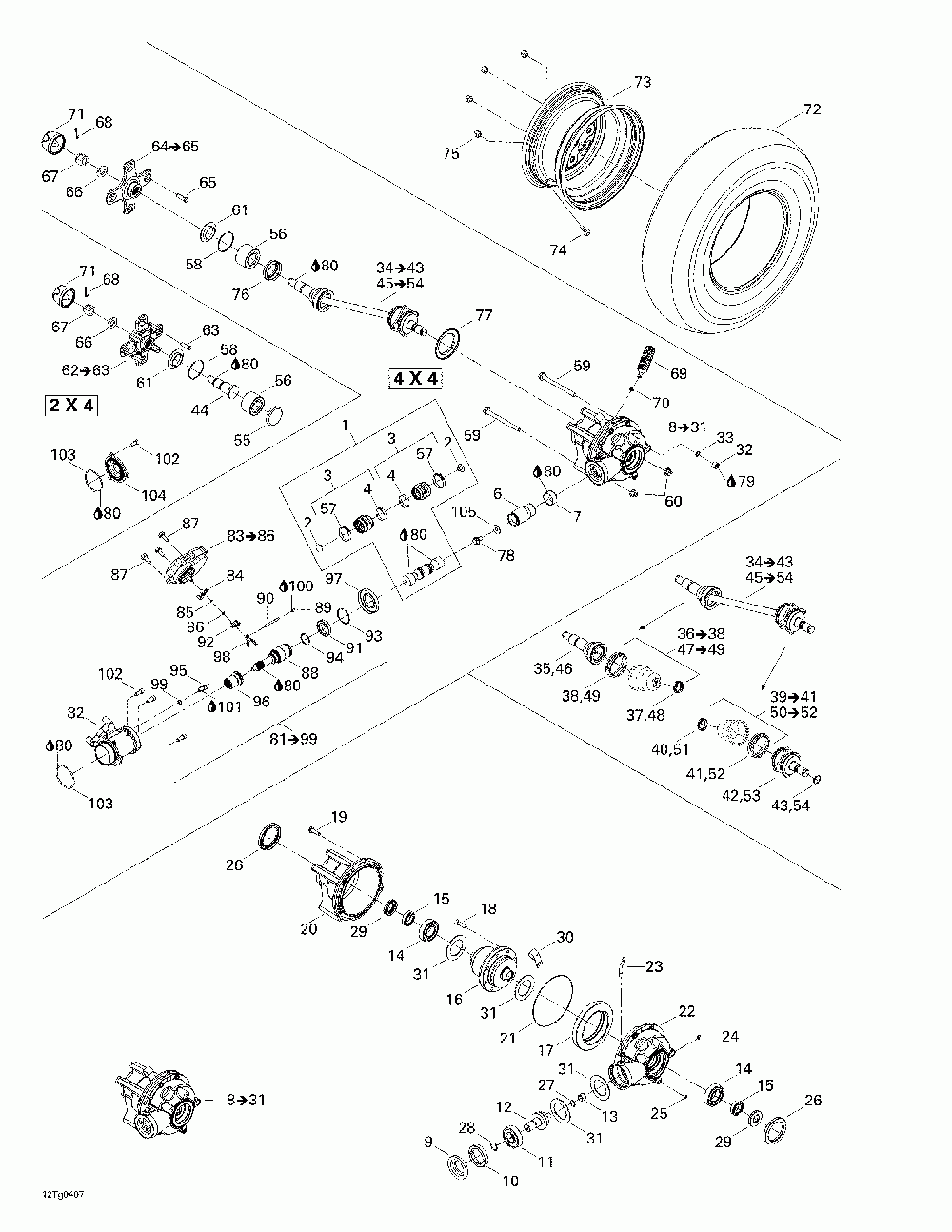

Привод колес передний Запчасти для квадроциклов ATV Can-Am (Bombardier) Outlander 400 XT 4 X 4 (2004)

Привод колес передний

Can-Am (Bombardier) Outlander 400 XT 4 X 4

oem код

название

цена

705400337

Arbre Entrain. *axle-drive Includes 1 To 4, Std 4 X 4, Xt 4 X 4.

703500255

Ens.prot.caou.*rubber Boot Kit Includes 4-57, Std 4 X 4, Xt 4 X 4

703500255

Ens.prot.caou.*rubber Boot Kit Std 4 X 4, Xt 4 X 4

705400149

Manchon Acc. *coupling-sleeve Std 4 X 4, Xt 4 X 4

705400036

Bague D Usure *wear Ring Std 4 X 4, Xt 4 X 4

705400027

Joint Etanche *oil Seal Std 4 X 4, Xt 4 X 4

705500266

Ecrou *nut Std 4 X 4, Xt 4 X 4

705500260

Roulement Bille*ball Bearing Std 4 X 4, Xt 4 X 4

705500268

Engrenage 10 D *gear-10 Th. Std 4 X 4, Xt 4 X 4

705500261

Roulement Aigui*needle Bearing Std 4 X 4, Xt 4 X 4

705500259

Roulement Bille*ball Bearing Std 4 X 4, Xt 4 X 4

293350044

Roulement Bille*ball Bearing Std 4 X 4, Xt 4 X 4

705400645

Differentiel *differential Std 4 X 4, Xt 4 X 4

705400192

Engrenage 36 D *gear-36 Th. Std 4 X 4, Xt 4 X 4

705400101

Vis Couronne *screw-ring Gear Std 4 X 4, Xt 4 X 4

705500264

Vis *screw Std 4 X 4, Xt 4 X 4

705400133

Couvercle Avant*cover-front Std 4 X 4, Xt 4 X 4

705500265

Anneau Etanche *seal Std 4 X 4, Xt 4 X 4

705400261

Couvercle Avant*cover-front Std 4 X 4, Xt 4 X 4

705500262

Soupape Ventil *valve-vent Std 4 X 4, Xt 4 X 4

705500246

Bouchon Protec *plug-protec Std 4 X 4, Xt 4 X 4

705500245

Bouchon Vidange*plug-drain Std 4 X 4, Xt 4 X 4

293250137

Joint Etanche *oil Seal Std 4 X 4, Xt 4 X 4

705500269

Anneau Retenue *ring-retaining Std 4 X 4, Xt 4 X 4

705500267

Joint Torique *o-ring Std 4 X 4, Xt 4 X 4

705500255

Joint Etanche *oil Seal Std 4 X 4, Xt 4 X 4

705600311

Attache *clamp Std 4 X 4, Xt 4 X 4

705500504

Bouchon Vidange*drain Plug Std 4 X 4, Xt 4 X 4

705500506

Rondelle Cuivre*copper Washer Std 4 X 4, Xt 4 X 4

705400349

Joint Droit *half Shaft Rh. Includes 34 - 43, Std 4 X 4, Xt 4 X 4

705400154

Joint Cv *cv Joint Std 4 X 4, Xt 4 X 4

705400127

Ens.soufflet *kit-boot Wheel Includes 36 - 38, Std 4 X 4, Xt 4 X 4

705400064

Bride Serrage *clamp-btb Std 4 X 4, Xt 4 X 4

705400180

Bride Serrage *clamp-btb Std 4 X 4, Xt 4 X 4

705400126

Ens.soufflet *kit-boot Diff. Includes 39 - 41, Std 4 X 4, Xt 4 X 4

705400064

Bride Serrage *clamp-btb Std 4 X 4, Xt 4 X 4

705400181

Bride Serrage *clamp-btb Std 4 X 4, Xt 4 X 4

705400156

Joint Plongeant*plunging Joint Std 4 X 4, Xt 4 X 4

705400042

Circlip *circlip Std 4 X 4, Xt 4 X 4

705400188

Embout Crenele *stub-shaft Std 2 X 4

705400350

Joint Gauche *half Shaft Lh. Includes 45 - 54, Std 4 X 4, Xt 4 X 4

705400154

Joint Cv *cv Joint Std 4 X 4, Xt 4 X 4

705400127

Ens.soufflet *kit-boot Wheel Includes 47 - 49, Std 4 X 4, Xt 4 X 4

705400064

Bride Serrage *clamp-btb Std 4 X 4, Xt 4 X 4

705400180

Bride Serrage *clamp-btb Std 4 X 4, Xt 4 X 4

705400126

Ens.soufflet *kit-boot Diff. Includes 50 - 52, Std 4 X 4, Xt 4 X 4

705400064

Bride Serrage *clamp-btb Std 4 X 4, Xt 4 X 4

705400181

Bride Serrage *clamp-btb Std 4 X 4, Xt 4 X 4

705400155

Joint Plongeant*plunging Joint Std 4 X 4, Xt 4 X 4

705400042

Circlip *circlip Std 4 X 4, Xt 4 X 4

705400187

Couvercle *cover Std 2 X 4

293350040

Подшипник

293650138

Bride Serrage *clamp-oetiker Std 4 X 4, Xt 4 X 4

293370019

Стопорное кольцо

230602546

Screw-hex.flange Din.6921 Std 4 X 4, Xt 4 X 4

233201416

Гайка

705500372

Компенсационное кольцо

705400286

Moyeu De Roue *wheel Hub Includes 62 - 63, Std 2 X 4

250300034

Goujon De Roue *wheel Stud Std 2 X 4

705500564

Bague D Usure *wear Ring Includes 64 - 65, Std 4 X 4, Xt 4 X 4

705501087

Moyeu De Roue *wheel Hub Includes 64 - 65, Std 4 X 4, Xt 4 X 4

250300034

Goujon De Roue *wheel Stud Std 4 X 4, Xt 4 X 4

Шайба

Гайка М18

Шплинт

Soufflet Caout.*bellow-rubber Std 4 X 4, Xt 4 X 4

293750001

Tie Rap 94mm *tie-rap 94mm Std 4 X 4, Xt 4 X 4

705400012

Колпак колеса

705400213

Pneu Avant *front Tire

705400243

Jante Avant *front Rim Black, Std 4 X 4, Xt 4 X 4

705400229

Jante Avant *front Rim Chrome, Std 4 X 4, Xt 4 X 4

705400160

Jante Avant *front Rim Grey

705400193

Нипель диска колеса

250100042

Гайка крепления колеса

293250090

Joint Etanche *oil Seal Std 4 X 4, Xt 4 X 4

705400179

Bague D Usure *wear Ring Std 4 X 4, Xt 4 X 4

250000060

Screw-hex.flange Din.6921 S.grip Std 4 X 4, Xt 4 X 4

705400169

Boitier *housing Std 4 X 4, Xt 4 X 4

703500506

Ens.actuateur *actuator Kit Includes 83 - 86, Std 4 X 4, Xt 4 X 4

705400274

Fourchette *fork Std 4 X 4, Xt 4 X 4

293370042

Circlip *circlip Std 4 X 4, Xt 4 X 4

293300108

Joint Torique *o-ring Std 4 X 4, Xt 4 X 4

250000137

Screw-hex.flange Blue S.grip M8x20 Std 4 X 4, Xt 4 X 4

705400172

Arbre Jonction *union Shaft Std 4 X 4, Xt 4 X 4

206580890

Screw-set Socket Din.916 Std 4 X 4, Xt 4 X 4

250400025

Goupille M5 *dowell-pin Std 4 X 4, Xt 4 X 4

705400249

Roulement Bille*ball Bearing Std 4 X 4, Xt 4 X 4

705400538

Glissiere *slider Std 4 X 4, Xt 4 X 4

293370029

Circlip *circlip Std 4 X 4, Xt 4 X 4

293370030

Circlip *circlip Std 4 X 4, Xt 4 X 4

710000324

Interrupteur *switch Std 4 X 4, Xt 4 X 4

705400389

Manchon Acc. *coupling-sleeve Std 4 X 4, Xt 4 X 4

293250138

Joint Etanche *oil Seal Std 4 X 4, Xt 4 X 4

705400387

Plaque Embraya.*shifter Plate Std 4 X 4, Xt 4 X 4

705600310

Rondelle Cuivre*copper Washer Std 4 X 4, Xt 4 X 4

102

250000136

Screw-socket Din.912 Blue S.grip

103

293300091

Кольцо

104

705400186

Couvercle Arbre*cover Std 2 X 4, Std 4 X 4

105

250200014

Rondelle Plate *washer-flat Std 4 X 4, Xt 4 X 4
