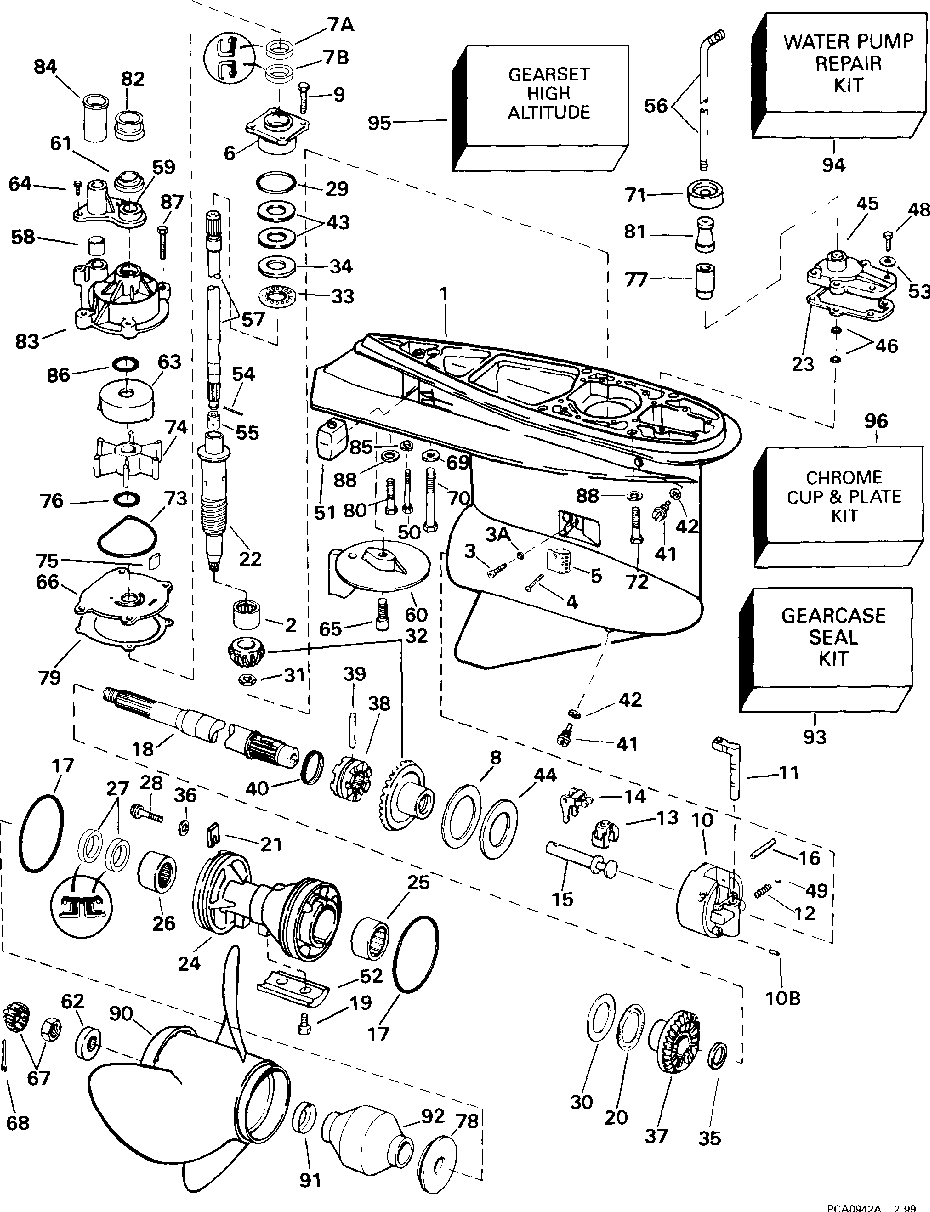

Gearcase -- standard rotation -- fpx, fpz models

Evinrude E200FCXEEN
Evinrude
#oem кодцена
439979
5005401
G-case V6/std/offs ( Not Shown .)
1
5007022
Gcase & Brg Ay, "o"
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
3A
0332584
Washer 5pk ( Contents Of Gearcase Seal Kit .)
4
0337061
Винт
5
0337778
Screen, Water Inlet
5
0339247
Screen, Water Inlet ( Optional .)
6
0439476
Ds Brg Hsg&seal Ay
7A
0329922
Oil Retainer ( Contents Of Gearcase Seal Kit .)
7B
0329923
Oil Retainer ( Contents Of Gearcase Seal Kit .)
8
0389042
Thrust Brg-fwd Gr
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
10B
0331880
Штифт
11
0915954
Detent
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0305123
O-ring ( Contents Of Gearcase Seal Kit .)
18
5004765
Propshaft Ay, Serv
19
0908158
Винт
20
0382408
Подшипник
21
0333957
Retaining Tab
22
0345905
Driveshaft, Lower
23
0352165
Gasket ( Contents Of Gearcase Seal Kit .)
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0436752
Подшипник игольчатый
27
0334950
Seal ( Contents Of Gearcase Seal Kit .)
28
0350271
Screw, Brg Carrier
29
0314728
O Ring ( Contents Of Gearcase Seal Kit .)
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
5004938
Gearset, V6 Fwd&pin
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0336565
Шайба
36
0328743
Шайба
37
0336561
Gear, Reverse .54
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw ( Contents Of Gearcase Seal Kit .)
42
0311598
Шайба
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
O-ring ( Contents Of Gearcase Seal Kit .)
48
0302325
Винт
49
0160084
Шарик
50
0328096
Screw, Anode
51
0436745
Anode&insert Ay
52
0431708
Анодная пластина
53
0328702
Шайба
54
0311538
Pin, Roll
55
0338504
Retainer, Dr Sft
56
0329865
Shift Rod, 25" ( Fpx .)
56
0337780
Rod, Shift-30" ( Fpz .)
57
5007672
Driveshaft Ay ( Fpx .)
57
5007673
Upper Dshaft Ay ( Fpz .)
58
0314008
Grommet ( Contents Of S.s. Water Pump Repair Kit .)
59
0338893
Cover, Impeller Hsg ( Contents Of S.s. Water Pump Repair Kit .)
60
0338742
Tab, Trim-std
61
0320943
Grommet ( Contents Of S.s. Water Pump Repair Kit .)
62
0320570
Spacer Prop Nut
63
0338486
Cup, Imp Housing ( Contents Of S.s. Water Pump Repair Kit .)
63
0338551
Cup Imp Housing ( Chrome Plated)
64
0306643
Screw ( Contents Of S.s. Water Pump Repair Kit .)
65
0313715
Винт
66
0338485
Plate, Water Pump ( Contents Of S.s. Water Pump Repair Kit .)
66
0338552
Plate Water Pump ( Chrome Plated)
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0330265
Шайба
70
0331998
Винт
71
0321008
Grommet Exh Hsg ( Contents Of S.s. Water Pump Repair Kit .)
72
0331999
Винт
73
0331353
Seal ( Contents Of S.s. Water Pump Repair Kit .)
74
5001593
Kit Ay, Impeller ( Contents Of S.s. Water Pump Repair Kit .)
75
0331107
Imp Key ( Contents Of S.s. Water Pump Repair Kit .)
76
0302035
O Ring ( Contents Of S.s. Water Pump Repair Kit .)
77
0339346
Extension, Spacer ( Fpz .)
78
0126870
Bushing, Thrust ( Renegade Offshore & All 3-blade .)
78
0128777
Bushing, Thrust ( Renegade Bass & Shooter Only .)
79
0338484
Gasket, Wtr Pmp 5pk ( Contents Of S.s. Water Pump Repair Kit . Contents Of Gearcase Seal Kit .)
80
0330263
Винт
81
0321122
Spacer-shift Rod
82
0338601
Grommet ( Contents Of S.s. Water Pump Repair Kit .)
83
0435959
Housing Ay, Implr ( Contents Of S.s. Water Pump Repair Kit .)
84
0354580
Sleeve ( Fpx . Contents Of S.s. Water Pump Repair Kit .)
84
0354579
Sleeve ( Fpz . Contents Of S.s. Water Pump Repair Kit .)
85
0328701
Гровер
86
0331188
O-ring-thermostat ( Contents Of S.s. Water Pump Repair Kit .)
88
0330266
Шайба
90
0332394
Converging Ring
91
0313926
Гильца
92
0387157
Prop Hub, 15 Spline
92
0175401
Bushing Ay, Prop ( Renegade Offshore & All 3-blade .)
92
0431730
Prop Hub Shtr ( Renegade Bass & Shooter Only .)
93
5006373
Kit Ay, Seal-gc
94
5001595
Рем.комплект водяного насоса
95
0438493
Gearset Hi-alt V6 ( Optional .)
96
0435526
Cup & Plate Ay
29
0354731
O-ring ( Contents Of Gearcase Seal Kit .)
83
5007968
Housing Ay, Implr ( Contents Of S.s. Water Pump Repair Kit .)
87
0302325
Screw ( Contents Of S.s. Water Pump Repair Kit .)
