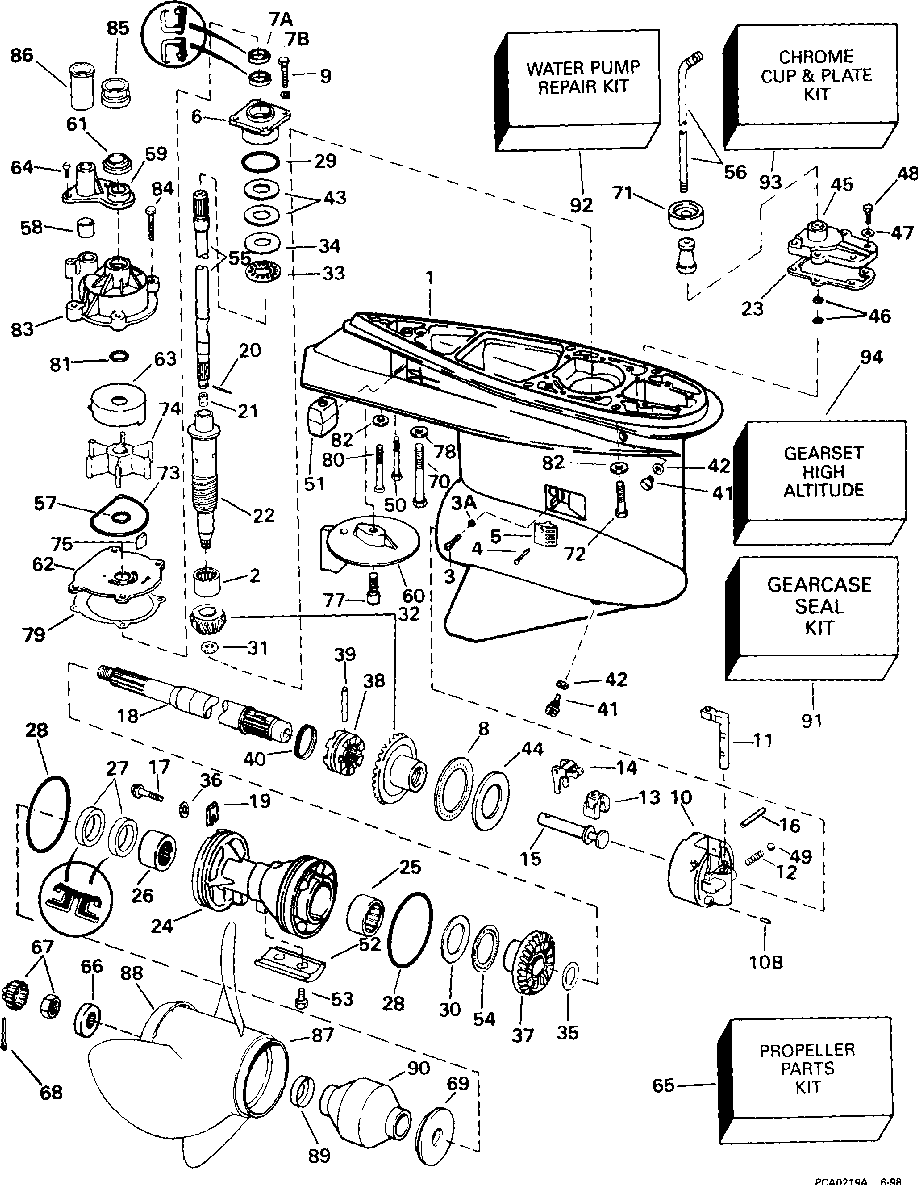

Редуктор

Evinrude E200WPXEEN
Evinrude
#oem кодцена
439979
5005401
G-case V6/std/offs ( Not Shown .)
1
5007022
Gcase & Brg Ay, "o"
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw
3A
0332584
Washer 5pk ( Contents Of Gearcase Seal Kit .)
4
0337061
Винт
5
0337778
Screen, Water Inlet
5
0339247
Screen, Water Inlet ( Optional .)
6
0439476
Ds Brg Hsg&seal Ay
7A
0329922
Oil Retainer ( Contents Of Gearcase Seal Kit .)
7B
0329923
Oil Retainer ( Contents Of Gearcase Seal Kit .)
8
0389042
Thrust Brg-fwd Gr
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
10B
0331880
Штифт
11
0915954
Detent
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0350271
Screw, Brg Carrier
18
5004765
Propshaft Ay, Serv
19
0333957
Retaining Tab
20
0311538
Pin, Roll
21
0338504
Retainer, Dr Sft
22
0345905
Driveshaft, Lower
23
0352165
Gasket ( Contents Of Gearcase Seal Kit .)
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0436752
Подшипник игольчатый
27
0334950
Seal ( Contents Of Gearcase Seal Kit .)
28
0305123
O-ring ( Contents Of Gearcase Seal Kit .)
29
0314728
O Ring ( Contents Of Gearcase Seal Kit .)
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
5004938
Gearset, V6 Fwd&pin
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0336565
Шайба
36
0328743
Шайба
37
0336561
Gear, Reverse .54
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw ( Contents Of Gearcase Seal Kit .)
42
0311598
Шайба
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
O-ring ( Contents Of Gearcase Seal Kit .)
47
0328702
Шайба
48
0302325
Винт
49
0160084
Шарик
50
0328096
Screw, Anode
51
0436745
Anode&insert Ay
52
0431708
Анодная пластина
53
0908158
Винт
54
0382408
Подшипник
55
5007672
Driveshaft Ay
56
0329865
Shift Rod, 25"
57
0302035
O Ring ( Contents Of S.s. Pump Kit .)
58
0314008
Grommet ( Contents Of S.s. Pump Kit .)
59
0338893
Cover, Impeller Hsg ( Contents Of S.s. Pump Kit .)
60
0338742
Tab, Trim-std
61
0320943
Grommet ( Contents Of S.s. Pump Kit .)
62
0338552
Plate Water Pump ( Chrome Plated . Contents Of Chrome Pump Kit .)
62
0338485
Plate, Water Pump ( Optional . Contents Of S.s. Pump Kit .)
63
0338551
Cup Imp Housing ( Chrome Plated . Contents Of Chrome Pump Kit .)
63
0338486
Cup, Imp Housing ( Optional . Contents Of S.s. Pump Kit .)
64
0306643
Screw ( Contents Of S.s. Pump Kit .)
65
0434153
Kt Ay, V6prop Hdwe
66
0320570
Spacer Prop Nut
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0126870
Bushing, Thrust ( Renegade Offshore & All 3-blade .)
69
0128777
Bushing, Thrust ( Renegade Bass & Shooter Only .)
70
0331998
Винт
71
0321008
Grommet Exh Hsg ( Contents Of S.s. Pump Kit .)
72
0331999
Винт
73
0331353
Seal ( Contents Of S.s. Pump Kit .)
74
5001593
Kit Ay, Impeller ( Contents Of S.s. Pump Kit .)
75
0331107
Imp Key ( Contents Of S.s. Pump Kit .)
76
0321122
Spacer-shift Rod
77
0313715
Винт
78
0330265
Шайба
79
0338484
Gasket, Wtr Pmp 5pk ( Contents Of Gearcase Seal Kit . Contents Of S.s. Pump Kit . Contents Of Chrome Pump Kit .)
80
0330263
Винт
81
0331188
O-ring-thermostat ( Contents Of Gearcase Seal Kit . Contents Of S.s. Pump Kit .)
82
0330266
Шайба
83
0435959
Housing Ay, Implr ( Contents Of S.s. Pump Kit .)
85
0338601
Grommet ( Contents Of S.s. Pump Kit .)
86
0354580
Sleeve ( Contents Of S.s. Pump Kit .)
87
0765188
Prop Ay, Al 14.5x19 ( Refer To Omc Genuine Parts Propeller Chart .)
88
0332394
Converging Ring
89
0313926
Гильца
90
0387157
Prop Hub, 15 Spline
90
0175401
Bushing Ay, Prop ( Renegade Offshore & All 3-blade .)
90
0431730
Prop Hub Shtr ( Renegade Bass & Shooter Only .)
91
5006373
Kit Ay, Seal-gc
92
5001595
Kit Ay, Water Pump ( Contents Of S.s. Pump Kit .)
93
0435526
Cup & Plate Ay ( Optional .)
94
0438493
Gearset Hi-alt V6 ( Optional .)
29
0354731
O-ring ( Contents Of Gearcase Seal Kit .)
83
5007968
Housing Ay, Implr ( Contents Of S.s. Pump Kit .)
84
0302325
Screw ( Contents Of S.s. Pump Kit .)
