  6. Shift rod & lever

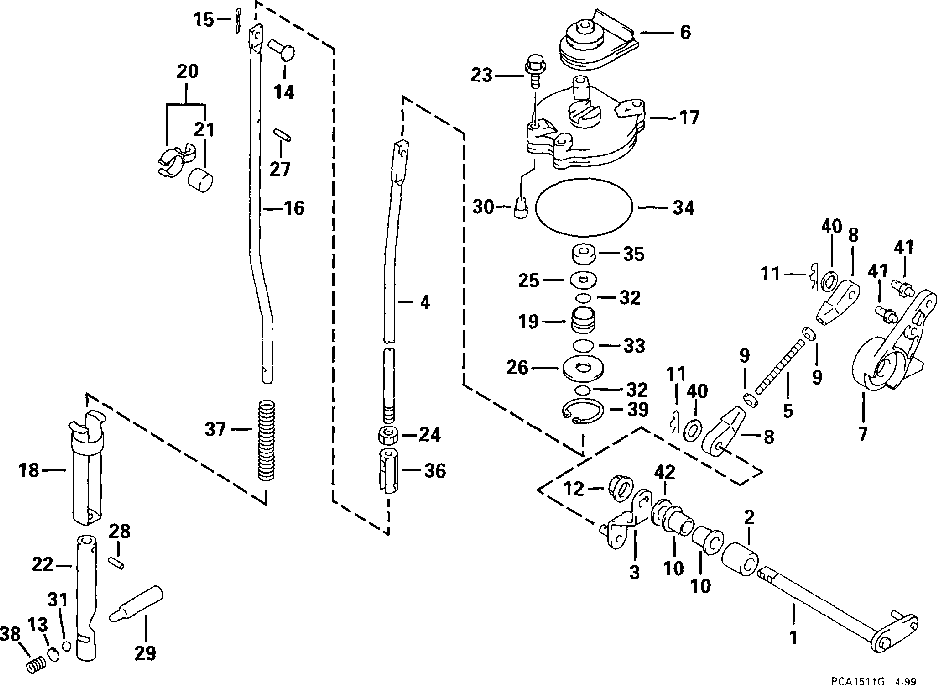

Shift rod & lever

Evinrude E70PL4EEC
Evinrude
#oem кодцена
1
5030764
Вал
2
5030765
Spacer, Cl Shaft
3
5030766
Arm, Clutch
4
5030767
Rod, Clutch ( Part Of Gearcase Service Assembly .)
5
5030768
Link, Clutch Lever
6
5030769
Boot, Clutch Rod
7
5030770
Lever, Cl Control
8
5030955
Штуцер
9
5030956
Nut, Remocon Cable
10
5030553
Втулка
11
5030575
Зажим
12
5031022
Гайка
13
5030763
Plate, Clutch Notch ( Part Of Gearcase Service Assembly .)
14
5031724
Shft Rodconn Kit70 ( Part Of Gearcase Service Assembly .)
15
5030086
Cotter Pin ( Part Of Gearcase Service Assembly .)
16
5030773
Rod, Shift ( Part Of Gearcase Service Assembly .)
17
5030774
Housing ( Part Of Gearcase Service Assembly .)
18
5030775
Holder, Spring ( Part Of Gearcase Service Assembly .)
19
5030776
Guide, Shift Rod ( Part Of Gearcase Service Assembly .)
20
5030777
Magnet Set ( Part Of Gearcase Service Assembly .)
21
5030778
Magnet, Gear Case ( Part Of Gearcase Service Assembly .)
22
5030779
Cam, Clutch ( Part Of Gearcase Service Assembly .)
23
5030396
Bolt, 6x20 ( Part Of Gearcase Service Assembly .)
24
5030052
Nut ( Part Of Gearcase Service Assembly .)
25
5031167
Washer ( Part Of Gearcase Service Assembly .)
26
5030435
Washer, 9x30x1.6 ( Part Of Gearcase Service Assembly .)
27
5030513
Pin ( Part Of Gearcase Service Assembly .)
28
5030088
Pin, Spring ( Part Of Gearcase Service Assembly .)
29
5030514
Pin, Spring ( Part Of Gearcase Service Assembly .)
30
5030517
Pin ( Part Of Gearcase Service Assembly .)
31
5030096
Ball ( Part Of Gearcase Service Assembly .)
32
5030534
Oring, D:3.5 Id:7.8 ( Part Of Gearcase Seal Kit . Part Of Gearcase Service Assembly .)
33
5030538
Oring,id:14.8, ( Part Of Gearcase Service Assembly .)
34
5030544
Oring ( Part Of Gearcase Seal Kit . Part Of Gearcase Service Assembly .)
35
5030551
Oil, Seal ( Part Of Gearcase Seal Kit . Part Of Gearcase Service Assembly .)
36
5030772
Connector, Upper ( Part Of Gearcase Service Assembly .)
37
5030593
Spring ( Part Of Gearcase Service Assembly .)
38
5030596
Spring ( Part Of Gearcase Service Assembly .)
39
5031023
Circlip, 30mm ( Part Of Gearcase Service Assembly .)
40
5031080
Washer, Connector
41
5032289
Pin, Connector
42
5030057
Шайба
17
5034633
Housing ( Part Of Gearcase Service Assembly .)
