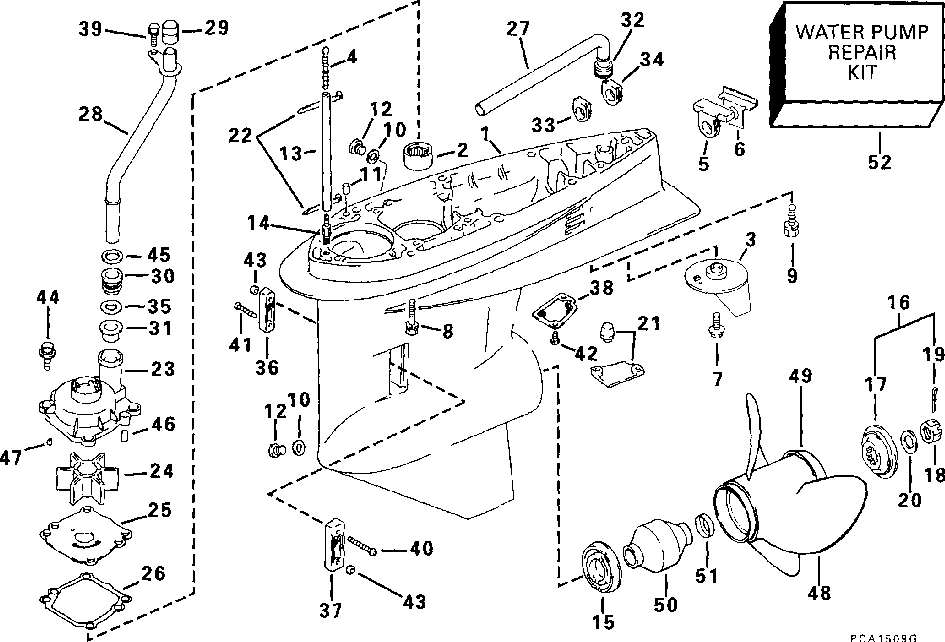

Редуктор

Evinrude E70PL4EEC
Evinrude
#oem кодцена
1
5030904
G-case&bearing Blu ( Part Of Gearcase Service Assembly .)
2
5030530
Bearing, 26x34x30 ( Part Of Gearcase Service Assembly .)
3
5030905
Tab, Trim ( Part Of Gearcase Service Assembly .)
4
5030906
Union ( Part Of Gearcase Service Assembly .)
5
5030908
Rubber, Exh Seal ( Part Of Gearcase Service Assembly .)
6
5030909
Plate, Exh Seal ( Part Of Gearcase Service Assembly .)
7
5034400
Bolt (8x22mm) ( Part Of Gearcase Service Assembly .)
8
5034788
Bolt, (l55)
9
5030401
Bolt, 10x80
10
5030071
Fill Plug Washer ( Part Of Gearcase Seal Kit . Part Of Gearcase Service Assembly .)
11
5030511
Pin ( Part Of Gearcase Service Assembly .)
12
5030094
Plug, Drain, 10x7.5 ( Part Of Gearcase Service Assembly .)
14
5030568
Nipple ( Part Of Gearcase Service Assembly .)
15
5030924
Stopper, Prop Bush
16
5030976
Propeller Nut Kit
17
5030925
Spacer, Prop Nut
18
5030422
Гайка винта гребного
19
5030087
Шплинт
20
5030441
Шайба
21
5032685
Plug, Water Tube ( For Engines That Are Mounted High On Transom .)
22
5030589
Clamp(l:125) ( Part Of Gearcase Service Assembly .)
23
5030722
Корпус водной помпы
24
5030723
Implr, Water Pump ( Part Of Water Pump Repair Kit .)
25
5030724
Panel, Pump ( Part Of Water Pump Repair Kit .)
26
5030725
Gasket ( Part Of Water Pump Repair Kit . Part Of Gearcase Seal Kit .)
27
5031138
Tube, Gearcase ( Part Of Gearcase Service Assembly .)
28
5030726
Tube, Water L
29
5030727
Втулка
30
5030728
Bush Lower
31
5030729
Bush, Pump Case
32
5031100
Bushing, Gearcase ( Part Of Gearcase Service Assembly .)
33
5031101
Grommet, Gearcase ( Part Of Gearcase Service Assembly .)
34
5031102
Grommet, Gearcase ( Part Of Gearcase Service Assembly .)
35
5030735
Spacer, Tube
36
5030737
Screen, Water Intak ( Part Of Gearcase Service Assembly .)
37
5030738
Screen, Wtr-stbd ( Part Of Gearcase Service Assembly .)
38
5030739
Filter ( Part Of Gearcase Service Assembly .)
39
5030038
Bolt, M6x16
40
5030404
Screw ( Part Of Gearcase Service Assembly .)
41
5030405
Screw, 4x30 ( Part Of Gearcase Service Assembly .)
42
5030406
Screw, 5x12 ( Part Of Gearcase Service Assembly .)
43
5030415
Nut ( Part Of Gearcase Service Assembly .)
44
5030398
Bolt, 8x25
45
5030461
Шайба
46
5030508
Штифт
47
5030591
Key, Wtr Pmp Impel ( Part Of Water Pump Repair Kit .)
49
0332393
Converging Ring
50
0384977
Prop Hub 50-135 Hp
51
0313926
Гильца
52
5031731
Wtr Pmp & Shft Con
25
5037170
Panel ( Part Of Water Pump Repair Kit .)
