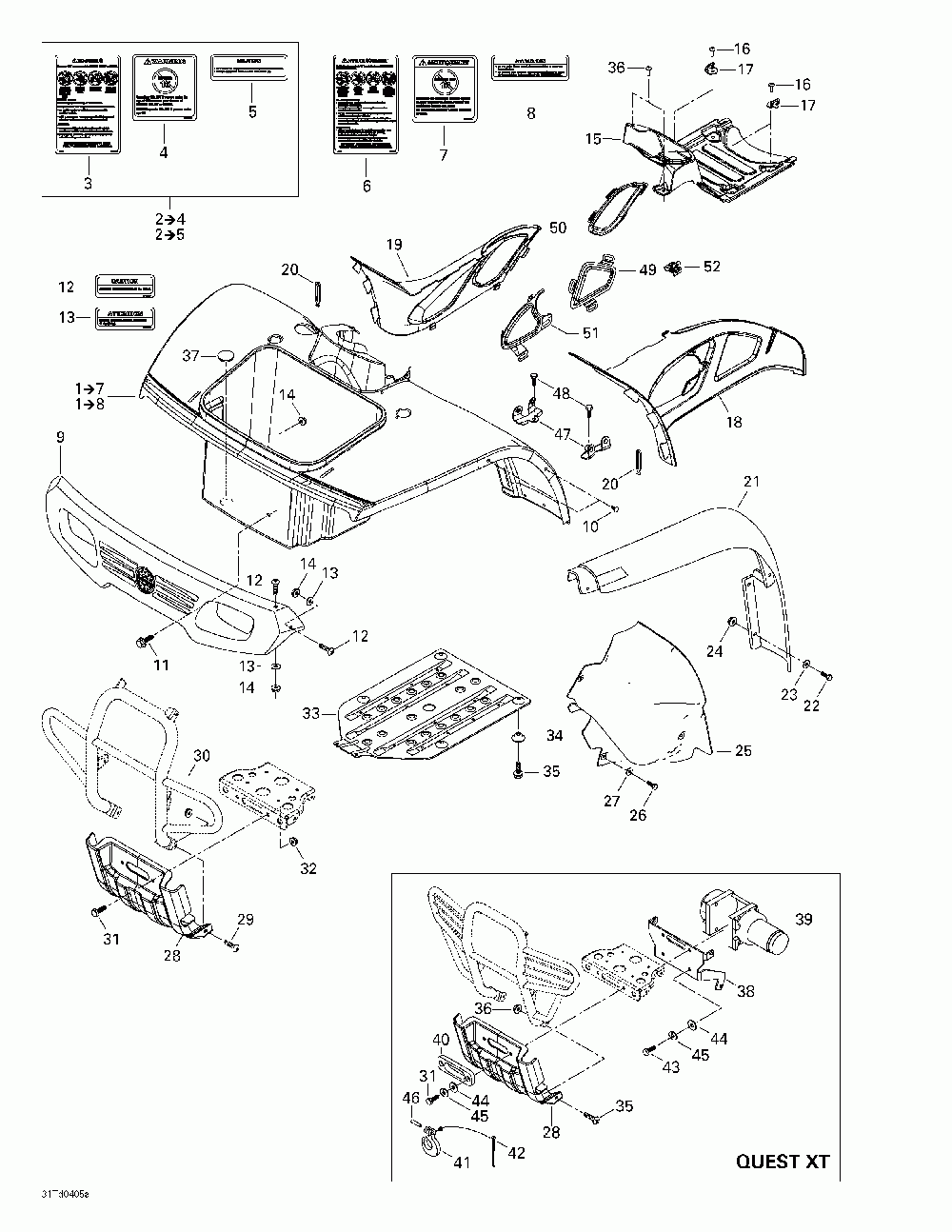

Кузовные детали перед

Can-Am (Bombardier) Quest Std
Can-Am (Bombardier)
#oem кодцена
1
703500395
Ens. Aile Avan*viper Front Fender Kit Includes 1 - 7. (viper Red)
703500398
Ens. Aile Avan*front Fender Kit Yellow (yellow)
703500298
Ens. Aile Avan*camo Front Fender Kit (camo)
1
703500393
Ens. Aile Avan*front Fender Kit Green Includes 1 - 8. (laurentian Green)
3
704900001
Etiquette Avert*warning Label (injuries And Death)
4
704900011
Etiquette Avert*label-warning (under 16 Years Old)
5
704900007
Etiquette Avert*label-warning (transmission Selector)
6
704900002
Etiquette Avert*warning Label (injuries And Death)
7
704900012
Etiquet. Brevet*label-brevet (under 16 Years Old)
8
704900008
Etiquet. Brevet*label-brevet (transmission Selector)
9
705000708
Передняя панель
10
293730011
Пистон черный
11
211000123
Phil-truss M/s Gm6047m
12
211000123
Phil-truss M/s Gm6047m
13
224060201
Шайба
14
233261414
Гайка
15
705001052
Консоль
16
211000123
Phil-truss M/s Gm6047m
17
705000369
Крюк
18
705000975
Panneau Gauche *lh.panel (camo)
705000837
Panneau Gauche *lh.panel (laurentian Green)
705000405
Panneau Gauche *lh.panel (yellow)
705000570
Panneau Gauche *lh.panel (viper Red)
19
703500333
Ens. Panneau S*green Rh.upper Pannel Kit (laurentian Green)
703500223
Ens. Panneau S*viper Rh.upper Pannel Kit (viper Red)
703500156
Ens. Panneau S*upper Pannel Kit Rh. (yellow)
703500304
Ens. Panneau S*camo Rh.upper Pannel Kit (camo)
20
570023800
Loquet Pare-bri*latch-windshield
21
705000827
Garde-boue *mudguard
705000828
Garde-boue *mudguard
22
207162044
Винт
23
224060201
Шайба
24
233261414
Гайка
25
705000133
Protecteur Ga. *protector-lh. 4 X 4
705000134
Protecteur Dr. *protector-rh. 4 X 4
26
210261680
Винт
27
224061201
Шайба
28
705000713
Plaque Protect.*protector Plate
29
211000123
Phil-truss M/s Gm6047m
30
233261414
Гайка
31
207602544
Screw-hex.flange Din.6921 Std Quest Std.
250000042
Screw-socket 5/16-18 X 1 1/2" Yic Xt Quest Xt.
32
233201414
Nut-flange Elastic Din.6926 Std Quest Std.
33
705200536
Plaque Moteur *skid Plate
34
705200533
Чашка
35
207582044
Винт
36
414745900
Винт
37
570041600
Couvercle Caout*cover-rubber
38
705000994
Plaque Montage *mounting Plate Xt Quest Xt.
39
705002505
Treuil *winch Xt Quest Xt.
40
705000194
Guide De Cable *cable Guide Xt Quest Xt.
41
705000618
Crochet *hook Xt Quest Xt.
42
250400022
Goupille Fendue*cotter Pin Xt Quest Xt.
43
250000041
Screw-socket 5/16-18 X 1" Yic Xt Quest Xt.
44
234081410
Washer-flat Din.125a Xt Quest Xt.
45
234181401
Washer-lock Din.127b Xt Quest Xt.
46
250400021
Goupille *clevis Pin Xt Quest Xt.
47
705000311
Кронштейн
48
210261080
Винт
49
705000367
Grille Gauche *lh.grill
50
705000366
Grille Droite *rh.grill
51
705000368
Grille Gauche *lh.grill
52
517302785
Крепёж
