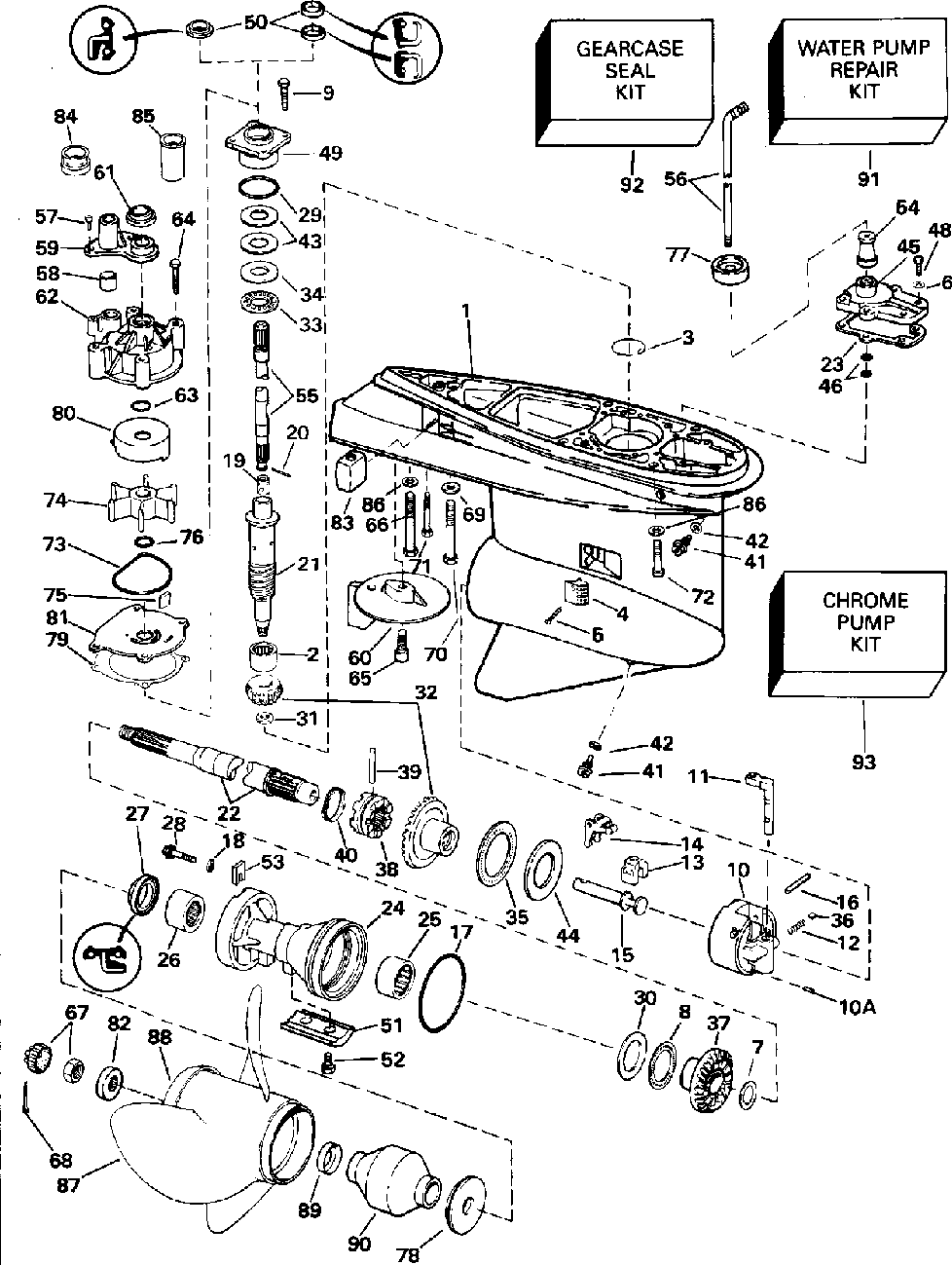

Gearcase - 130tl & 130tx standard rotation
Gearcase - 130tl & 130tx standard rotation

Gearcase - 130tl & 130tx standard rotation

Evinrude E130TXAOR

Gearcase - 130tl & 130tx standard rotation

oem код

название

цена

435470

5005744

G-case .44 Os Wht ( Not Shown)

Gcase & Brg Ay, "o"

Roller Brg Ay

Кольцо стопорное

Screen, Water Inlet

Винт

Шайба

Шайба

Подшипник

Винт

Hsg.& Bearing Ay

10A

Штифт

Detent

Пружина

Cradle-shift

Shifter-lever

Shaft-shifter

Pin-shifter Arm

O-ring ( Contents Of Gearcase Seal Kit)

Шайба

Retainer, Dr Sft

Pin, Roll

Driveshaft, Lower

Propshaft Ay, Serv

Gasket ( Contents Of Gearcase Seal Kit)

Hsg Ay, Propshaft

Подшипник игольчатый

Подшипник игольчатый

Seal, Propshaft ( Contents Of Gearcase Seal Kit)

0350271

Screw, Brg Carrier

0314728

O Ring ( Contents Of Gearcase Seal Kit)

Упорная шайба

Nut Pinion

Gearset, Fwd&pin V4

Thrust Brg Ay

Упорная шайба

Thrust Brg-fwd Gr

Шарик

Шестерня заднего хода

Shifter-clutch Dog

Штифт

Пружина

Drain Screw

Шайба

Shim-pinion-003

Shim-pinion-004

Shim 005

Упорная шайба

Cover Ay, Shift Rod

O-ring ( Contents Of Gearcase Seal Kit)

0302325

Винт

0439476

Ds Brg Hsg&seal Ay ( Early Production Double Seal)

0329923

Oil Retainer ( Contents Of Gearcase Seal Kit Early Production Double Seal)

0329922

Oil Retainer ( Contents Of Gearcase Seal Kit Early Production Double Seal)

0341280

Seal, Driveshaft ( Contents Of Gearcase Seal Kit Late Production Single Seal)

Анодная пластина

Винт

Retaining Tab

Spacer-shift Rod ( 25 In. Transom Only)

5007671

Upper D/s Kit 20" ( 20 In. Transom Only)

5007672

Driveshaft Ay ( 25 In. Transom Only)

0329864

Shift Rod - 20" ( 20 In. Transom Only)

0329865

Shift Rod, 25" ( 25 In. Transom Only)

0306643

Screw ( Contents Of Water Pump Repair Kit)

0314008

Grommet ( Contents Of Water Pump Repair Kit)

0338893

Cover, Impeller Hsg ( Contents Of Water Pump Repair Kit)

0338742

Tab, Trim-std

0320943

Grommet ( Contents Of Water Pump Repair Kit)

0435990

Housing Ay, Implr ( Contents Of Water Pump Repair Kit 20 In. Transom Only)

0435959

Housing Ay, Implr ( Contents Of Water Pump Repair Kit 25 In. Transom Only)

0331188

O-ring-thermostat ( Contents Of Water Pump Repair Kit)

Винт

Винт

Prop Nut & Keeper

Cotter Pin 10 Pk

Шайба

Винт

Screw, Anode

Винт

Seal ( Contents Of Water Pump Repair Kit)

5001593

Kit Ay, Impeller ( Contents Of Water Pump Repair Kit)

0331107

Imp Key ( Contents Of Water Pump Repair Kit)

0302035

O Ring ( Contents Of Water Pump Repair Kit)

0321008

Grommet Exh Hsg ( Contents Of Water Pump Repair Kit)

0126870

Bushing, Thrust

0338484

Gasket, Wtr Pmp 5pk ( Contents Of Water Pump Repair Kit Contents Of Gearcase Seal Kit)

0338486

Cup, Imp Housing ( Contents Of Water Pump Repair Kit Stainless Steel)

0338551

Cup Imp Housing ( Chrome Plated)

0338485

Plate, Water Pump ( Contents Of Water Pump Repair Kit Stainless Steel)

0338552

Plate Water Pump ( Chrome Plated)

0320570

Spacer Prop Nut

0436745

Anode&insert Ay

0338601

Grommet ( Contents Of Water Pump Repair Kit 25 In. Transom Only)

0354580

Sleeve ( Contents Of Water Pump Repair Kit 25 In. Transom Only)

Шайба

Converging Ring

Гильца

Prop Hub, 15 Spline

Bushing Ay, Prop

Kit Ay, Water Pump ( 20 In. Transom Only)

5001595

Kit Ay, Water Pump ( 25 In. Transom Only)

5006373

Kit Ay, Seal-gc ( Early Production Double Seal)

0435526

Cup & Plate Ay

0354731

O-ring ( Contents Of Gearcase Seal Kit)

5007968

Housing Ay, Implr ( Contents Of Water Pump Repair Kit 25 In. Transom Only)

0302325

Screw ( Contents Of Water Pump Repair Kit)
