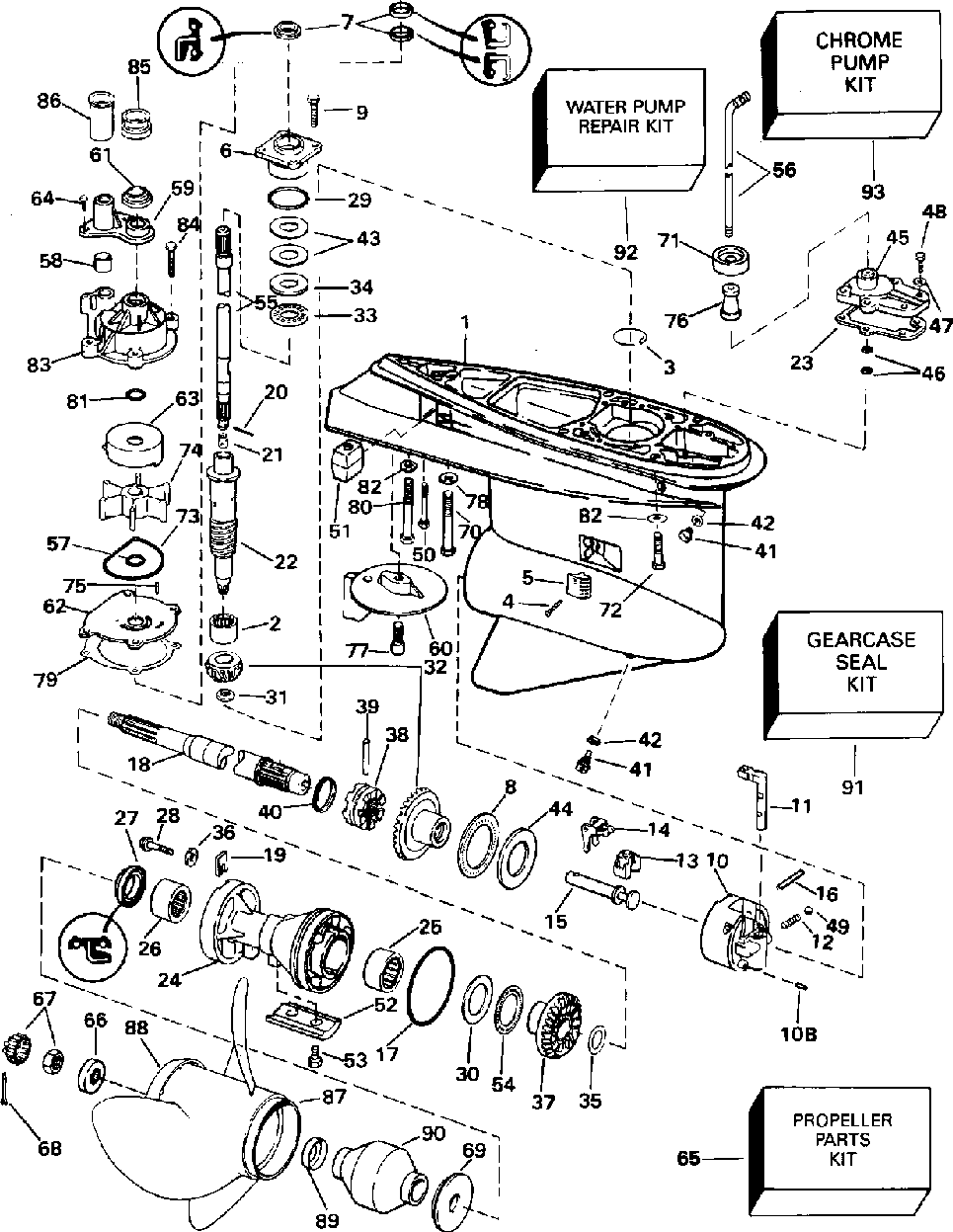

Редуктор

Evinrude E150WTLEOR
Evinrude
#oem кодцена
435478
5005401
G-case V6/std/offs ( Not Shown)
1
5007022
Gcase & Brg Ay, "o"
2
0387817
Roller Brg Ay
3
0338778
Кольцо стопорное
4
0337061
Винт
5
0337778
Screen, Water Inlet
6
0439476
Ds Brg Hsg&seal Ay ( Early Production Double Seal)
7
0329922
Oil Retainer ( Contents Of Gearcase Seal Kit Early Production Double Seal)
7
0329923
Oil Retainer ( Contents Of Gearcase Seal Kit Early Production Double Seal)
7
0341280
Seal, Driveshaft ( Contents Of Gearcase Seal Kit Late Production Single Seal)
8
0389042
Thrust Brg-fwd Gr
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
10B
0331880
Штифт
11
0915954
Detent
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0305123
O-ring ( Contents Of Gearcase Seal Kit)
18
5004765
Propshaft Ay, Serv
19
0333957
Retaining Tab
20
0311538
Pin, Roll
21
0338504
Retainer, Dr Sft
22
0345905
Driveshaft, Lower
23
0352165
Gasket ( Contents Of Gearcase Seal Kit)
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0434467
Подшипник игольчатый
27
0341281
Seal, Propshaft ( Contents Of Gearcase Seal Kit)
28
0350271
Screw, Brg Carrier
29
0314728
O Ring ( Contents Of Gearcase Seal Kit)
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
5004938
Gearset, V6 Fwd&pin
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0336565
Шайба
36
0328743
Шайба
37
0336561
Gear, Reverse .54
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw
42
0311598
Шайба
42
0333572
O-ring ( Contents Of Gearcase Seal Kit)
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
O-ring ( Contents Of Gearcase Seal Kit)
47
0328702
Шайба
48
0302325
Винт
49
0160084
Шарик
50
0328096
Screw, Anode
51
0436745
Anode&insert Ay
52
0431708
Анодная пластина
53
0908158
Винт
54
0382408
Подшипник
55
5000615
Kit, Upper D/s-20" ( 20 In. (508mm) Transom Models Only)
55
5000624
25in D/s Kit Up ( 25 In. (635mm) Transom Models Only)
56
0335509
Rod, Shift 20" ( 20 In. (508mm) Transom Models Only)
56
0335510
Rod, Shift 25" ( 25 In. (635mm) Transom Models Only)
57
0302035
Кольцо
58
0314008
Уплотнитель
59
0338893
Cover, Impeller Hsg
60
0338742
Tab, Trim-std
61
0320943
Уплотнитель
62
0338552
Plate Water Pump ( Chrome Plated)
62
0338485
Plate, Water Pump ( Stainless Steel)
63
0338551
Cup Imp Housing ( Chrome Plated)
63
0338486
Cup, Imp Housing ( Stainless Steel)
64
0306643
Винт
65
0434153
Kt Ay, V6prop Hdwe
66
0320570
Spacer Prop Nut
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0126870
Bushing, Thrust
69
0128777
Bushing, Thrust
70
0331998
Винт
71
0321008
Grommet Exh Hsg
72
0331999
Винт
73
0331353
Уплотнение
74
5001593
Kit Ay, Impeller
75
0331107
Imp Key
76
0321122
Spacer-shift Rod ( 25 In. (635mm) Transom Models Only)
77
0313715
Винт
78
0330265
Шайба
79
0338484
Gasket, Wtr Pmp 5pk ( Contents Of Gearcase Seal Kit)
80
0330263
Винт
81
0331188
O-ring-thermostat ( Refer To Omc Systematched Parts & Accessories Catalog For Propeller Chart)
82
0330266
Шайба
83
0435990
Housing Ay, Implr ( 20 In. (508mm) Transom Models Only)
83
0435959
Housing Ay, Implr ( 25 In. (635mm) Transom Models Only)
85
0338601
Grommet ( 25 In. (635mm) Transom Models Only)
86
0354580
Sleeve ( 25 In. (635mm) Transom Models Only)
88
0332394
Converging Ring
89
0313926
Гильца
90
0387157
Prop Hub, 15 Spline
90
0175401
Bushing Ay, Prop
90
0431730
Prop Hub Shtr
91
5006373
Kit Ay, Seal-gc ( Early Production Double Seal)
92
5001594
Kit Ay, Water Pump ( 20 In. (508mm) Transom Models Only)
92
5001595
Kit Ay, Water Pump ( 25 In. (635mm) Transom Models Only)
93
0435526
Cup & Plate Ay
29
0354731
O-ring ( Contents Of Gearcase Seal Kit)
83
5007968
Housing Ay, Implr ( 25 In. (635mm) Transom Models Only)
84
0302325
Винт
