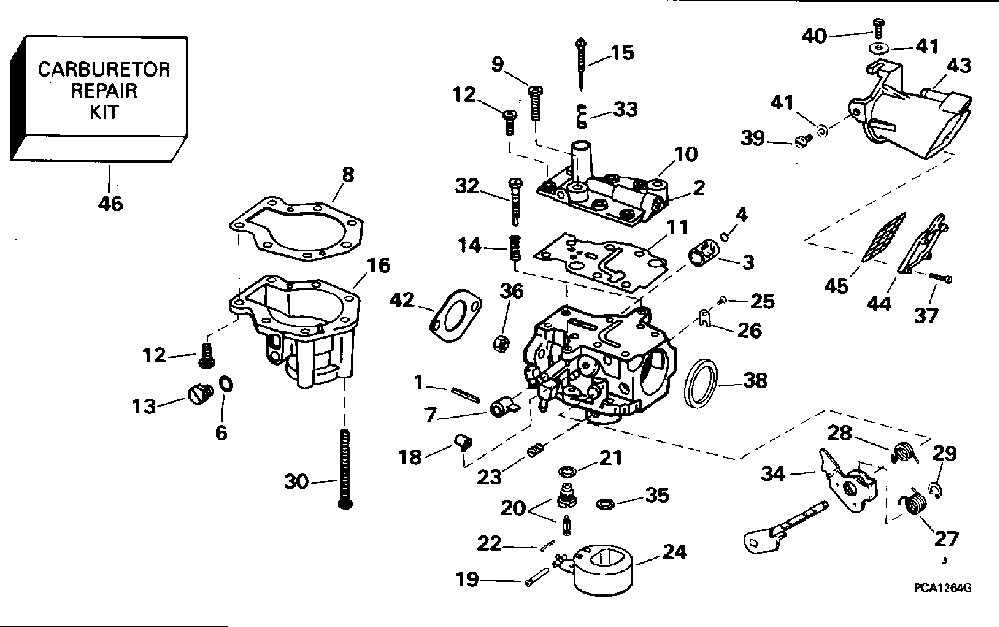

Carburetor Ay, 9.9 ( Not Shown 9.9 Rope Only Early Production - Stbd. Idle Adjustment)

Carburetor Ay, 9.9 ( Not Shown 10rel Early Production - Stbd. Idle Adjustment)

Roll Pin ( Early Production - Stbd. Idle Adjustment)

Roll Pin ( Late Production - Port Idle Adjustment)

Водозаборная решетка

Ролик

Кольцо уплотнительное

Шайба

Прокладка

Винт

Cover&insert Ay ( Replaced By 5000486 On 1999 5, 6, 9.9 & 15 H.p. 4-stroke Models. Replaced By 5000488 On 1999 8 H.p. 4-stroke Models.)

Прокладка

Винт

Винт

Пружина

Клапан запорный

Поплавковая камера

Cap, Restrictor.059

Штифт

Float Valve & Seat

Шайба

Защелка пружинная

Orifice Plug#30

Float&arm Ay

Screw ( 9.9 Rope Only 9.9 Te)

Retaining Clip ( 9.9 Rope Only 9.9 Te)

Spring ( 9.9 Rope Only 9.9 Te)

Spring ( 9.9 Rope Only 9.9 Te)

Ring ( 9.9 Rope Only 9.9 Te)

Винт

Screw, Adjustment ( Late Production - Port Idle Adjustment)

Пружина

Lever ( 9.9 Rope Only 9.9 Te)

Прокладка

Гайка

Винт

Seal, Air Silencer

Винт

Винт

Шайба

Gasket 5pk

Horn, Air Inlet

Седло

Screen, Air Horn

Рем.компл.Карбюратора

Lever ( Early Production - Stbd. Idle Adjustment)

Screw, Adjustment ( Early Production - Stbd. Idle Adjustment)

( Not Shown 9.9 Rope Only Late Production - Port Idle Adjustment)

( Not Shown 10rel Late Production - Port Idle Adjustment)

( Not Shown 9.9 Te Late Production - Port Idle Adjustment)
