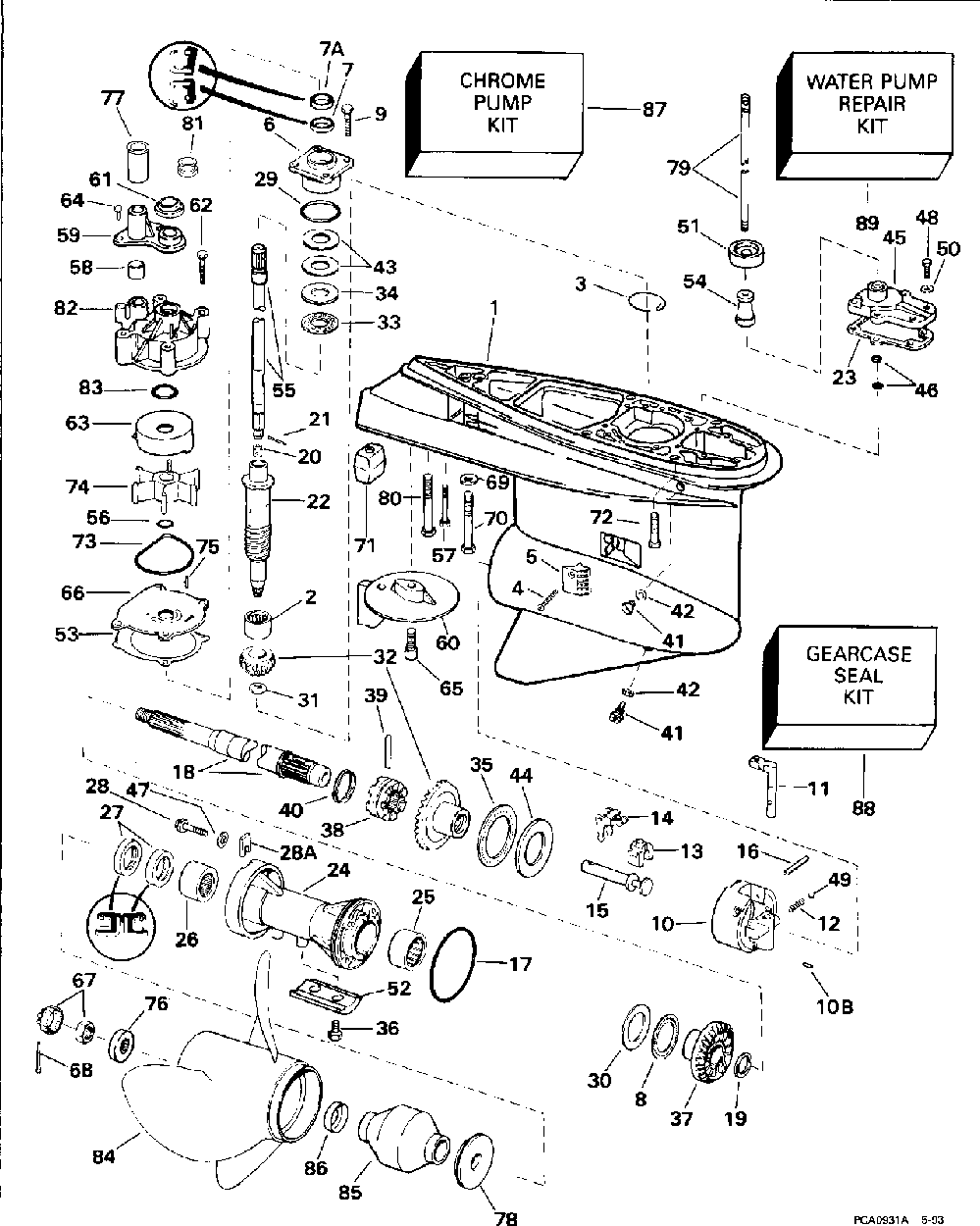

Редуктор

Evinrude E150WTLERC
Evinrude
#oem кодцена
435478
5005401
G-case V6/std/offs ( Not Shown)
1
5007022
Gcase & Brg Ay, "o"
2
0387817
Roller Brg Ay
3
0338778
Кольцо стопорное
4
0337061
Винт
5
0337778
Screen, Water Inlet
6
0439476
Ds Brg Hsg&seal Ay
7
0329923
Oil Retainer
7A
0329922
Oil Retainer
8
0382408
Подшипник
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
10B
0331880
Штифт
11
0915954
Detent
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0305123
Кольцо уплотнительное
18
5004765
Propshaft Ay, Serv
19
0336565
Шайба
20
0338504
Retainer, Dr Sft
21
0311538
Pin, Roll
22
0345905
Driveshaft, Lower
23
0352165
Прокладка
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0434467
Подшипник игольчатый
27
0334950
Уплотнение
28
0350271
Screw, Brg Carrier
28A
0333957
Retaining Tab
29
0314728
Кольцо
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
5004938
Gearset, V6 Fwd&pin
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0389042
Thrust Brg-fwd Gr
36
0908158
Винт
37
0336561
Gear, Reverse .54
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw
42
0311598
Шайба
42
0333572
Кольцо уплотнительное
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
Кольцо уплотнительное
47
0328743
Шайба
48
0302325
Винт
49
0160084
Шарик
50
0328702
Шайба
51
0321008
Grommet Exh Hsg ( Also Included In Water Pump Repair Kit 435929)
52
0431708
Анодная пластина
53
0338484
Gasket, Wtr Pmp 5pk ( Also Included In Water Pump Repair Kits 434421 & 435929)
54
0321122
Spacer-shift Rod ( 25 In. Models)
55
5000615
Kit, Upper D/s-20" ( 20 In. Models)
55
5000624
25in D/s Kit Up ( 25 In. Models)
56
0302035
Кольцо
57
0328096
Screw, Anode
58
0314008
Grommet ( Also Included In Water Pump Repair Kit 435929)
59
0338893
Cover, Impeller Hsg ( Also Included In Water Pump Repair Kit 435929)
60
0338742
Tab, Trim-std
61
0320943
Grommet ( Also Included In Water Pump Repair Kit 435929)
63
0338551
Cup Imp Housing ( Chrome Plated)
63
0338486
Cup, Imp Housing ( Stainless Steel Also Included In Water Pump Repair Kit 435929)
64
0306643
Screw ( Also Included In Water Pump Repair Kit 435929)
65
0313715
Винт
66
0338552
Plate Water Pump ( Chrome Plated)
66
0338485
Plate, Water Pump ( Stainless Steel Also Included In Water Pump Repair Kit 435929)
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0330265
Шайба
70
0331998
Винт
71
0436745
Anode&insert Ay
72
0331999
Винт
73
0331353
Seal ( Also Included In Water Pump Repair Kit 435929)
74
5001593
Kit Ay, Impeller ( Also Included In Water Pump Repair Kit 435929)
75
0331107
Imp Key ( Also Included In Water Pump Repair Kit 435929)
76
0320570
Spacer Prop Nut
77
0354580
Sleeve ( 25 In. Models Also Included In Water Pump Repair Kit 435929)
78
0126870
Bushing, Thrust
78
0128777
Bushing, Thrust
79
0335509
Rod, Shift 20" ( 20 In. Models)
79
0335510
Rod, Shift 25" ( 25 In. Models)
80
0330263
Винт
81
0338601
Grommet ( 25 In. Models Also Included In Water Pump Repair Kit 435929)
82
0435990
Housing Ay, Implr ( 20 In. Models)
82
0435959
Housing Ay, Implr ( 25 In. Models Also Included In Water Pump Repair Kit 435929)
83
0331188
O-ring-thermostat ( Also Included In Water Pump Repair Kit 435929)
84
0765188
Prop Ay, Al 14.5x19 ( Refer To Omc Systematched Parts & Accessories Catalog For Propeller Chart. Wtle & Wtxe Models Only)
85
0175401
Bushing Ay, Prop
85
0431730
Prop Hub Shtr
86
0313926
Гильца
87
0435526
Cup & Plate Ay
88
5006373
Kit Ay, Seal-gc
89
5001594
Kit Ay, Water Pump ( 20 In. Models)
89
5001595
Kit Ay, Water Pump ( 25 In. Models)
29
0354731
Уплотнительное кольцо
62
0302325
Винт
82
5007968
Housing Ay, Implr ( 25 In. Models Also Included In Water Pump Repair Kit 435929)
