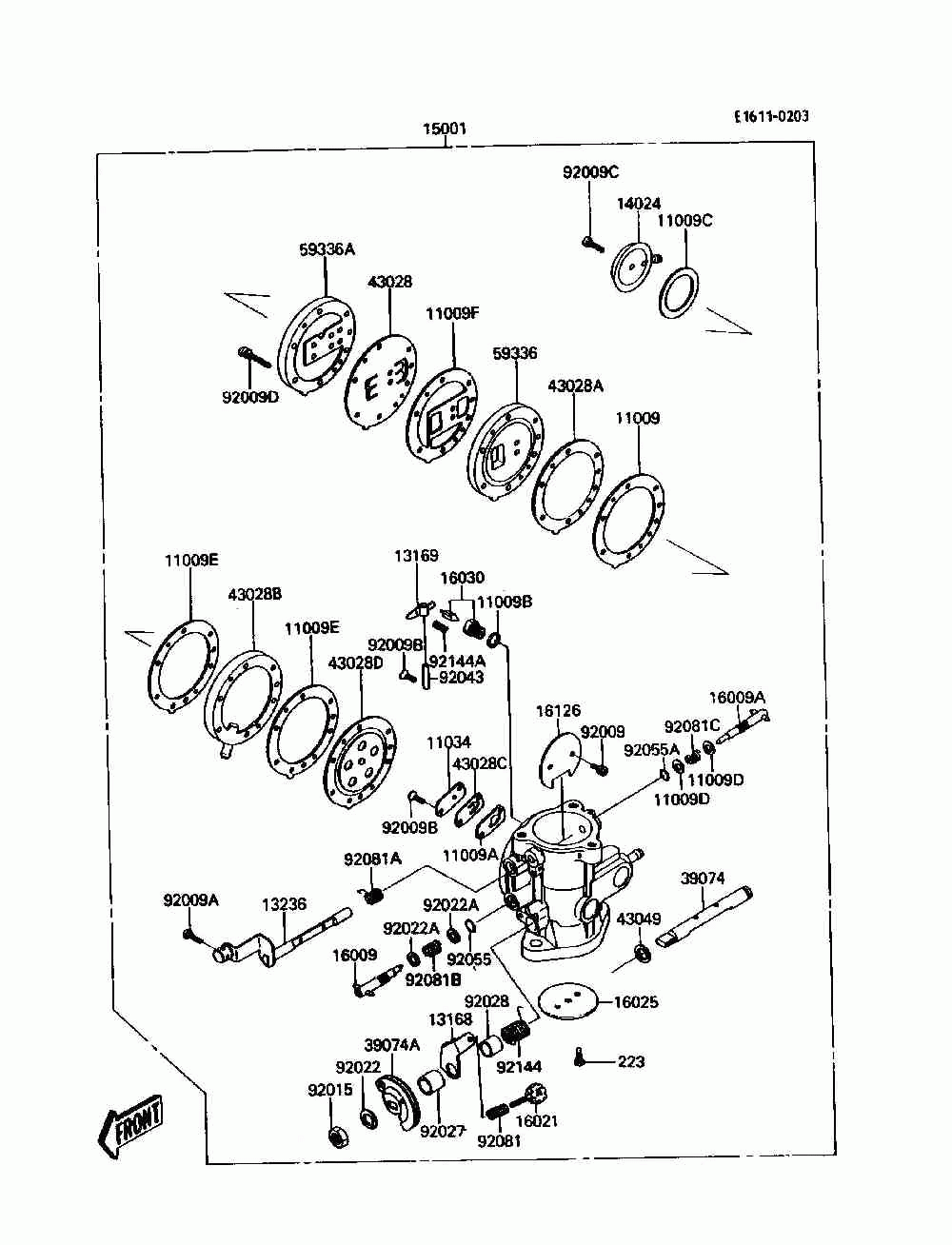

Карбюратор

Kawasaki JS300 (JS300-B3)
Kawasaki
#oem кодцена
11009
11009-3036
Прокладка
11009A
11060-3749
Прокладка
11009B
16029-004
Washer Float Vlv Seat
11009C
92065-526
Прокладка
11009D
92065-528
Шайба
11009E
11060-3704
Прокладка
11009F
11060-3705
Прокладка
11034
59086-541
Plate-carb. Side
13168
13168-3703
Lever, Throttle Shaft
13169
59001-506
Рычаг
13236
13236-3701
Lever-comp, Choke
14024
14024-3721
Cover, Carburetor
15001
15001-3728
Carburetor-assy
16009
16009-2092
Needle-jet, Pilot Scre
16009A
16009-3002
Screw, High Speed
16021
13320-3701
Lever-assy, Throttle
16025
16025-3702
Valve-throttle, #140
16030
16030-3702
Valve-float, #1.8
16126
16126-3701
Valve, Choke
39074
39074-3703
Lever-assy-throttle, S
39074A
39074-3704
Lever-assy-throttle, T
43028
43028-3001
Diaphragm, Pump
43028A
43028-3002
Diaphragm, Pump
43028B
43028-3701
Diaphragm, Pump
43028C
51069-501
Diaphragm, Check Seat
43028D
51069-502
Diaphragm, Main
43049
43049-3702
Прокладка
59336
59336-3002
Body, Diaphragm(2)
59336A
59336-3003
Body, Diaphragm(3)
92009
92009-3704
Screw, Choke Valve
92009A
92009-3705
Screw, Choke Lever
92009B
92009-3714
Винт
92009C
92011-510
Screw 4x12
92009D
92011-515
Screw 4x30
92015
92015-3717
Nut, Throttle Lever
92022
92022-3722
Washer, Throttle Lever
92022A
92022-537
Шайба
92027
92027-3709
Collar, Throttle Shaft
92028
92028-514
Bushing, Thrtle Shaft
92043
16032-006
Float Pin
92055
92055-510
"0" Ring
92055A
92055-1093
"0" Ring, Dr
92081
16040-022
Spring, Cable Pully
92081A
92081-3705
Spring, Choke Shaft
92081B
92081-528
Пружина
92081C
92081-534
Пружина
92144
99996-1116
Spring/bushing Set
92144A
92144-3709
Пружина
223
223B0307
Screw-pan-ws-cros
