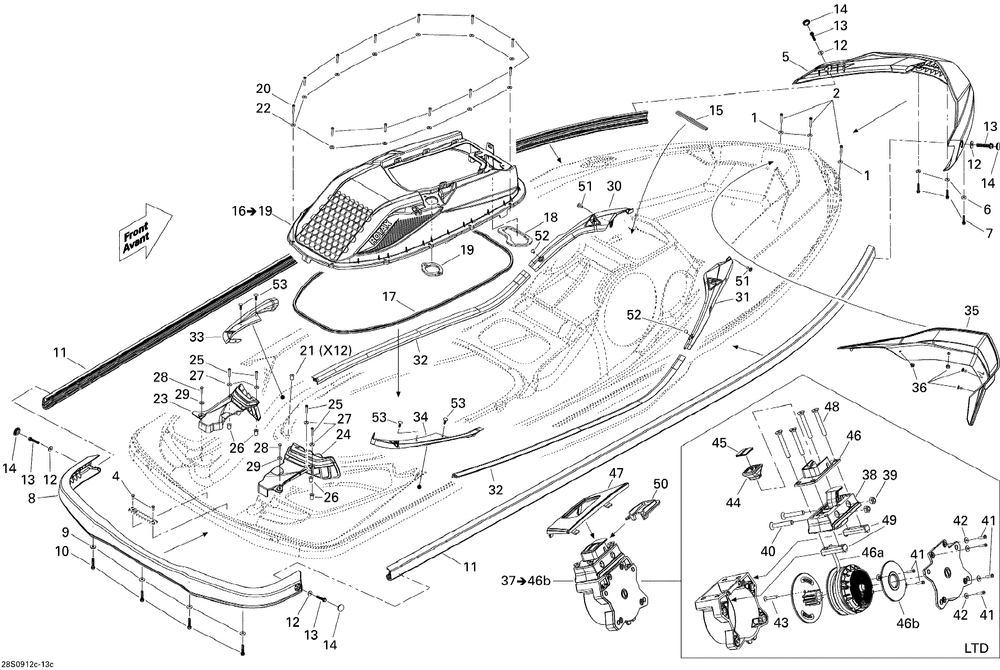

Корпус,задняя часть 3

Sea-Doo (Bombardier) GTX LIMITED iS 255, 1503 HO ETC
Sea-Doo (Bombardier)
#oem кодцена
1
234042600
Шайба
2
241142560
Screw-pt.hex.flange K40 X 25
4
211000106
Screw-forming Hexagonal
5
291002588
Pare Chocs *front Bumper
6
234062600
Шайба
7
243163560
Винт
8
291002592
Pare-chocs Arr*rear Bumper
9
234082600
Шайба
11
291002593
Бампер
14
291002744
Крышка
15
271000110
Moul.protect. *trim-protect.
16
291002763
Extension Carro*deck Extension (includes 16 To 19 )
17
293250185
Сальник
18
293250205
Уплотнение
19
293250209
Уплотнение
20
205463560
Screw-socket Bn.hd.iso.7380a2
21
250100083
Well-nut M6 X 1.0mm
23
291002658
Grille Arr. G *lh Rear Gril
24
291002698
Grille Arr. D *rh Rear Gril
28
207162560
Винт
30
291002837
Joint Av Ga *front Lh Joint
31
291002838
Joint Av Dr *front Rh Joint
32
291002839
Joint Mid *mid Joint
33
291002696
Joint Arr Ga *rear Lh Joint
34
291002697
Joint Arr Dr *rear Rh Joint
35
291002743
Дефлектор
36
293150123
Заклепка 3/16
37
291002628
Corde Assembl *rope Assy (includes 37 To 46b )
38
291002718
Taquet Coinceur*jam Cleat Syst
39
232561200
Гайка с тефлоном
40
205364060
Screw-socket Hd.ctsk.din.7991-a2
41
241731260
Screw-pt.ov.hd.ph.ka30 X 12
42
234032600
Шайба
43
204100049
"screw-tapp.ctsk.fl.hd.ph.#8 X 1"""
44
291002726
Bouton *button
45
291002754
Capuchon-bouton*button Cap
46
291002729
Guide De Corde *rope Guide
291002733
"corde 3/16"" *3/16"" Rope"
291002762
Couvercle Inter*inside Cover
47
291002724
Cadre Enrouleur*front Rewind C
48
205364560
Screw-socket Hd.ctsk.din.7991-a2
49
291002755
Logement Ecrous*double Cage
50
291002727
Sous-levier *under Cam
52
293730010
Пистон черный
53
293730006
Пистон черный
