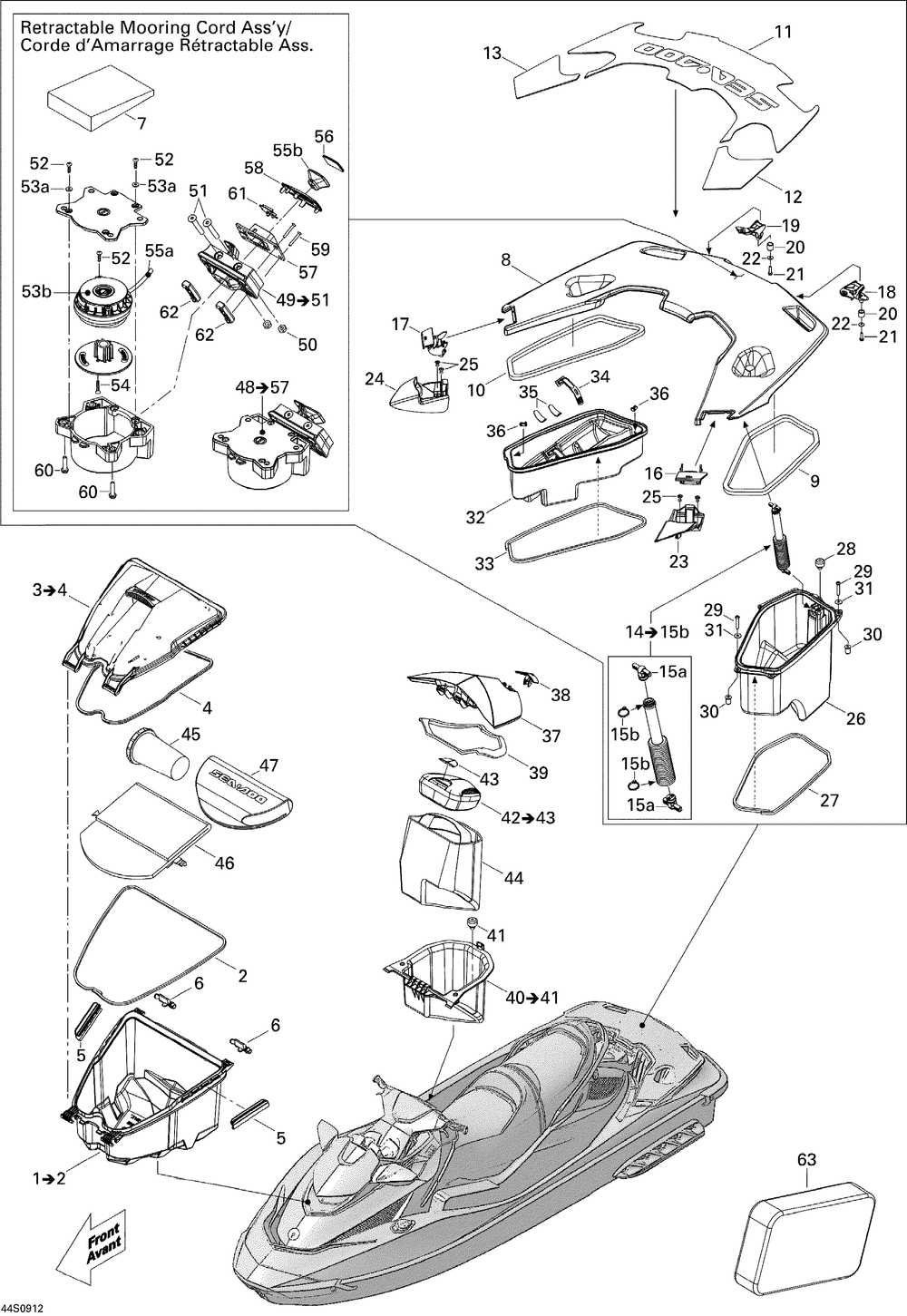

Камеры хранения

Sea-Doo (Bombardier) GTX LIMITED iS 255, 1503 HO ETC
Sea-Doo (Bombardier)
#oem кодцена
1
264000007
Coffre Bagage *storage Bin (includes 1 To 2 )
2
293250161
Прокладка
3
264000009
Couver. Coffre *bin Lid (includes 3 To 4 )
4
293250210
Joint Neoprene *neoprene Seal
5
269501609
Зажим
6
264000024
Loquet *latch
7
264000025
Mousse Platefor*platform Foam
8
264000034
Plateforme Arr.*rear Platform (includes 8 To 13 )
9
293250186
Прокладка
11
291002585
Мат задний
12
264000040
Tapis Arriere *carpet-rear Lh
13
264000041
Tapis Arriere *carpet-rear Rh
14
264000026
Amortisseur *shock Ass Y (includes 14 To 15b )
269501717
Embout Cyl. *end-fitting
293750001
Стяжка 94 мм
16
264000020
Loquet *latch
17
264000021
Loquet *latch
18
264000003
Support Pivot *pivot Support
19
264000032
Support Pivot *pivot Support
20
264000042
Втулка
21
243162560
Винт
22
234062600
Шайба
23
264000022
Base Loquet Ga *latch Base Lh
24
264000023
Base Loquet Dr *latch Base Rh
25
293150123
Заклепка 3/16
26
264000001
Coffre Gauche *lh.tray
27
293250218
Прокладка
28
293830005
Резиновый буфер
29
205463560
Screw-socket Bn.hd.iso.7380a2
30
250100083
Well-nut M6 X 1.0mm
32
264000002
Coffre Droit *rh.tray
34
269500408
Sangle *strap
35
264000043
Tampon *pad
36
293150089
Пластиковая заклепка
37
264000004
Porte De Coffre*door
38
264000019
Loquet Noir *latch-black
39
293250204
Прокладка
40
264000031
Coffre A Gant *box-gloves (includes 40 To 41 )
42
291002814
Boitier *case (includes 42 To 43 )
43
291002793
Autocollant Sea*decal Sea-doo
44
291002761
Sac Protection *protect Liner
45
295100177
Trousse De Sec*safety Kit Pwc
46
269501744
Sac Etanche10 *drybag 10
47
269501318
Sac De Sable *sandbag
48
291002628
Corde Assembl *rope Assy (includes 48 To 57 )
49
291002718
Taquet Coinceur*jam Cleat Syst (includes 49 To 51 )
50
232561200
Гайка с тефлоном
51
205364060
Screw-socket Hd.ctsk.din.7991-a2
52
241731260
Screw-pt.ov.hd.ph.ka30 X 12
234032600
Шайба
291002762
Couvercle Inter*inside Cover
54
204100049
"screw-tapp.ctsk.fl.hd.ph.#8 X 1"""
291002733
"corde 3/16"" *3/16"" Rope"
291002726
Bouton *button
56
291002754
Capuchon-bouton*button Cap
57
291002729
Guide De Corde *rope Guide
58
291002725
Cadre Enrouleur*rewind Frame
59
205364560
Screw-socket Hd.ctsk.din.7991-a2
60
211000023
Винт
61
291002727
Sous-levier *under Cam
62
291002755
Logement Ecrous*double Cage
63
280000435
Bache Gtxltd Is*cover Gtxltdis
