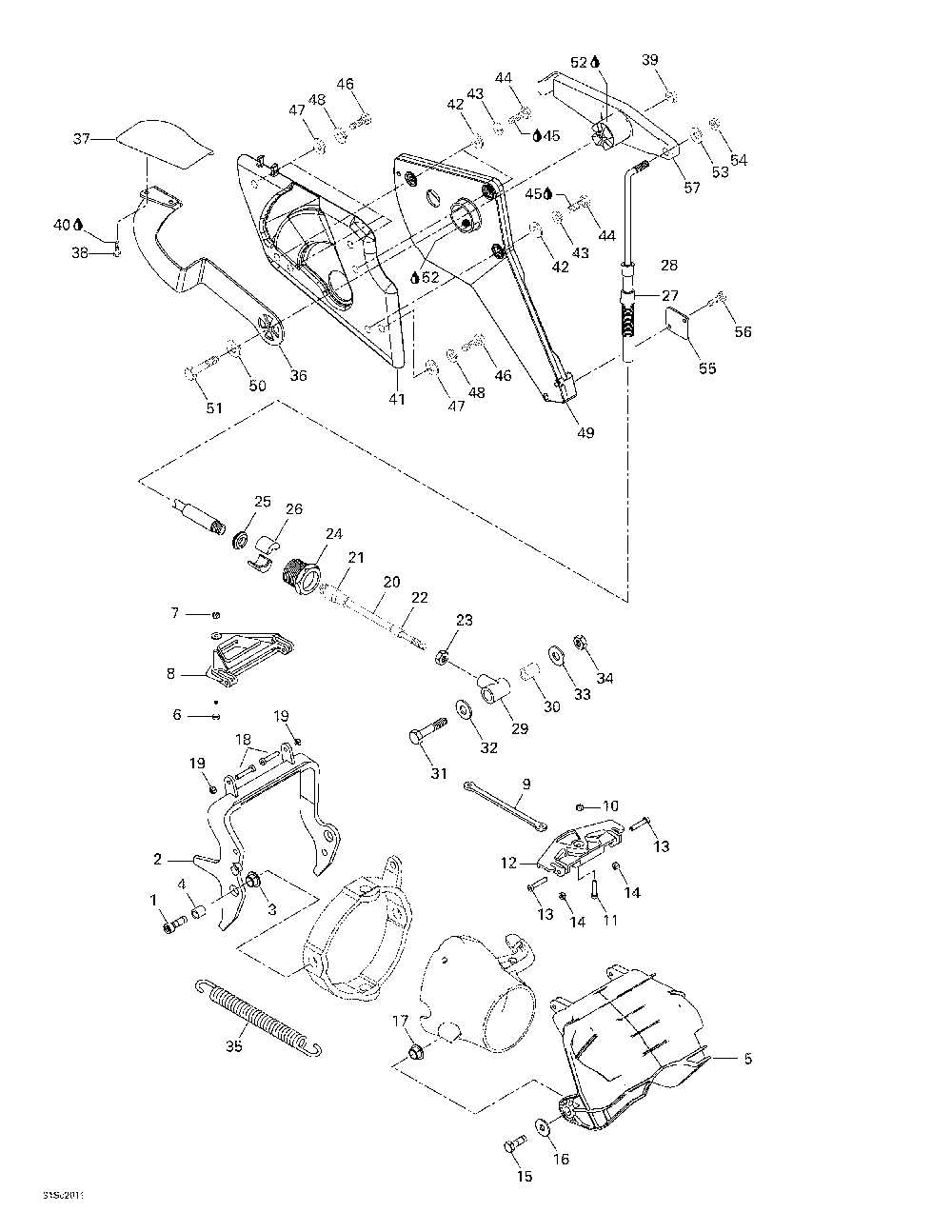

Задний ход

Sea-Doo (Bombardier) RX, 5513/5514
Sea-Doo (Bombardier)
#oem кодцена
1
250000026
Boulon De Pivot*screw-pivot
1
271001092
Tige Vts *rod-vts Includes 1 - 2.
2
271001012
Bras Noir *arm-black
2
232551600
Гайка
3
271000321
Douil.venturi*bushing-venturi
3
250000018
Boulon De Pivot*screw-pivot
4
271001039
Втулка
4
293550004
Смазка диэлектрическая
5
211000081
Винт
5
268000028
Забрало - реверса
6
232561600
Гайка стопорная эластичная 985-A2
7
234052600
Шайба
8
271000459
Boyau Protect. *hose-protect.
8
268000013
Triangle *triangle
9
271001018
Barre Raccord *rod-connector
9
293650082
Зажим шланга
10
293650083
Зажим шланга
11
278000428
Vis Sans Fin *screw-worm Includes 11 - 29.
11
278000595
Couvercle Vts. *cover-vts. Includes 11 - 29.
11
278001292
Moteur Vts.ass.*motor-vts.assy Includes 11 - 29.
11
278001605
Boitier Vts *vts Housing Includes 11 - 29.
11
278001698
Bloc Coulissant*slider Block Includes 11 - 29.
11
293200027
Joint Etanche *gasket Includes 11 - 29.
11
293720015
Passe-fils *grommet Includes 11 - 29.
12
268000014
Pivot Raccord *rod-pivot
13
250000023
Boulon De Pivot*screw-pivot
12
278000222
Электрическая клемма "папа"
13
278000223
Электрическая клемма "мама"
14
278000156
Bloc 6 Circ.fem*housing-tab
15
207382560
Винт
15
278000220
Bloc 2 Circ.mal*housing-tab(m)
16
234082600
Шайба
16
278000218
Уплотнитель-провода
17
277000856
Втулка
17
278000230
Электрическая клемма "папа"
18
278001008
Etui Thermique *sheath-insulat
20
277000848
Cable Renverse.*cable-reverse Includes 20 - 23.
19
278001009
Электрическая клемма "мама"
21
277000473
Embout Grand *boot-large
20
278001007
Etui Thermique *sheath-insulat
22
277000466
Embout Petit *boot-small
22
278000231
Etui Thermique *sheath-insulat
23
212100005
Nut-hexagonal
24
277000052
Стопор троса
25
211100009
Шайба
26
277000055
Полукольцо
29
277001204
Rotule *joint
30
271001020
Втулка
31
207063560
Винт
30
292000250
Support Vts Ass*support-vts As
32
234062600
Шайба
31
293830027
Уплотнительная шайба
32
211100020
Nut-special M27
33
234061600
Шайба
33
243041660
Screw-plastite Hex.unsl
35
271001328
Пружина
34
293900007
Douille Venturi*bushing-ventur
36
271000982
Levier Manette *lever-handle
35
293550010
Graisse Synth. *grease-synth.
36
293300044
Кольцо
37
271000983
Manette Renver.*handle-reverse
37
293800041
Appret Loctite *primer-loctite
38
208451260
Screw-ctsk.fl.hd.ph.din.965a-a2
38
266000013
Bague Assiette *trimming Ring
39
211000127
Винт
40
293800060
Фиксатор резьбы loctite-243
41
271000984
Log.man.renv. *housing-handle
43
234161601
Шайба Din.127b-a2
44
207161260
Винт
46
207161660
Винт
49
268000010
Support Cable *cable-support
53
234051600
Шайба
54
212000006
Nut-stop Elastic Ms-17830
55
277001058
Plaque Retenue *bracket
56
241141660
Винт K40 X 16
57
271000986
Рычаг
6
250000018
Boulon De Pivot*screw-pivot (5.000 Per Pack)
7
232551600
Nut-stop Elastic Din.985a2 (5.000 Per Pack)
10
232551600
Nut-stop Elastic Din.985a2 (5.000 Per Pack)
11
250000018
Boulon De Pivot*screw-pivot (5.000 Per Pack)
14
232551600
Nut-stop Elastic Din.985a2 (5.000 Per Pack)
18
250000018
Boulon De Pivot*screw-pivot (5.000 Per Pack)
19
232551600
Nut-stop Elastic Din.985a2 (5.000 Per Pack)
21
278001292
Moteur Vts.ass.*motor-vts.assy Includes 21 - 23.
23
278000230
Cosse Male *terminal-male (10.000 Per Pack)
24
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
24
277001729
Стопор троса
25
293720015
Люверс
26
278000428
Vis Sans Fin *screw-worm
27
278001698
Bloc Coulissant*slider Block
27
277000473
Embout Grand *boot-large (5.000 Per Pack)
28
293200027
Прокладка
28
277000466
Embout Petit *boot-small (5.000 Per Pack)
29
278000595
Couvercle Vts. *cover-vts.
34
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
39
232561600
Nut-stop Elastic Din.985-a2 (5.000 Per Pack)
42
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
47
234062600
Washer-flat Din.9021b-a2 (10.000 Per Pack)
48
234161601
Washer-lock Helical Din.127b-a2 (5.000 Per Pack)
50
234061600
Washer-flat Din.125a-a2 (25.000 Per Pack)
51
207161660
Screw-hex.cap Din.933a2 (5.000 Per Pack)
52
293550010
Graisse Synth. *grease-synth.
