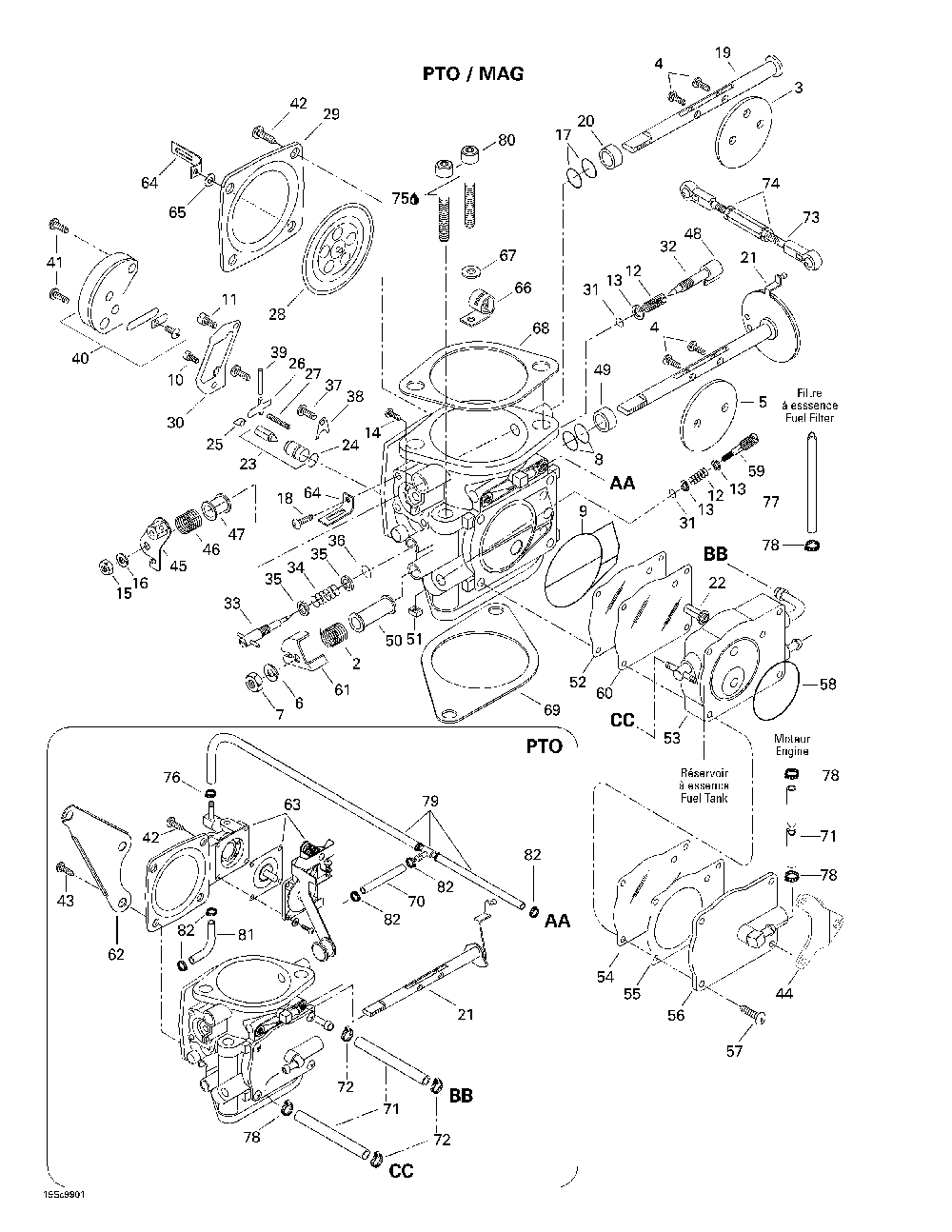

Карбюратор

Sea-Doo (Bombardier) GSX Limited, 5848/5849
Sea-Doo (Bombardier)
#oem кодцена
1
270500417
Carburateur Pto*carburator-pto Includes 1 - 69. Gsx Limited Pto 5848/5849.
270500416
Carburateur Mag*carburator-mag Gsx Limited Mag 5848/5849.
2
270500413
Ressort *spring Gsx Limited Pto 5848/5849.
270500319
Tige De Liaison*rod-link Carb. Gsx Limited Mag 5848/5849.
4
270500156
Винт и шайба
6
270500011
Шайба пружинная
7
270500376
Гайка
8
270500222
Кольцо
9
270500370
Кольцо
10
270500427
Gicleur Ralenti*jet-pilot 75
11
270500371
Gicleur Princ. *jet-main 162.5
12
270500091
Пружина
13
270500136
Шайба
14
270500228
Винт
15
270500229
Гайка
16
270500230
Шайба пружинная
17
270500234
Кольцо
18
270500358
Vis Ass. *screw-assy. Gsx Limited Mag 5848/5849.
20
270500239
Кольцо
22
270500115
Фильтр топливный
23
270500208
Pointeau 2.0 *valve-needle
24
270500127
Кольцо
25
270500129
Крепёж
26
270500128
Рычаг клапана
27
270500313
Пружина
28
270500132
Диафрагма в сборе
29
270500133
Couvercle *cover Gsx Limited Mag 5848/5849.
30
270500131
Прокладка
31
270500144
Кольцо
32
270500113
Винт-регулятор
33
270500020
Винт
34
270500019
Пружина
35
270500018
Шайба
36
270500119
Кольцо
37
270500155
Винт и шайба
38
270500125
Пластина
39
270500038
Палец
40
270500124
Клапан
41
270500123
Винт
42
270500243
Vis *screw Gsx Limited Mag 5848/5849.
270500322
Vis *screw Gsx Limited Pto 5848/5849.
43
270500238
Vis *screw Gsx Limited Pto 5848/5849.
44
270500440
Support Cable *bracket-cable Gsx Limited Mag 5848/5849.
45
270500431
Levier Etrang. *lever-choke As
46
270500382
Пружина
47
270500381
Кольцо
48
270500154
Крышка белая
49
270500353
Bague *ring Gsx Limited Mag 5848/5849.
270500435
Bague *ring Gsx Limited Pto 5848/5849.
50
270500378
Кольцо
51
270500249
Ecrou *nut Gsx Limited Mag 5848/5849.
52
270500369
Diaphragme *diaphragm Gsx Limited Mag 5848/5849.
53
270500410
Carter Pompe As*body-pump Assy Gsx Limited Mag 5848/5849.
54
270500366
Diaphragme *diaphragm Gsx Limited Mag 5848/5849.
55
270500365
Joint Etanche *gasket Gsx Limited Mag 5848/5849.
56
270500405
Couvercle Pompe*cover-pump Gsx Limited Pto 5848/5849.
270500409
Couvercle Pompe*cover-pump Gsx Limited Mag 5848/5849.
57
270500303
Vis & Rondelle *screw-& Washer Gsx Limited Mag 5848/5849.
58
270500363
Joint Torique *o Ring Gsx Limited Mag 5848/5849.
59
270500288
Vis Ajustement *screw-adjuster Gsx Limited Mag 5848/5849.
60
270500368
Diaphragme *diaphragm Gsx Limited Mag 5848/5849.
61
270500412
Levier Acc. *lever-throttle Gsx Limited Pto 5848/5849.
270500436
Levier Acc. *lever-throttle Gsx Limited Mag 5848/5849.
62
270500403
Attache *bracket Gsx Limited Pto 5848/5849.
63
270500433
Couv.diaphragme*cover-diaphragm Gsx Limited Pto 5848/5849.
64
270500359
Plaque *plate Gsx Limited Mag 5848/5849.
65
270500402
Rondelle *washer Gsx Limited Mag 5848/5849.
66
293850018
Attache Collier*open Clamp Gsx Limited Mag 5848/5849.
67
234081600
Washer-flat Din.125a-a2 Gsx Limited Mag 5848/5849.
68
270500384
Прокладка
69
293250135
Прокладка
70
270500342
Патрубок
71
275500139
Шланг 6MM. 4.572m
72
293650042
Зажим
74
270500351
Гайка
270500352
Гайка
75
293550010
Graisse Synth. *grease-synth.
76
293650071
Зажим
78
293650170
Зажим шланга
79
270500406
Boyau Ass. *hose-assy.
80
231182060
Винт
81
270500432
Патрубок
82
293650043
Зажим
