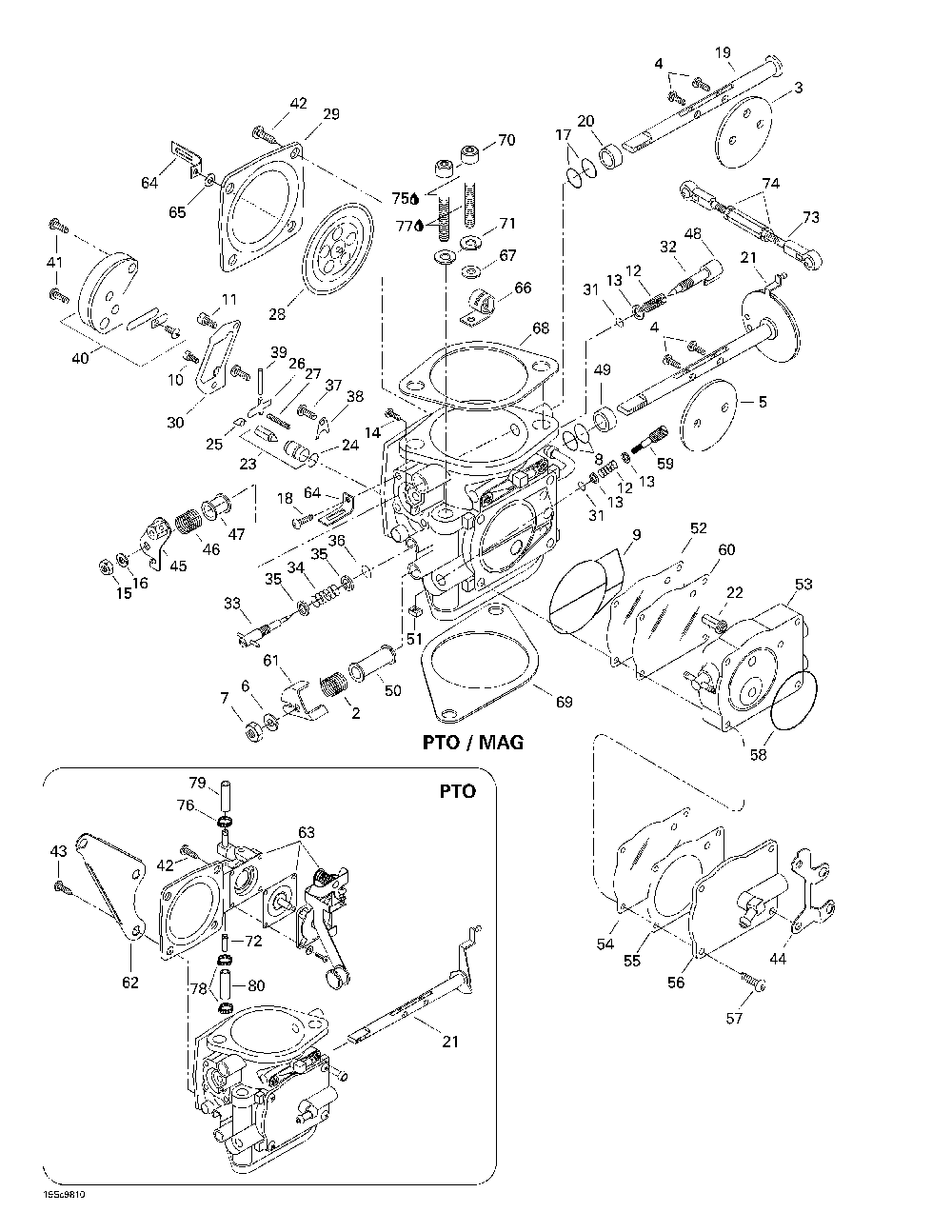

Карбюратор

Sea-Doo (Bombardier) GTX Limited, 5837/5842
Sea-Doo (Bombardier)
#oem кодцена
1
270500332
Carburateur Pto*carburator-pto Includes 1 - 65. Gtx Limited Pto 5837/5842.
270500331
Carburateur Mag*carburator-mag Gtx Limited Mag 5837/5842.
2
270500413
Пружина
4
270500156
Винт и шайба
6
270500011
Шайба пружинная
7
270500376
Гайка
8
270500222
Кольцо
9
270500370
Кольцо
10
270500408
Gicleur Ralenti*jet-pilot 82.5
11
270500411
Gicleur Princ. *jet-main 165.0
12
270500091
Пружина
13
270500136
Шайба
14
270500228
Винт
15
270500229
Гайка
16
270500230
Шайба пружинная
17
270500234
Кольцо
18
270500358
Vis Ass. *screw-assy. Gtx Limited Mag 5837/5842.
20
270500239
Кольцо
22
270500115
Фильтр топливный
23
270500208
Pointeau 2.0 *valve-needle
24
270500127
Кольцо
25
270500129
Крепёж
26
270500128
Рычаг клапана
27
270500313
Пружина
28
270500132
Диафрагма в сборе
29
270500133
Couvercle *cover Gtx Limited Mag 5837/5842.
30
270500131
Прокладка
31
270500144
Кольцо
32
270500113
Винт-регулятор
33
270500020
Винт
34
270500019
Пружина
35
270500018
Шайба
36
270500119
Кольцо
37
270500155
Винт и шайба
38
270500125
Пластина
39
270500038
Палец
40
270500124
Клапан
41
270500123
Винт
42
270500243
Vis *screw Gtx Limited Mag 5837/5842.
270500322
Vis *screw Gtx Limited Pto 5837/5842.
43
270500238
Vis *screw Gtx Limited Pto 5837/5842.
44
270500407
Attache *bracket Gtx Limited Mag 5837/5842.
45
270500414
Levier Etrang. *lever-choke As
46
270500382
Пружина
47
270500381
Кольцо
48
270500154
Крышка белая
49
270500353
Кольцо
50
270500378
Кольцо
51
270500249
Ecrou *nut Gtx Limited Mag 5837/5842.
52
270500369
Diaphragme *diaphragm Gtx Limited Mag 5837/5842.
53
270500410
Carter Pompe As*body-pump Assy Gtx Limited Mag 5837/5842.
54
270500366
Diaphragme *diaphragm Gtx Limited Mag 5837/5842.
55
270500365
Joint Etanche *gasket Gtx Limited Mag 5837/5842.
56
270500405
Couvercle Pompe*cover-pump Gtx Limited Pto 5837/5842.
270500409
Couvercle Pompe*cover-pump Gtx Limited Mag 5837/5842.
57
270500303
Vis & Rondelle *screw-& Washer Gtx Limited Mag 5837/5842.
58
270500363
Joint Torique *o Ring Gtx Limited Mag 5837/5842.
59
270500288
Vis Ajustement *screw-adjuster Gtx Limited Mag 5837/5842.
60
270500368
Diaphragme *diaphragm Gtx Limited Mag 5837/5842.
61
270500412
Levier Acc. *lever-throttle
62
270500403
Attache *bracket Gtx Limited Pto 5837/5842.
63
270500404
Couv.diaphragme*cover-diaphragm Gtx Limited Pto 5837/5842.
64
270500359
Plaque *plate Gtx Limited Mag 5837/5842.
65
270500402
Rondelle *washer Gtx Limited Mag 5837/5842.
66
293850018
Attache Collier*open Clamp Gtx Limited Mag 5837/5842.
67
234081600
Washer-flat Din.125a-a2 Gtx Limited Mag 5837/5842.
68
270500384
Прокладка
69
293250135
Прокладка
70
231082060
Винт DIN.912A2
71
234180602
Шайба блокирующая DIN.128A-A2
72
270500348
Жиклер
73
270500319
Tige De Liaison*rod-link Carb. Includes 73 - 74.
74
270500351
Гайка
270500352
Гайка
75
293550010
Graisse Synth. *grease-synth.
76
293650071
Зажим
77
293800060
Фиксатор резьбы loctite-243
78
293650043
Зажим
79
270500406
Boyau Ass. *hose-assy.
80
270500342
Патрубок
