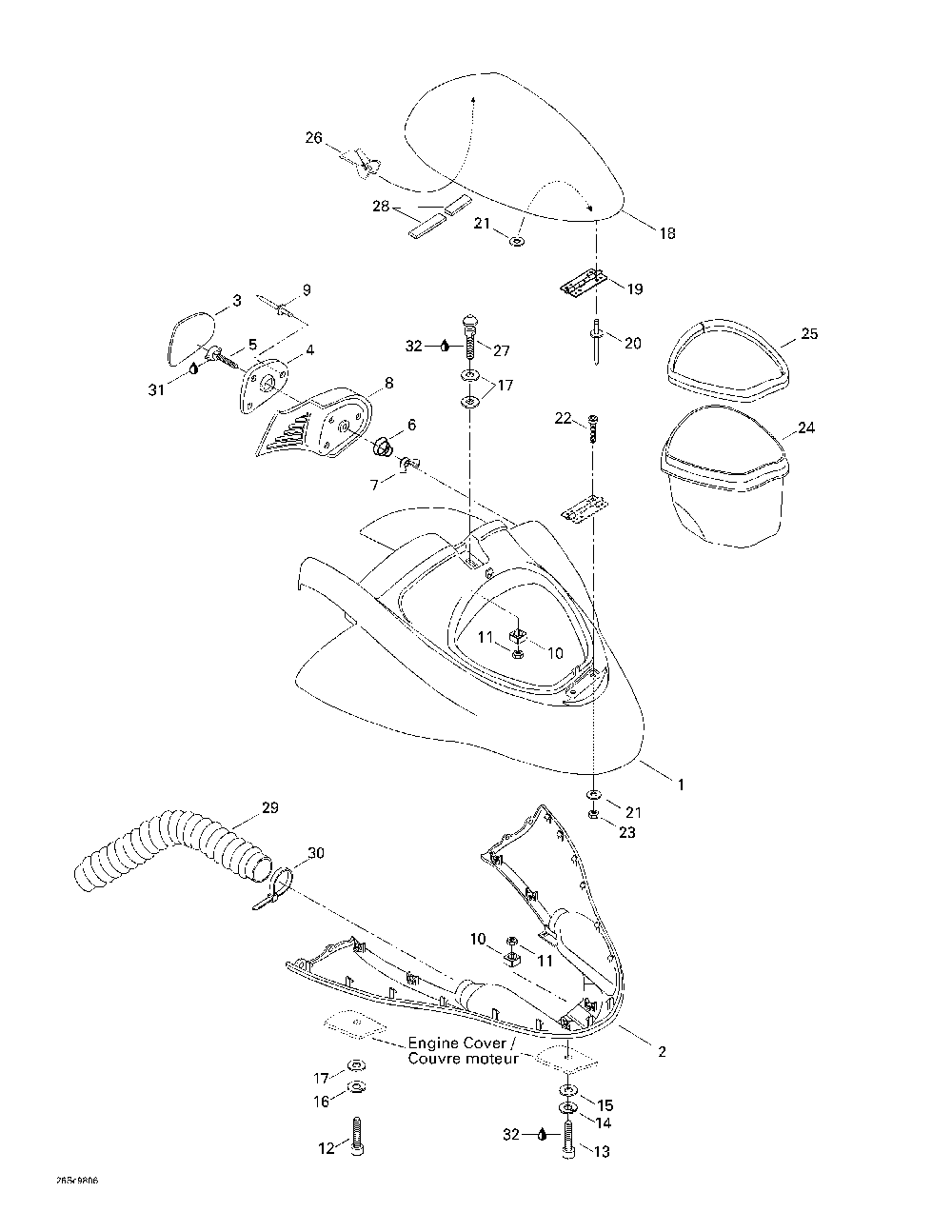

  6. 09- storage cover

09- storage cover

Sea-Doo (Bombardier) XP Limited
Sea-Doo (Bombardier)
#oem кодцена
1
269500328
Couv.bagage Sup*cover-stor.top
2
269500527
Couv.bagage Inf*cover-stor.low
3
269500329
Miroir Droit *mirror-rh.
269500330
Miroir Gauche *mirror-lh.
4
269500332
Support Droit *support-rh.
269500331
Суппорт левый
5
269500079
Rotule Miroir *mirror Joint
6
269500082
Ressort Miroir *spring-mirror
7
232661600
Nut-wing Ansi B18.17 Type A
8
269500333
Boitier Miroir *housing-rh.
269500334
Boitier Miroir *housing-lh.
9
293150005
Rivet-pop 3/16 *rivet-pop 3/16 Use Two Washers On Each Side
10
269500252
Logement Ecrou *housing-nut As Includes 10 - 11.
11
232561600
Гайка стопорная эластичная 985-A2
12
205062560
Винт DIN.912A2
13
205082060
Винт DIN.912A2
14
234181601
Шайба Din.127b-a2
15
234082600
Шайба
16
234161601
Шайба Din.127b-a2
17
234062600
Шайба
18
269500528
Couv.acces *cover-access
19
269500338
Charniere *hinge
20
204000081
Заклепка 3/16
21
234052600
Шайба
22
205451660
Screw-socket Bn.hd.iso.7380a2
23
232551600
Гайка
24
269501121
Coffre A Gant *box-gloves
25
293250047
Anneau Neoprene*seal-neoprene
26
269501487
Loquet *latch
27
291001242
Ergot *lug
28
293200003
Joint Etanche *seal-tray
29
269500473
Tube Vent.ram *tube-vent Ram
30
293750018
Tie Rap 371mm *tie-rap 371mm
31
293550010
Graisse Synth. *grease-synth.
32
293800060
Фиксатор резьбы loctite-243
