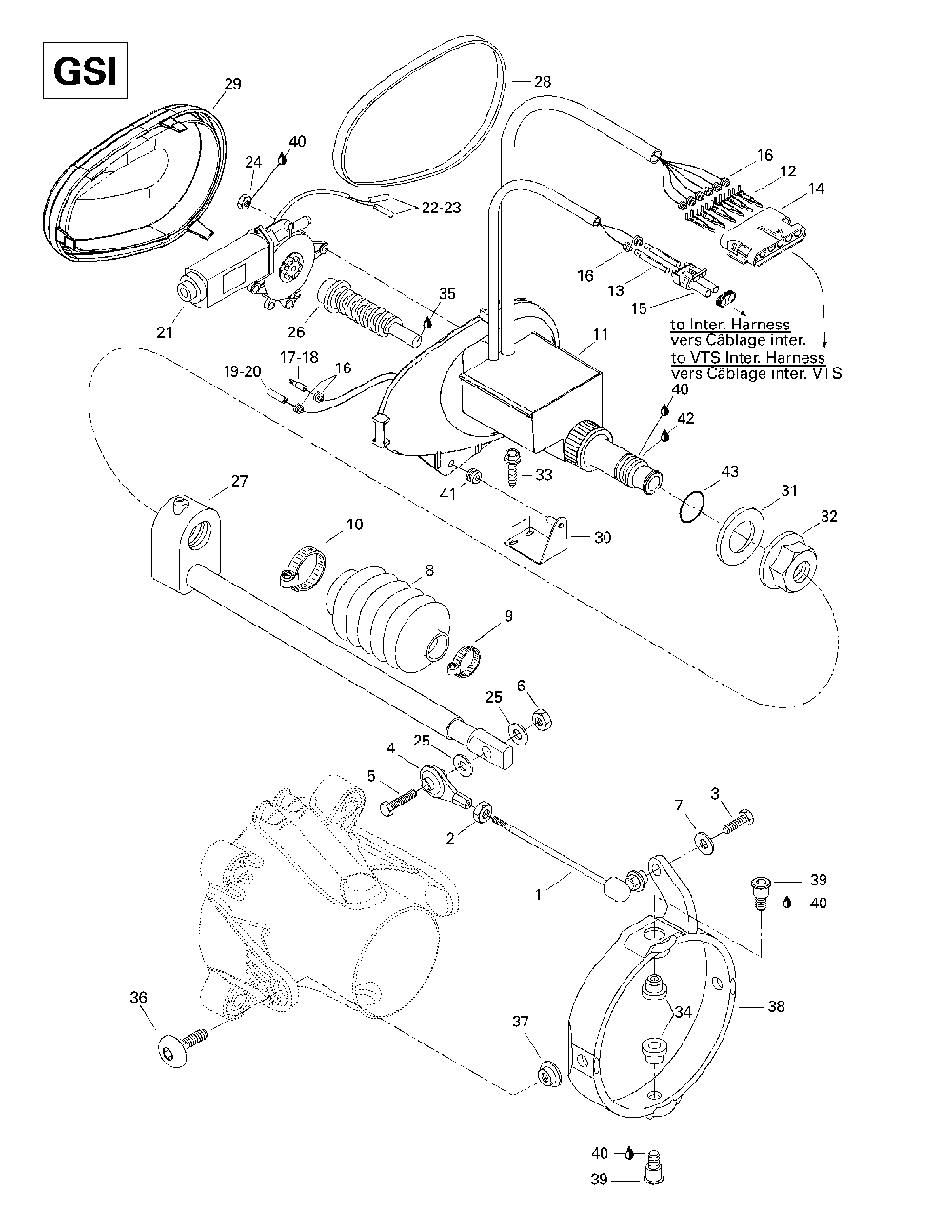

05- trim (gsi)

Sea-Doo (Bombardier) GS,5621/GSI, 5622
Sea-Doo (Bombardier)
#oem кодцена
1
271000580
Tige Enrobee *rod-moulding Gsi 5622.
2
212100005
Nut-hexagonal Gsi 5622.
3
243041660
Screw-plastite Hex.unsl Gsi 5622.
4
277000153
Joint Rotule *ball Joint Gsi 5622.
5
207063560
Screw-hex.cap Din.931a2 Gsi 5622.
6
232561600
Nut-stop Elastic Din.985-a2 Gsi 5622.
7
234052600
Washer-flat Din.9021b-a2 Gsi 5622.
8
271000459
Boyau Protect. *hose-protect. Gsi 5622.
9
293650171
Bride Serrage *hose Clamp Gsi 5622.
10
293650051
Bride Serrage *clamp-tridon Gsi 5622.
11
278001605
Boitier Vts *vts Housing Includes 11 - 20. Gsi 5622.
12
278000222
Cosse Male *terminal-male Gsi 5622.
13
278000223
Cosse Femelle *terminal-femal Gsi 5622.
14
278000156
Bloc 6 Circ.fem*housing-tab Gsi 5622.
15
278000220
Bloc 2 Circ.mal*housing-tab(m) Gsi 5622.
16
278000218
Joint De Fil *seal-wire Gsi 5622.
17
278000230
Cosse Male *terminal-male Gsi 5622.
18
278001008
Etui Thermique *sheath-insulat Gsi 5622.
19
278001009
Cosse Femelle *terminal-femal Gsi 5622.
20
278001007
Etui Thermique *sheath-insulat Gsi 5622.
21
278001292
Moteur Vts.ass.*motor-vts.assy Includes 21 - 23. Gsi 5622.
22
278000231
Etui Thermique *sheath-insulat Gsi 5622.
25
234061600
Washer-flat Din.125a-a2 Gsi 5622.
26
278000428
Vis Sans Fin *screw-worm Gsi 5622.
27
278001698
Bloc Coulissant*slider Block Gsi 5622.
28
293200027
Joint Etanche *gasket Gsi 5622.
29
278000595
Couvercle Vts. *cover-vts. Gsi 5622.
30
292000250
Support Vts Ass*support-vts As Gsi 5622.
31
293830027
Rondelle Etanc.*washer-seal Gsi 5622.
32
211100020
Nut-special M27 Gsi 5622.
34
293900007
Douille Venturi*bushing-ventur Gsi 5622.
35
293550010
Graisse Synth. *grease-synth. Gsi 5622.
36
211000007
Screw Gsi 5622.
37
271000321
Douil.venturi*bushing-venturi Gsi 5622.
38
271000578
Bague Assiette *trimming Ring Gsi 5622.
39
211000089
Screw-socket Hd. Gsi 5622.
40
293800060
Loctite 243 *loctite-243 Gsi 5622.
41
293720015
Passe-fils *grommet Gsi 5622.
42
293800041
Appret Loctite *primer-loctite Gsi 5622.
43
293300044
Joint Torique *o-ring Gsi 5622.
