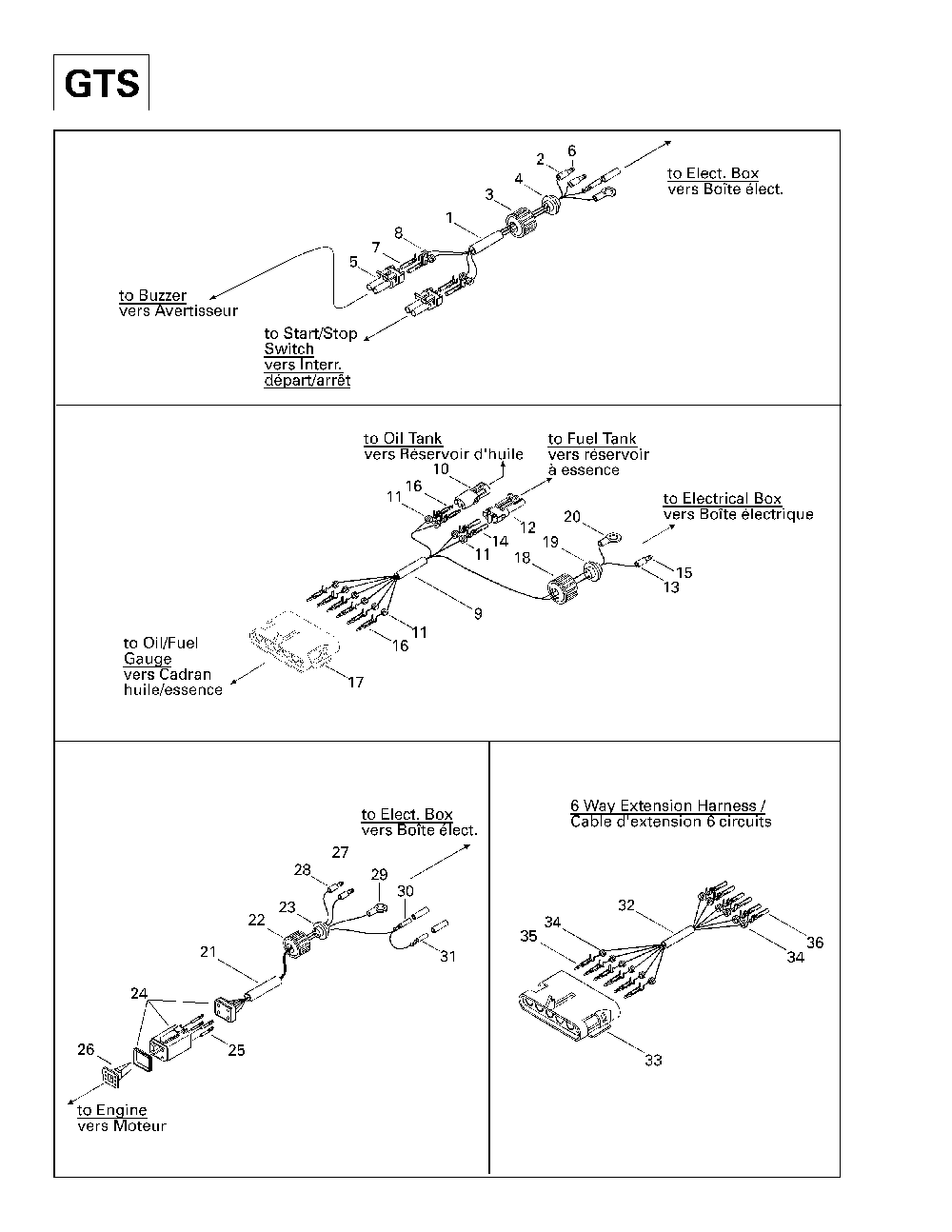

10- electrical harness (gts)

Sea-Doo (Bombardier) GTI, 5641
Sea-Doo (Bombardier)
#oem кодцена
1
278000420
Cablage Avert. *harness-buzzer Includes 1 - 8. Gts 5818.
2
278000231
Etui Thermique *sheath-insulat Gts 5818.
3
278000100
Bouchon Elect. *cap-elect.wire Gts 5818.
4
293720034
Passe-fils 4 T *grommet-4 Ways Gts 5818.
5
278000220
Bloc 2 Circ.mal*housing-tab(m) Gts 5818.
6
278000230
Cosse Male *terminal-male Gts 5818.
7
278000223
Cosse Femelle *terminal-femal Gts 5818.
8
278000218
Joint De Fil *seal-wire Gts 5818.
9
278000494
Cablage Jauge *harness-gauge Includes 9 - 20. Gts 5818.
10
278000217
Bloc 2 Circ.fem*housing-tab(f) Gts 5818.
16
278000222
Cosse Male *terminal-male Gts 5818.
17
278000156
Bloc 6 Circ.fem*housing-tab Gts 5818.
19
293720025
Passe-fils 2 T *grommet-2 Ways Gts 5818.
20
278000300
Cosse A Anneau *barrel-open Gts 5818.
21
278000472
Cablage Moteur *harness-engine Includes 21 - 31. Gts 5818.
24
278000739
Bloc 4 Circ.mal*housing-tab Gts 5818.
25
278000632
Cosse Femelle *terminal-femal Gts 5818.
26
278000738
Cale 4 Circ.mal*wedge-4 Ways M Gts 5818.
28
278001008
Etui Thermique *sheath-insulat Gts 5818.
30
278001009
Cosse Femelle *terminal-femal Gts 5818.
31
278000228
Cosse Femelle *terminal-femal Gts 5818.
32
278000495
Cablage 6 Circ.*harness-6 Ways Includes 32 - 36. Gts 5818.
