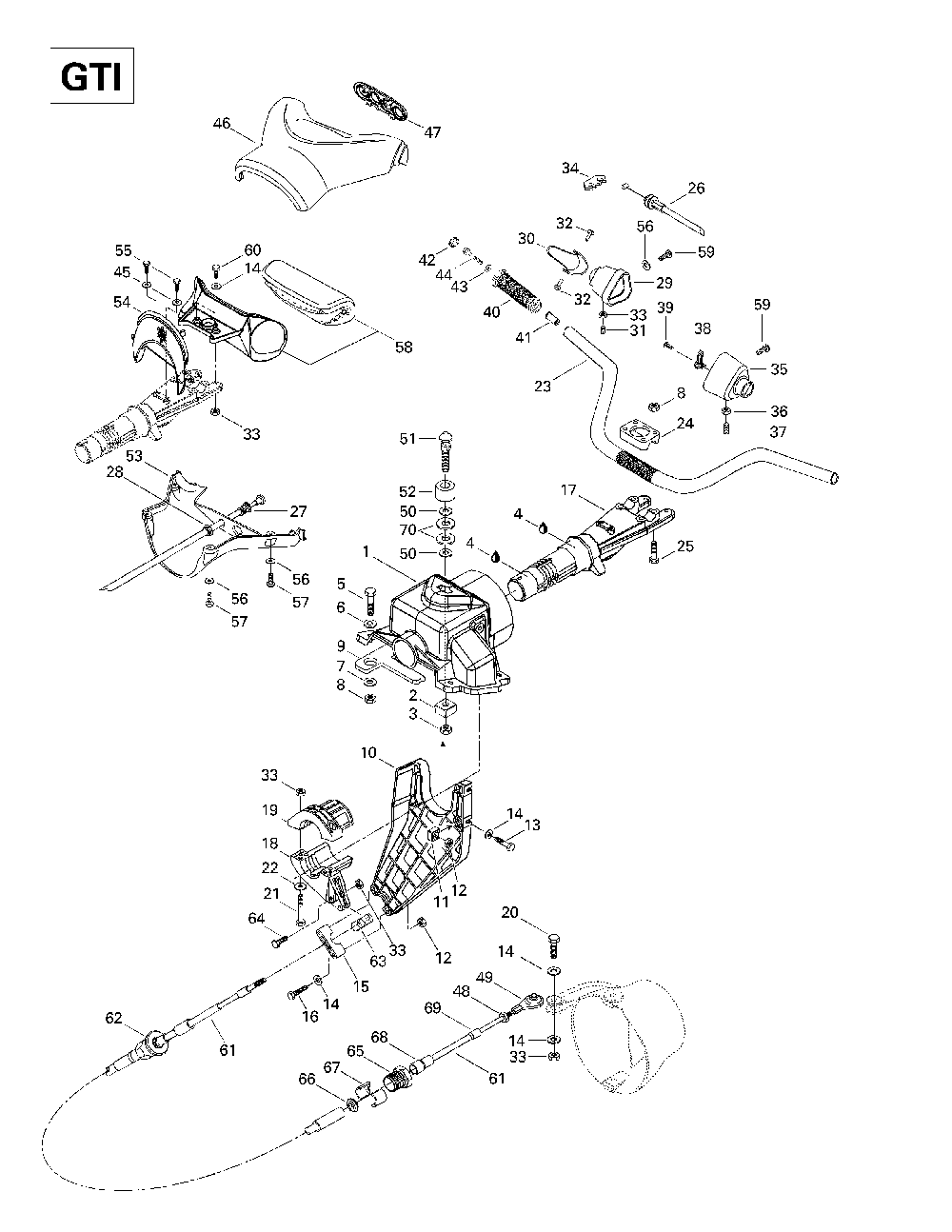

07- steering system (gti)

Sea-Doo (Bombardier) GTS, 5818
Sea-Doo (Bombardier)
#oem кодцена
1
277001471
Support Direct.*support-steer. Includes 1 - 3. Gti 5641.
2
271000598
Logement Ecrou *housing-nut Includes 2 - 3. Gti 5641.
3
232501600
Nut-stop Elastic Din.985a2 Gti 5641.
4
293550010
Graisse Synth. *grease-synth. Gti 5641.
5
207083560
Screw-hex.cap Din.931a2 Gti 5641.
6
234081600
Washer-flat Din.125a-a2 Gti 5641.
7
234082600
Washer-flat Din.9021b-a2 Gti 5641.
8
232581600
Nut-stop Elastic Din.985a2 Gti 5641.
9
293250171
Joint Etanche *gasket Gti 5641.
10
277000516
Support Cable *support-cable Includes 10 - 12. Gti 5641.
11
269500252
Logement Ecrou *housing-nut As Gti 5641.
12
232561600
Nut-stop Elastic Din.985-a2 Gti 5641.
13
207162060
Screw-hex.cap Din.933a2 Gti 5641.
14
234061600
Washer-flat Din.125a-a2 Gti 5641.
15
277000162
Palier Support *thrust Support Gti 5641.
16
207065060
Screw-hex.cap Din.931a2 Gti 5641.
17
277000562400
Tige Direction *stem-steering Gti 5641.
18
277001472
Support *support Gti 5641.
19
277001473
Palier Bras *thrust-arm Gti 5641.
20
207064060
Screw-hex.cap Din.931a2 Gti 5641.
21
207162560
Screw-hex.cap Din.933a2 Gti 5641.
22
234062600
Washer-flat Din.9021b-a2 Gti 5641.
23
277001450
Guidon *bar-handle Gti 5641.
23
295500691
Black Handle Grip Kit Gti 5641.
24
277000142
Bride Direction*steering Clamp Gti 5641.
25
207085060
Screw-hex.cap Din.931a2 Gti 5641.
26
277000614
Cable Accelerat*cable-throttle Gti 5641.
27
270000262
Cable Etrang. *cable-choke Includes 27 - 28. Gti 5641.
28
211100030
Nut-hexagonal Hi-lex Gti 5641.
29
232860600
Nut-square Thin M6 Din.562a2 Gti 5641.
29
250000036
Screw-socket Set M6x16 Ss304-a2 Gti 5641.
29
277000872
Log.man.acc. *housing-thrott Gti 5641.
30
277001485
Manette Acc. *throttle Handle Gti 5641.
31
206361260
Screw-set Socket Din.914a2 Gti 5641.
32
277000381
Goupille *pin Gti 5641.
34
277000279
Patte Verrouil.*lock-tab Gti 5641.
35
277000869
Log.gauche Ass.*housing-assy. Includes 35 - 37. Gti 5641.
38
277000219
Plaque Retenue *plate-retainer Gti 5641.
39
209631360
Screw-tapp.pan Hd.ph.din.7981c-a2 Gti 5641.
40
295500110
Black Handle Grip Kit Includes 40 - 44. Gti 5641.
42
277000203
Capuchon Gaine *cap-grip Black Gti 5641.
44
243164560
Screw-plastite Hex.wr.hd.unsl Gti 5641.
46
277000632
Couvre Guidon *cover-steering Gti 5641.
47
277001394
Plaque Guidon *plate-steering Gti 5641.
48
212100005
Nut-hexagonal Gti 5641.
49
277000153
Joint Rotule *ball Joint Gti 5641.
50
234002600
Washer-flat Din.9021b-a2 Gti 5641.
51
291000664
Ergot D Ancrage*stud-latch Gti 5641.
52
293830025
Tampon Caout. *pad-rubber Gti 5641.
53
277000633
Couvre Guidon *cover-stee.inf Gti 5641.
54
277000549
Plaque Mar.noir*plate-mar.blac Gti 5641.
55
211000036
Screw-forming Hex.hd. Gti 5641.
56
234051600
Washer-flat Din.125a-a2 Gti 5641.
57
241141660
Screw-pt.hex.flange K40 X 16 Gti 5641.
58
277000627
Tampon Guidon *pad-handle Gti 5641.
59
209630960
Screw-tapp.pan Hd.ph.din.7981c-a2 Gti 5641.
60
207063060
Screw-hex.cap Din.931a2 Gti 5641.
61
277000526
Cable Direction*cable-steering Includes 61 - 62. Gti 5641.
62
277000167
Bouton Ajust. *knob-ajust. Gti 5641.
63
277000646
Rotule *joint Gti 5641.
64
211000081
Screw-hex.cap Gti 5641.
65
277000052
Barrure Cable *lock-cable Gti 5641.
66
211100009
Rondelle Caout.*washer-rubber Gti 5641.
67
277000055
Demi-bague *half-ring Gti 5641.
68
277000473
Embout Grand *boot-large Gti 5641.
69
277000466
Embout Petit *boot-small Gti 5641.
70
291000628
Rondelle Caout.*washer-rubber Gti 5641.
